PVG 32 PVDI directional indicator

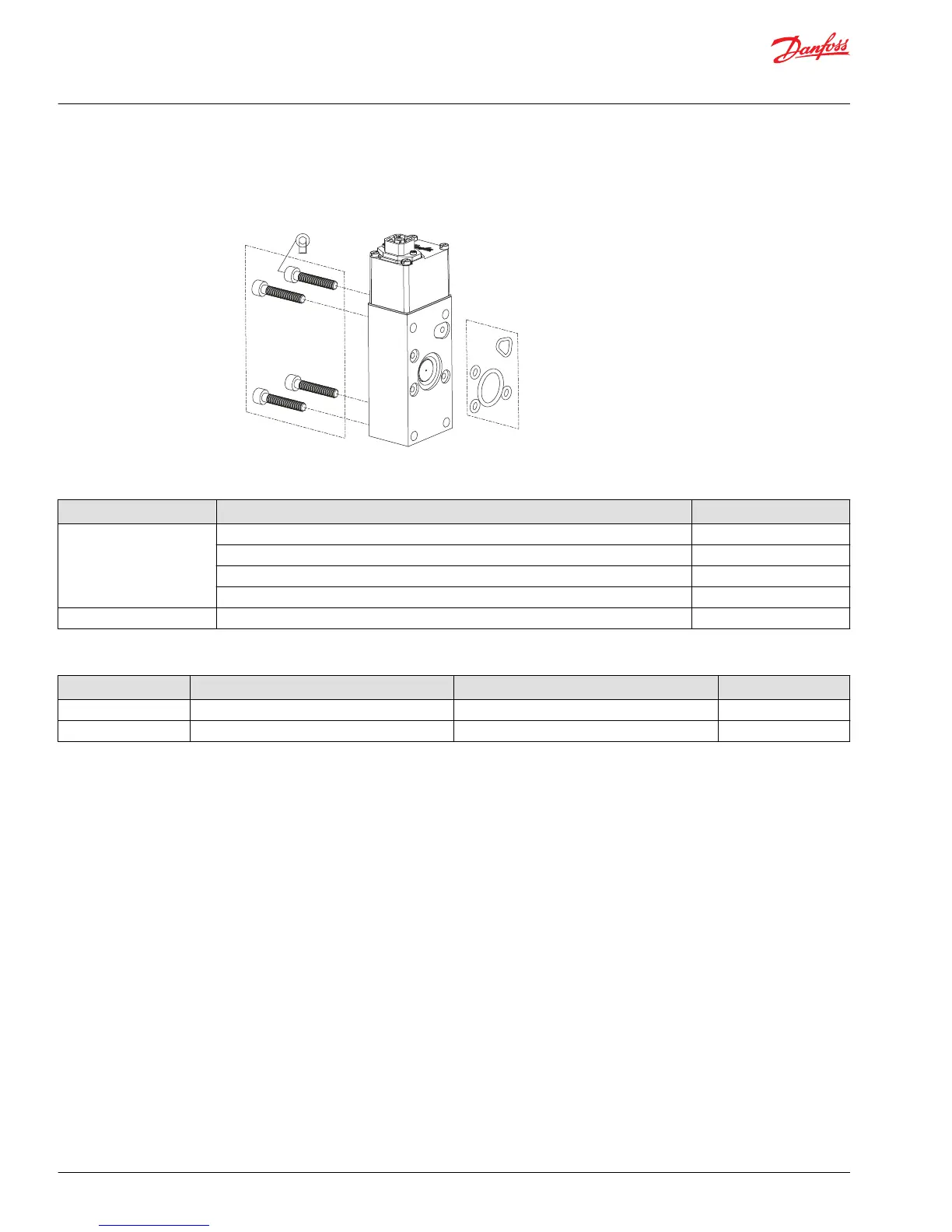

PVDI exploded view
1
2
5 [0.2]
8 ± 0.5 Nm
[70 ± 4.4 lbf in]
Direction indicator kits
Type Description Code number
PVDI Directional indicator - 1x4 DIN 157B0101
Directional indicator - 1x4 DIN 157B0102
Directional indicator - 1x4 DIN 157B0103
Directional indicator with two NO switches - 1x4 DIN 157B0105
PVDI-H (For PVH) Directional Indicator for hydraulic actuation – 1x4 DIN 157B0104
Parts list
Item Description Code number Amount
1 Screw - 4
2 Seal kit 157B0199 1
Service and Parts Manual
PVG 16/32/128/256
Service Parts
98 |
©
Danfoss | October 2018 AX284661889190en-000101
