VLT
®
FCD Series

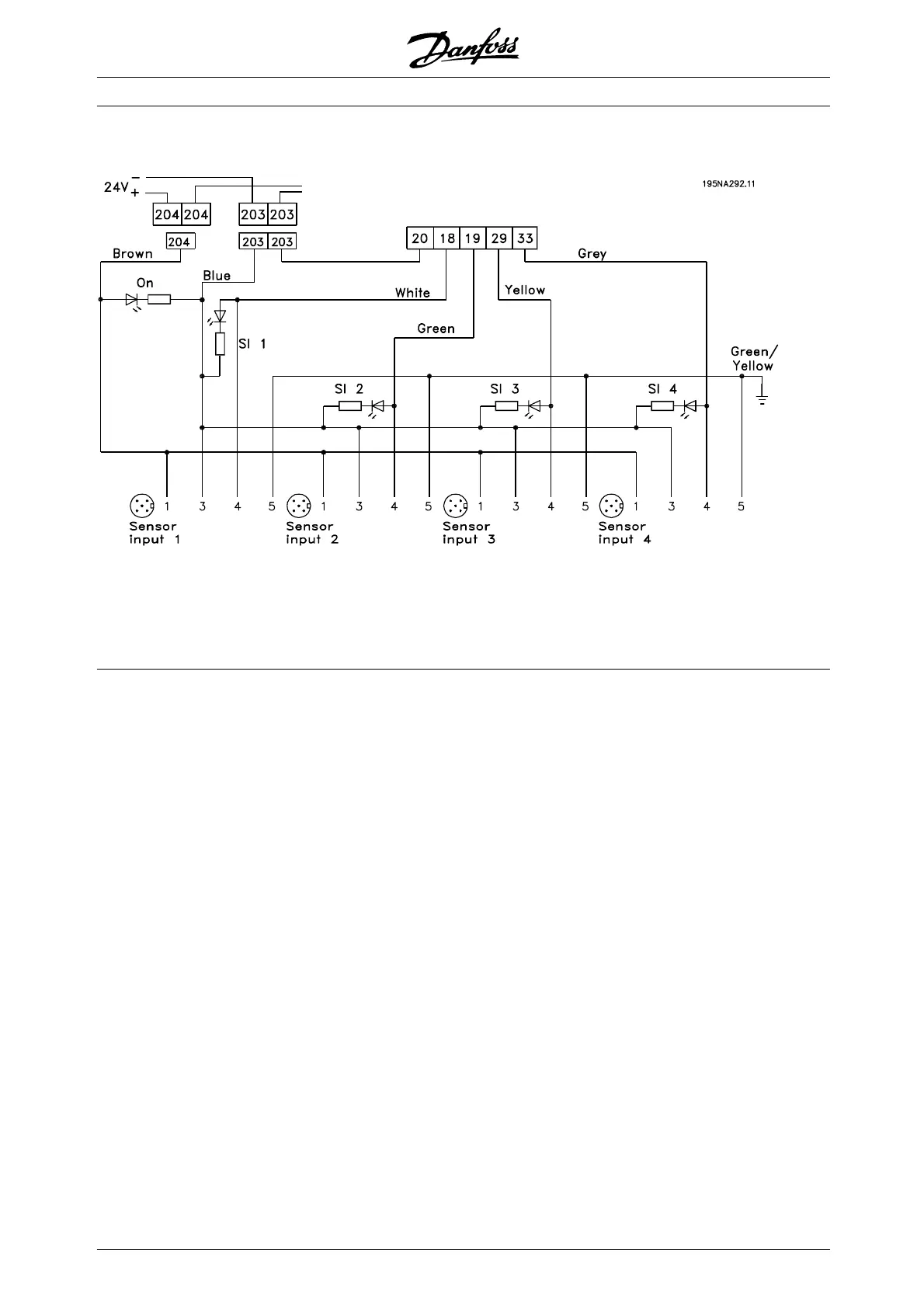

■ Connection of sensors to M12 plugs for
T53, T63, T73
For rating specifications see the Operating Instructions
MG.04.BX.YY, digital inputs terminals 18, 19, 29, 33.
Terminals 203/204 are used for sensor supply.
Terminal 203 = common
Terminal 204 = +24 V
Terminals 201/202 can be used for a
separate 24 V supply.
MG.04.B7.02 - VLT is a registered Danfoss trademark
