3.1.5 Topology
The PROFINET module features a built-in Ethernet-switch, thus having 2 Ethernet RJ45/M12 connectors. This enables the
possibility for connecting several PROFINET options in a line topology as an alternative to the traditional star-topology.
The 2 ports are equal, in the sense that they are transparent for the option, and thus it is free to select which of the 2 ports
to be used.

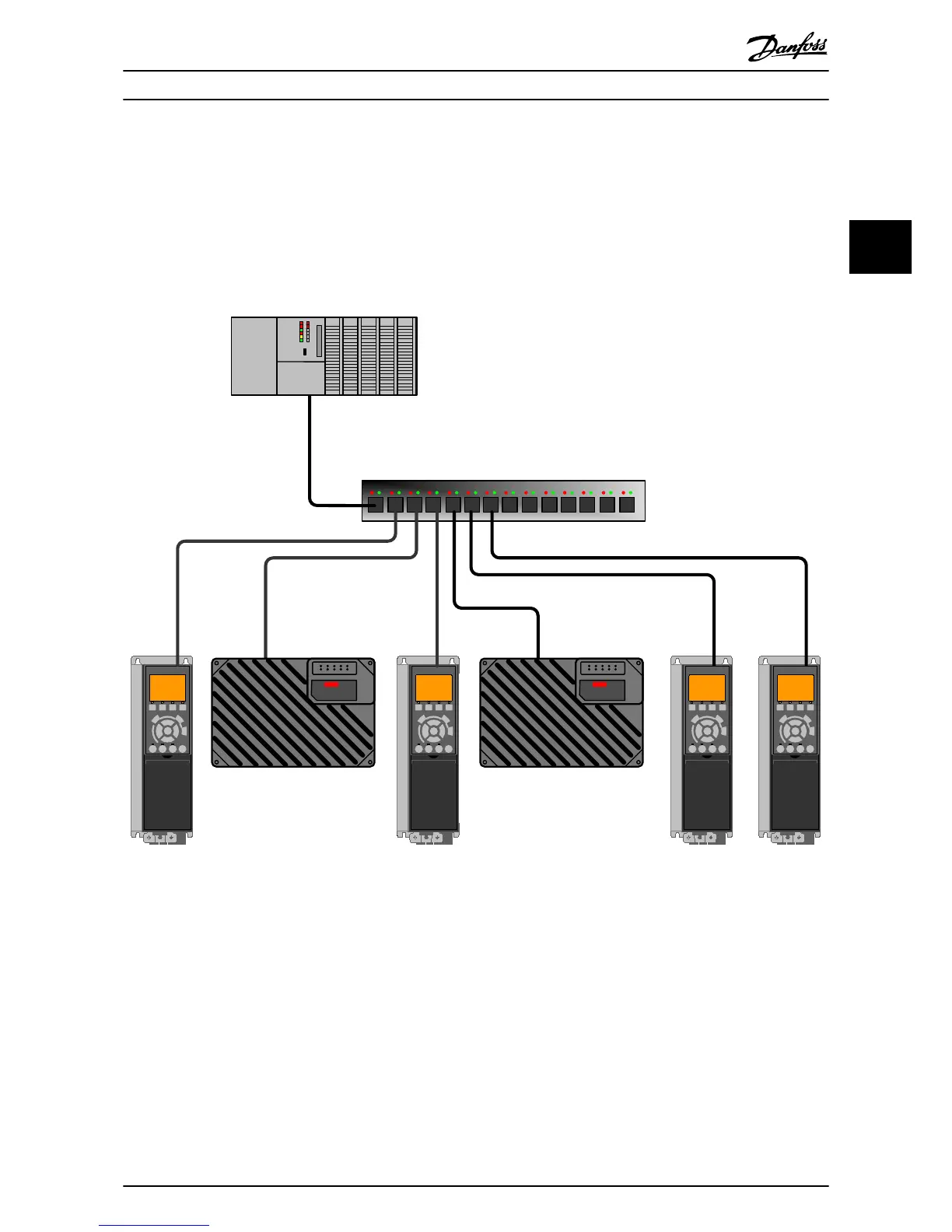

Star Topology
130BC929.10
Illustration 3.6 Star Topology
How to Install Operating Instructions
MG90U302 Danfoss A/S © Rev. 2014-02-27 All rights reserved. 11
3 3

Danfoss VLT PROFINET MCA 120 Specifications

General

Protection Class	IP20
Communication Protocol	PROFINET
Series	VLT
Ambient Temperature	0°C to 40°C
Storage Temperature	-25°C to 70°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m above sea level
