2.8 NETWORK CONNECTIONS
2.8.1 BC-8060 Network Connectors

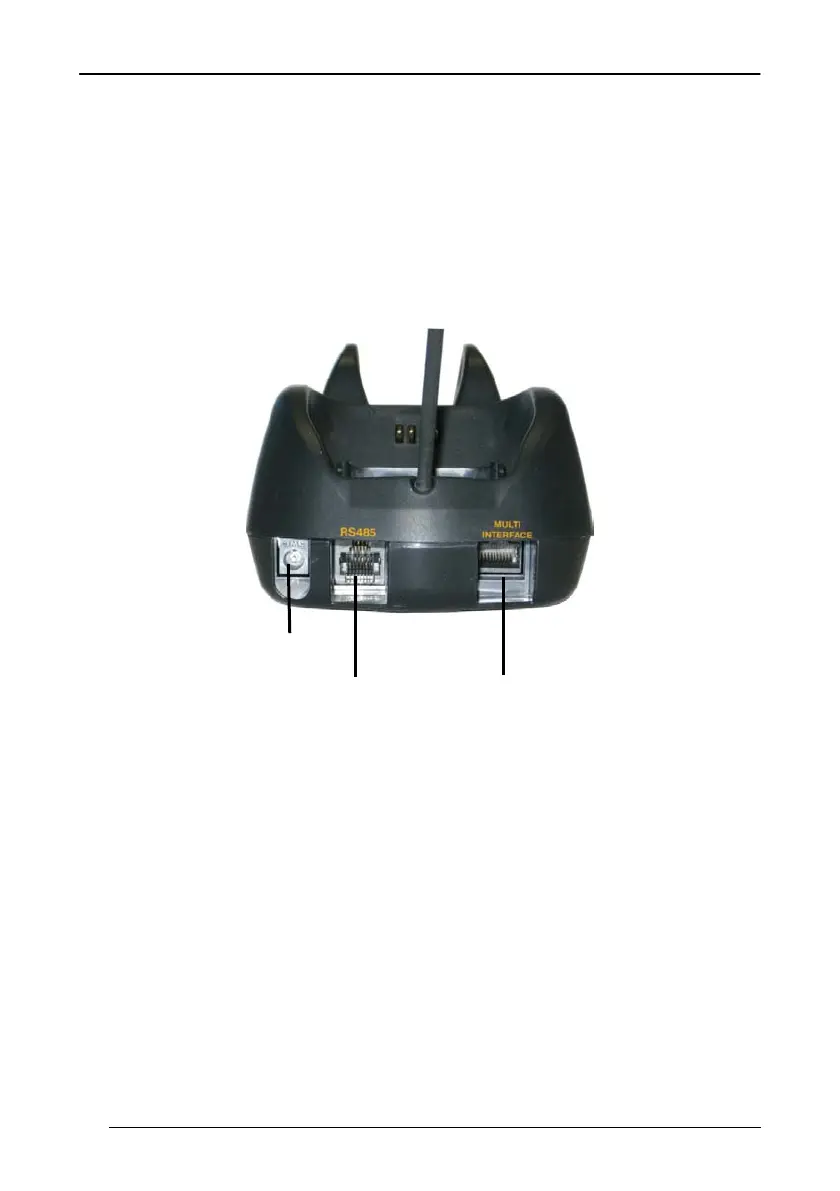

The multidrop network is a bus system which is propagated from one BC-8060 cradle
to another using individual cables. This is possible thanks to the RS-485 connector
on the front panel of the cradle.
All cradles are connected together within the bus system through the Datalogic
RS-485 splitter cable (CAB-428, part number 90A051950), which must be inserted in
the RS-485 cradle connector.
Obviously cable length is to be kept to a minimum as with all bus systems.
(BC-8060only)
RS-232, USB, Wedge,
PEN Emulation
