5.2.3 Overflow
This parameter generates a white space before the first bar and after the last bar of
the code. The selections are as follows:
narrow = space 10 times the minimum output pulse.
medium = space 20 times the minimum output pulse.
wide = space 30 times the minimum output pulse.
5.2.4 Output and Idle Levels

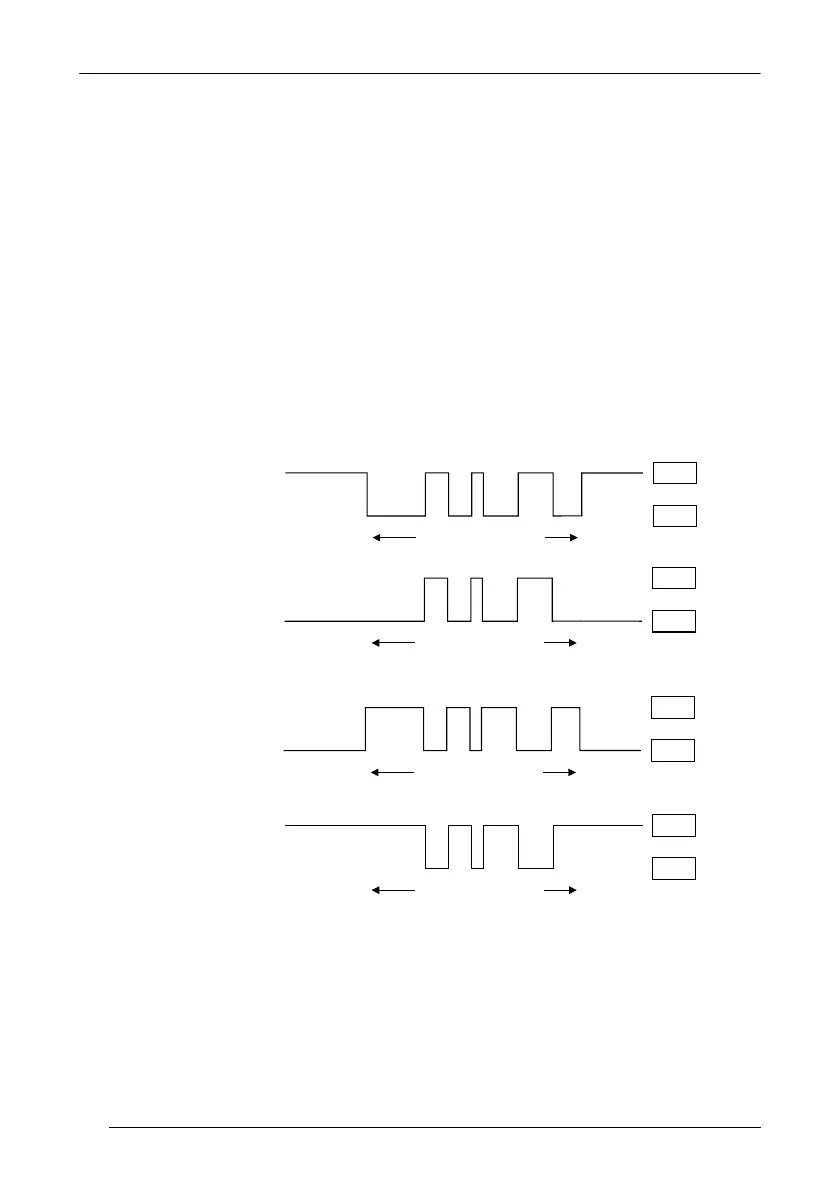

The following state diagrams describe the different output and idle level combinations
for Pen emulation:
bar
space
white
black
barcode output
idle
OUTPUT: Normal
IDLE: Normal
bar
space
white
black
barcode output
idle
OUTPUT: Normal
IDLE: Inverted
bar
space
white
black
barcode output
idle
IDLE: Normal
OUTPUT: Inverted
bar
space
white
black
barcode output
idle
IDLE: Inverted
OUTPUT: Inverted
Output and Idle Levels
