Connecting the Base Station
4QuickScan™ QBT2400
Connecting the Base Station
Figure 3 on page 5 shows how to connect the Base Station to
a terminal, PC or other host device. Turn off the host before
connection and consult the manual for that equipment (if
necessary) before proceeding. Connect the interface cable
before applying power to the Base Station.
Base Station Connection and Routing
1. Remove the rubber Cable Stopper from the bottom of
the Base Station.
2. Securely plug the Power Cable and Interface (I/F) Cable
connectors into their respective ports in the underside
of the Base Station.
3. After the cables are plugged in, reinsert the Cable Stop-
per.
NOTE
The QBT2400 reader can also be Powered by the
Terminal. When powered by the Terminal, the
battery charger is automatically set as Slow
charge.
For some specific interfaces or hosts or lengths
of cable, the use of an external power supply
may be recommended for full recharging capa-
bility (see
"Technical Specifications" on
page 31
for more details).

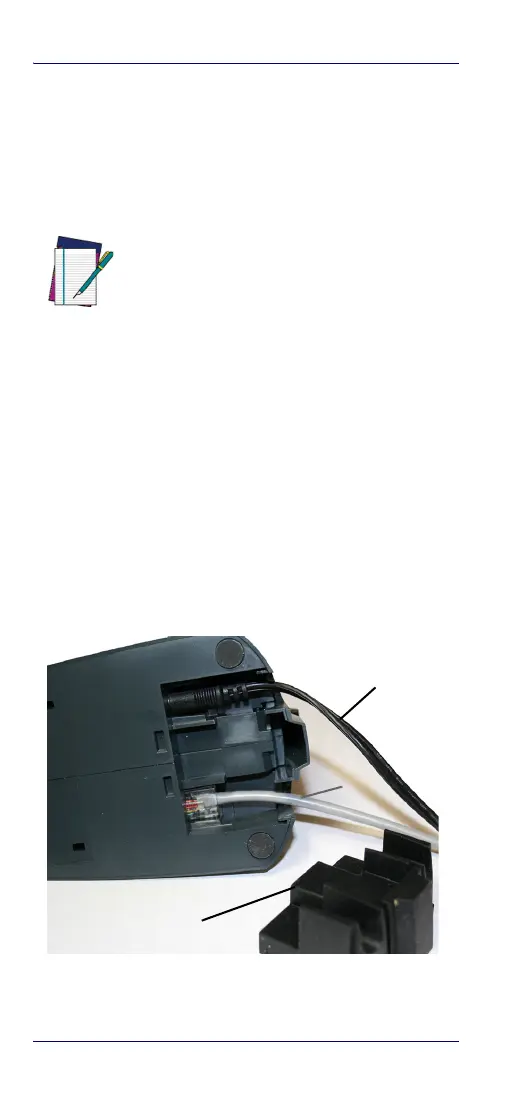

Cable Stopper
Power Cable
I/F Cable
