Replacing the Battery Pack

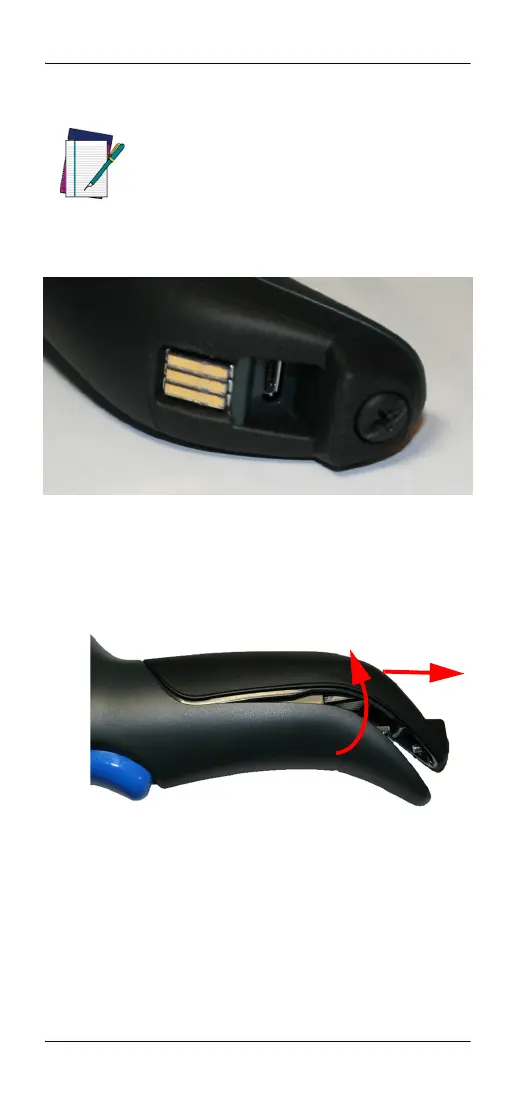

1. Using a coin or screwdriver, unscrew the bottom of the
battery pack until it is disengaged.
The battery pack will rise slightly in the rear, pushed by
the contact springs.
2. Extract the battery pack by slightly rotating the pack
and pulling away from the reader.
To mount the new battery pack reverse the process:
1. Insert the top of the new pack inside the reader’s han-
dle.
2. Rotate the battery pack downward while pressing the
bottom side of the battery pack (to seat securely into
the contacts springs) so that the edges of the pack and
the handle board are aligned, while replacing the screw
in the bottom of the handle.
NOTE
Before proceeding, read “Battery Safety” in
the Regulatory and Safety insert. Datalogic
recommends annual replacement of recharge-
able battery packs to ensure maximum perfor-
mance.
To Next Page
