Datalogic QuickScan QS2500 User Manual

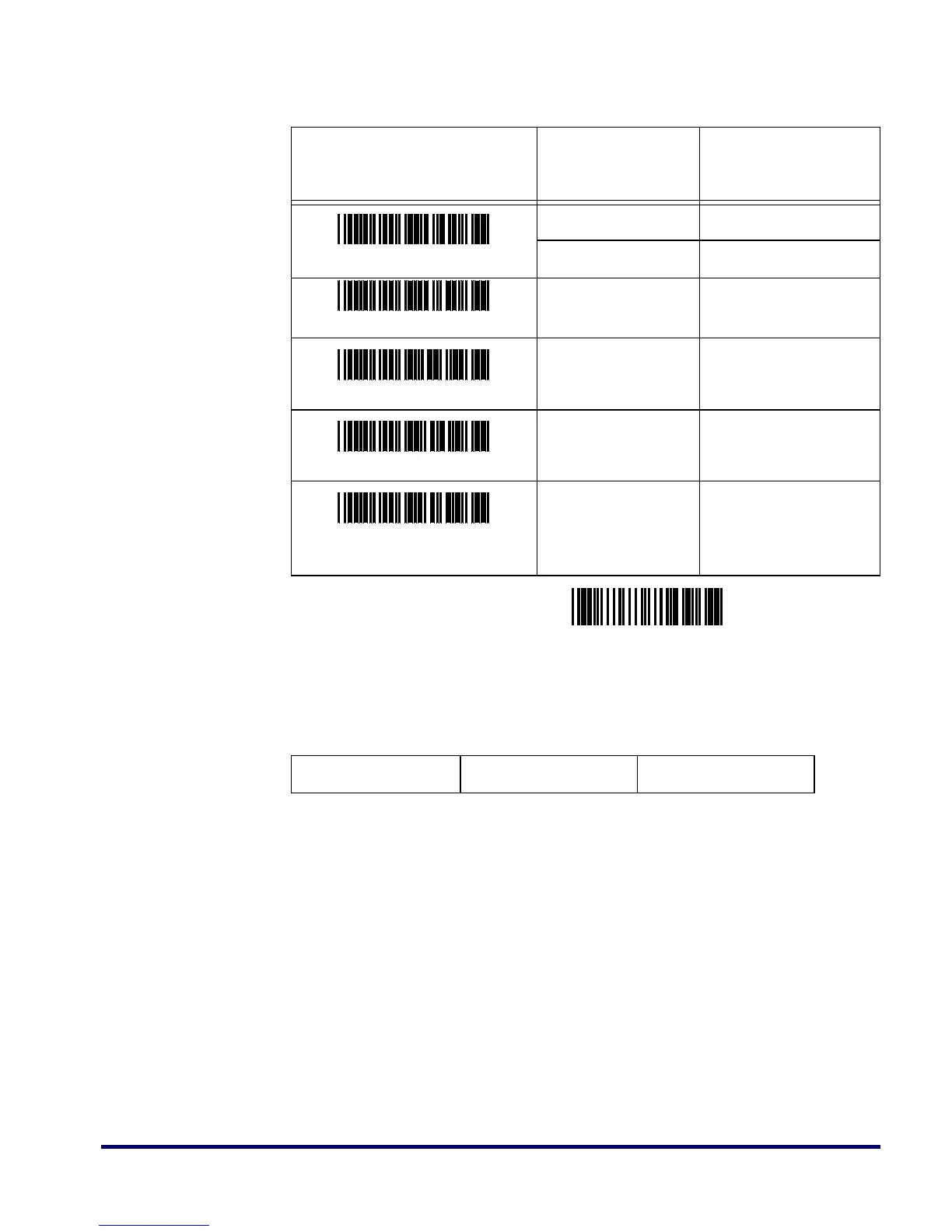

Product Reference Guide 49
MSI/Plessey
Read: Format:
Checksum Verification: The MSI/Plessey code has one or two optional
checksum digits. The checksums are calculated as the sum mod 10 or 11
of the data digits.
Checksum Transmission: When this option is enabled, the QS2500 will
transmit one-digit or two-digit checksums, depending upon the setting
for checksum verification.
Maximum/Minimum Code Length: Same as Code 39. See page 35.
Truncate Leading/Ending: Same as UPC-A. See page 27.
Code ID Setting: Same as UPC-A. See page 27.
Min. Code Length
Use Global Min. 00*
1–64 01–64
Truncate Leading
0–15 00–15
00*
Truncate Ending
0–15
00–15
00*
Code ID Setting
00–ff
hex
ASCII
code
00–ff
hex
<O>*
Insertion Group
Selection
0–44
00–44
00*
Option Bar Code Option
Alphanumeric
Entry
Exit
Data Digits (Variable) Checksum1 (Optional) Checksum2 (Optional)

Datalogic QuickScan QS2500 Specifications

General

Wavelength	660 nm
Maximum scan area	102/127 mm
Yaw reading angle	-75 - 75 °
Decoding standards	UPC A, E / EAN 8, 13 / JAN 8, 13, Code 128, Code 93, Pharmacode 39, Code 39, Codabar, Interleaved 2 - 5, Industrial 2 - 5, Matrix 2 - 5, GS1 DataBar, UK/Plessey, MSI/Plessey, Code 16K, Telepen, PDF-417, Code 11
Pitch reading angle	-60 - 60 °
Input voltage	5 V
Power consumption	250 mA
Dimensions (WxDxH)	74 x 114 x 185 mm
Certification	UL, cUL, FCC-A, EN 55022-B, VCCI-A, IEC 60825 Class 1 LED, EU RoHS
Product color	Gray
Storage temperature (T-T)	-30 - 65 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	179 g
