Dell Console Switch User Manual

Basic Operation 37

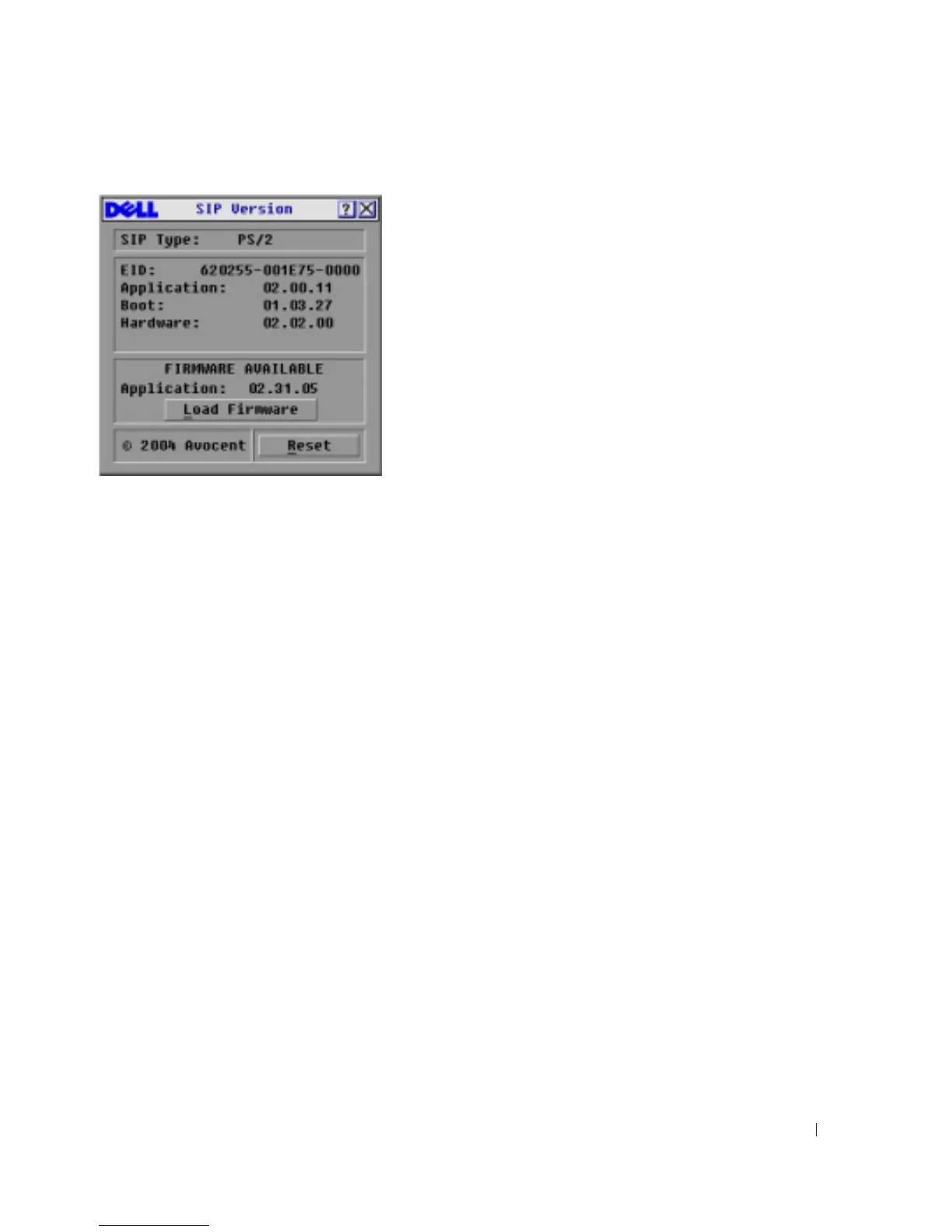

Figure 3-14. SIP Version Dialog Box
5
Click Reset . A warning message appears, warning that the function is for tiered switches only
and that resetting the SIP could result in the need to reboot the target server.
6 Click OK to proceed with the reset.
or
7 Press <ESC> to exit.
Resetting Your Keyboard and Mouse
If a keyboard or mouse locks up, you may be able to re-establish operation of these peripherals by
issuing a reset command.
To reset the mouse and keyboard values:
1 Press <Print Screen>. The Main dialog box appears.
2 Click Commands - Device Reset . A message box displays requesting that you confirm the
reset.
3 Click OK . A message appears indicating that the mouse and keyboard have been reset.
4 Click X to close the message box.

Dell Console Switch Specifications

General

Brand	Dell
Model	Console Switch
Category	Switch
Language	English
