Dell Console Switch User Manual

42 Basic Operation
www.dell.com | support.dell.com

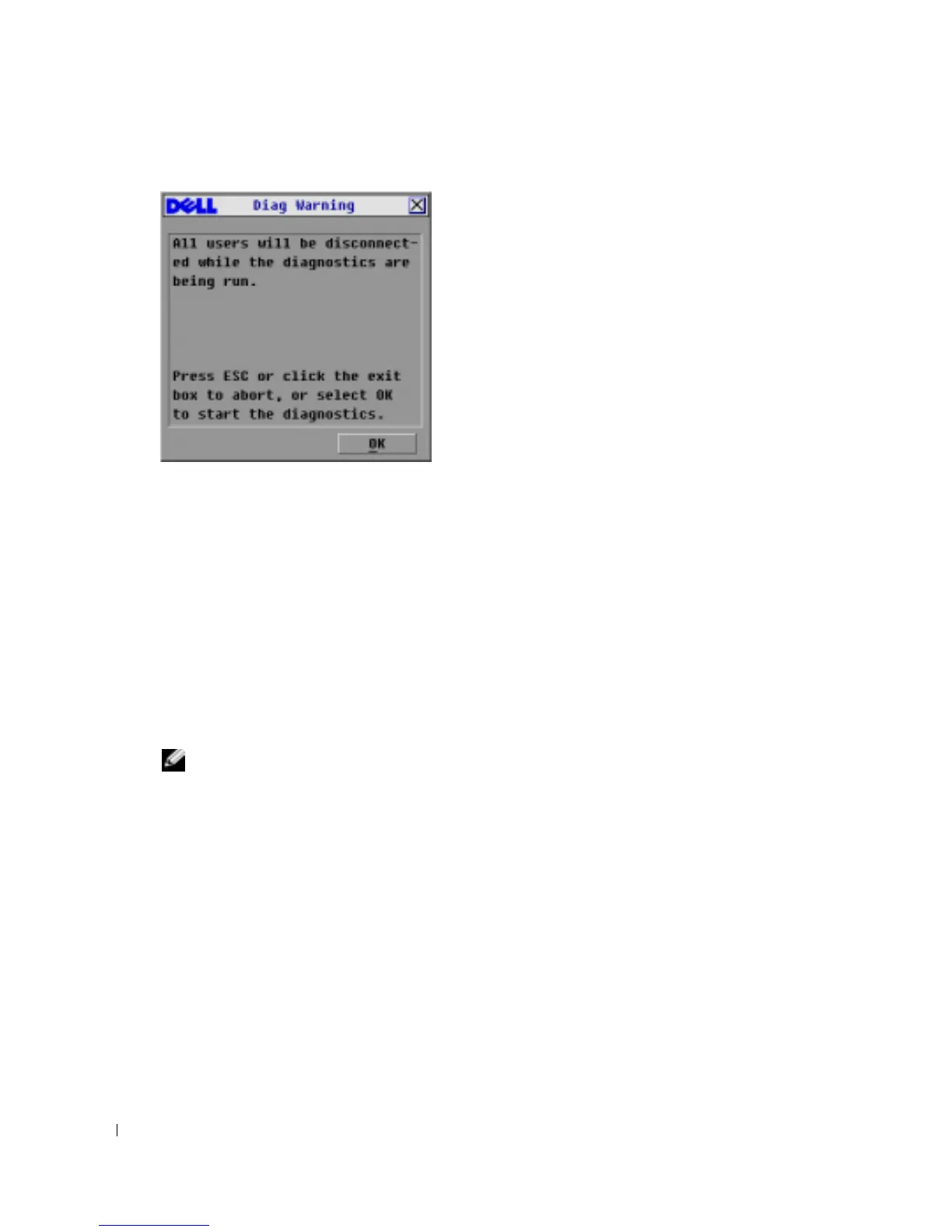

Figure 3-19. Diagnostics Warning Message Box
3
Click OK to begin diagnostics.
-or-
Click
X or press <Escape> to exit the dialog box without running a diagnostic test.
4 All users are disconnected and the Diagnostics dialog box displays.
5 As each test is finished, a pass (green circle) or fail (red x) symbol appears. The test is
complete when the last test’s symbol displays.
Broadcasting to Servers
The user can simultaneously control more than one server in a system to ensure that all selected
servers receive identical input. You can choose to broadcast keystrokes and/or mouse movements
independently.
NOTE: You can broadcast to up to 16 servers at a time, one server per ARI port.
To access the Broadcast dialog box:
1 Press <Print Screen> . The Main dialog box appears.
2 Click Setup - Broadcast . The Broadcast dialog box appears.
