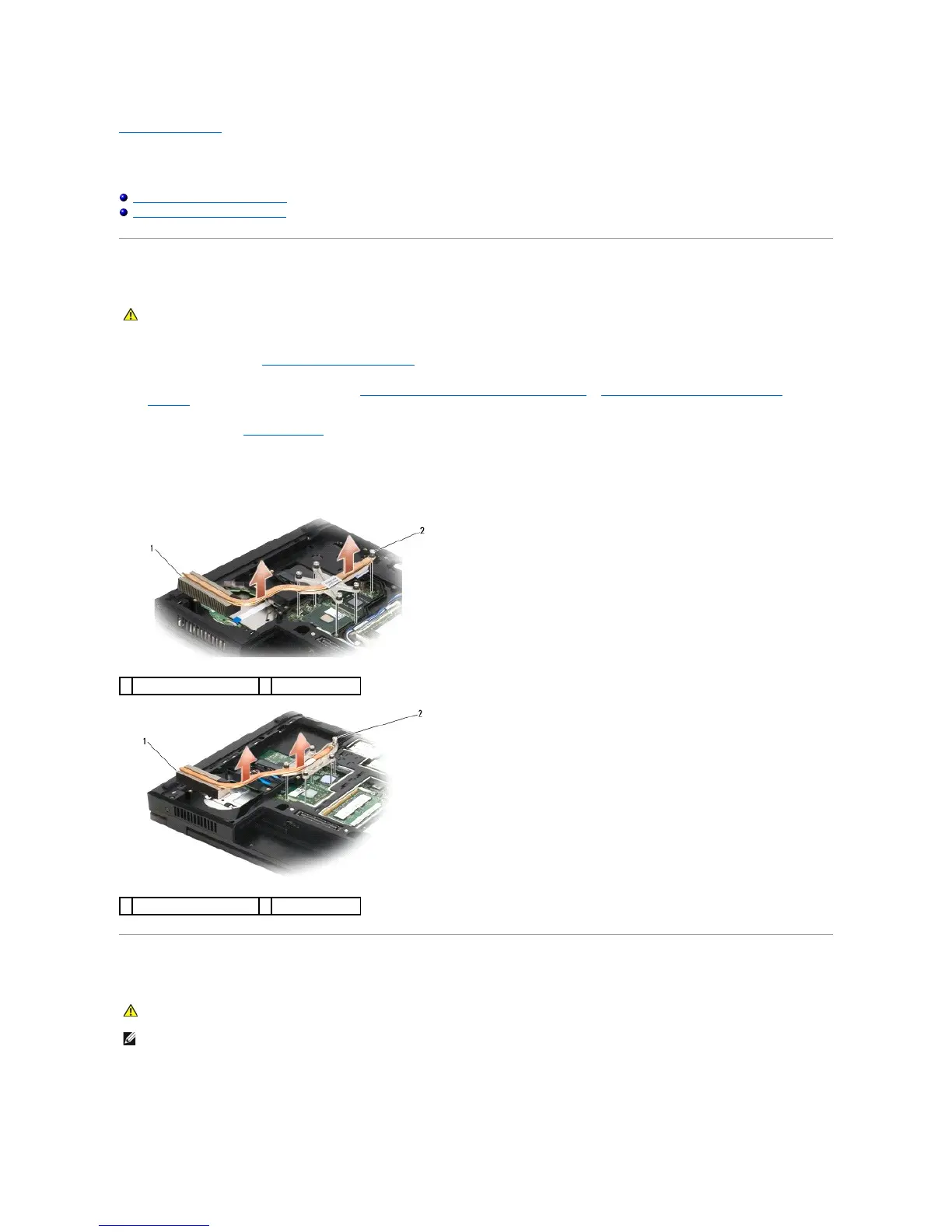

 Processor Heat Sink
Dell™Latitude™E5400andE5500ServiceManual
Removing the Processor Heat Sink
Replacing the Processor Heat Sink
Removing the Processor Heat Sink


1. Follow the instructions in Before Working on Your Computer.

2. Remove the bottom of the base assembly (see Removing the E5400 Bottom of the Base Assembly or Removing the E5500 Bottom of the Base
Assembly).

3. Remove the fan (see Removing the Fan).

4. In sequential order, loosen the four numbered captive screws that secure the processor heat sink to the system board.

5. Loosen the remaining captive screw that secures the processor heat sink to the system board and carefully lift it out of the computer.
Replacing the Processor Heat Sink


1. Line up and secure the processor heat sink with the screw closest to the front of the computer.

1. Align the five captive screws on the processor heat sink with the screw holes on the system board and secure the screws. Tighten the four numbered
CAUTION: Before you begin the following procedure, follow the safety instructions that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage on www.dell.com at: www.dell.com/regulatory_compliance.
1
E5400 processor heat sink
2
captive screws (5)
1
E5500 processor heat sink
2
captive screws (5)
CAUTION: Before you begin the following procedure, follow the safety instructions that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage on www.dell.com at: www.dell.com/regulatory_compliance.
NOTE: This procedure assumes that you have completed the removal procedure first.
