About this task

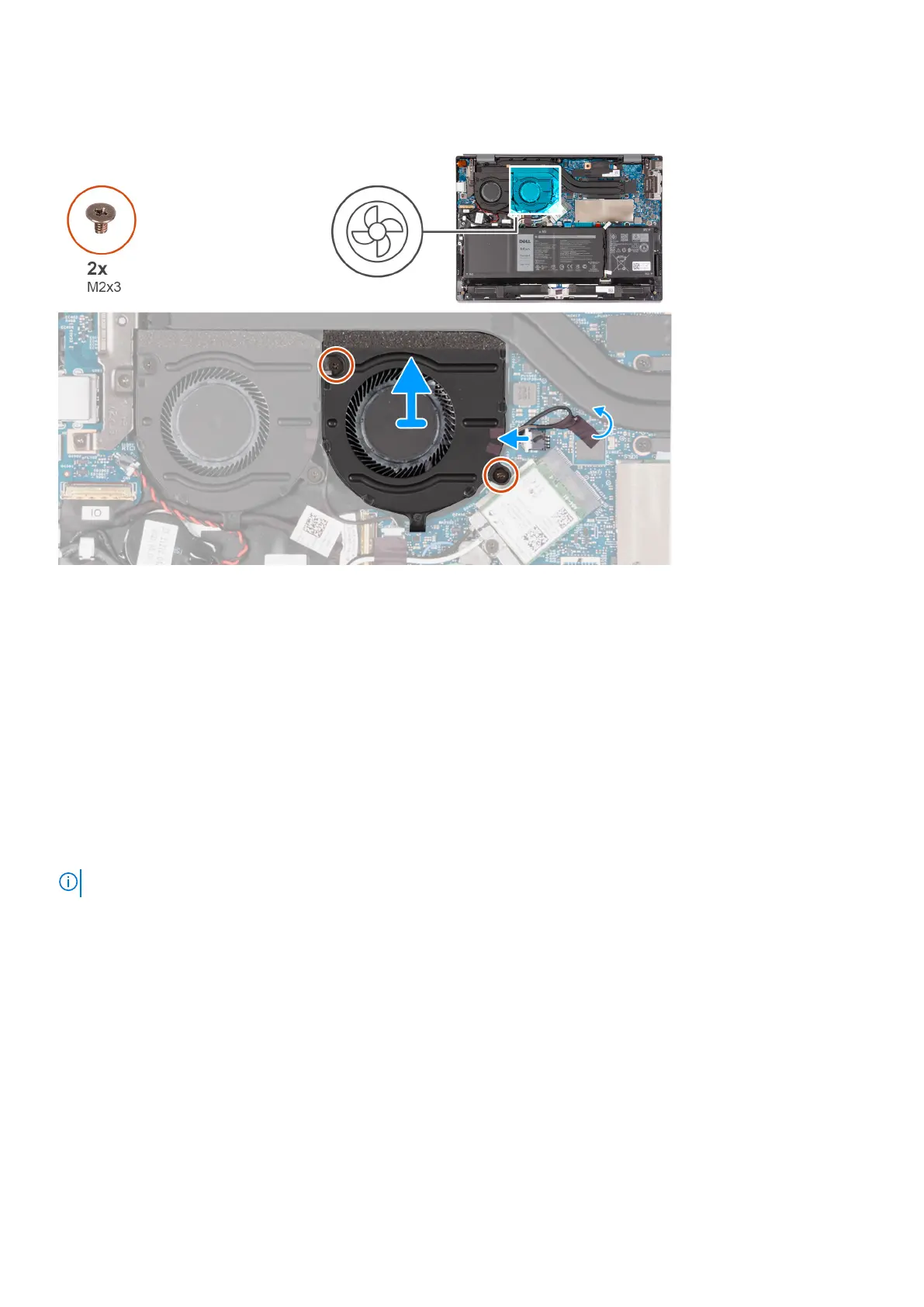

The following image(s) indicate the location of the right fan and provides a visual representation of the removal procedure.
Steps
1. Peel the tape that secures the right-fan cable (FAN1) to the system board.
2. Remove the two screws (M2x3) that secure the right fan to the palm-rest and keyboard assembly.
3. Disconnect the right-fan cable (FAN1) from the system board.
4. Lift the right fan off the palm-rest and keyboard assembly.
Installing the right fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: The left fan and right fan have the same specifications.
The following image(s) indicate the location of the right fan and provides a visual representation of the installation procedure.
24
Removing and installing components
To Next Page
