Steps

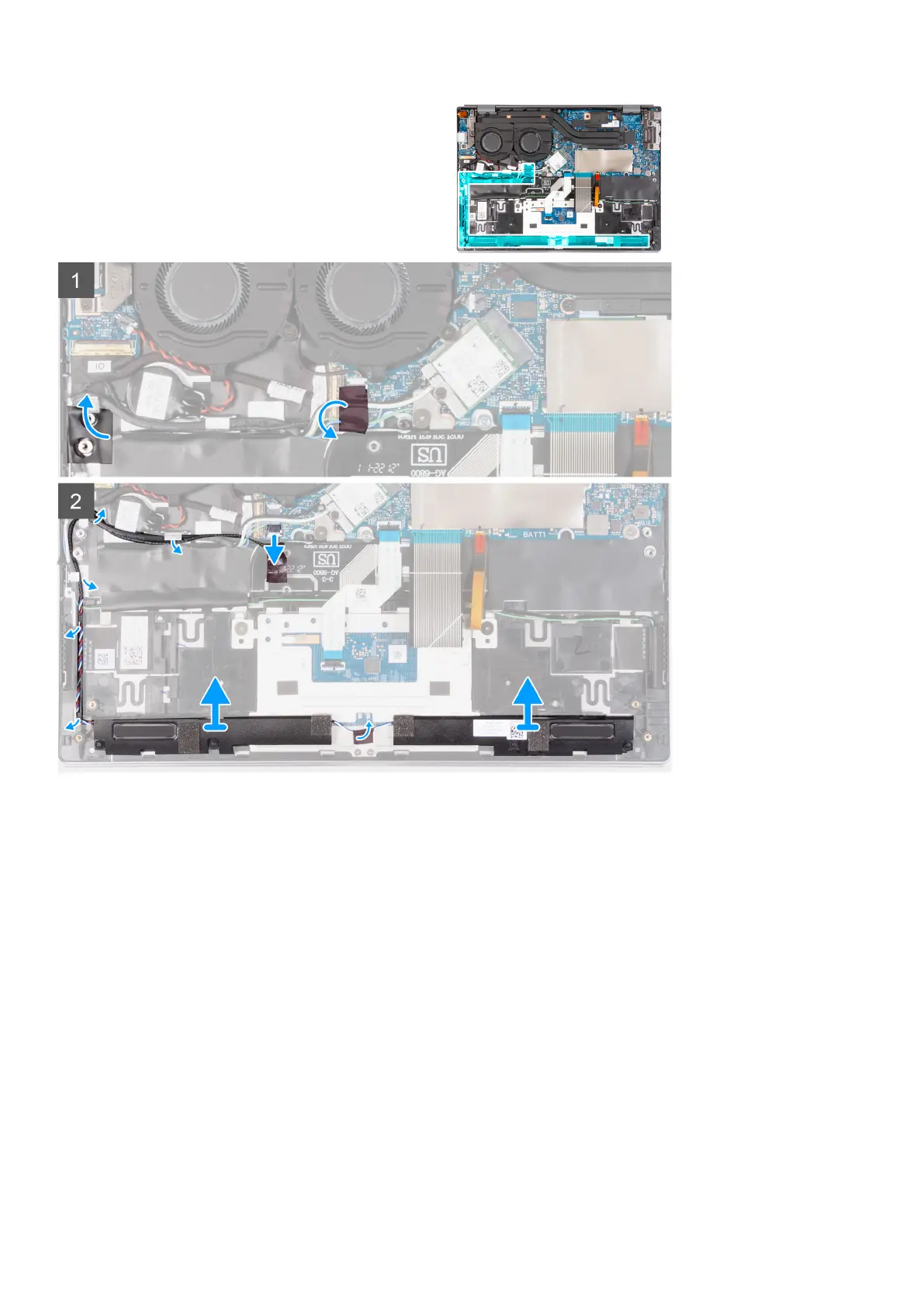

1. Peel the tape that secures the speaker cable to the system board.
2. Disconnect the speaker cable from the system board.
3. Peel the tape that secures the speaker cable to the palm-rest and keyboard assembly.
4. Remove the speaker cable from the routing guides on the palm-rest and keyboard assembly.
5. Lift the left and right speakers, along with their cable, off the palm-rest and keyboard assembly.
Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the speakers and provides a visual representation of the installation procedure.
26
Removing and installing components
