Steps

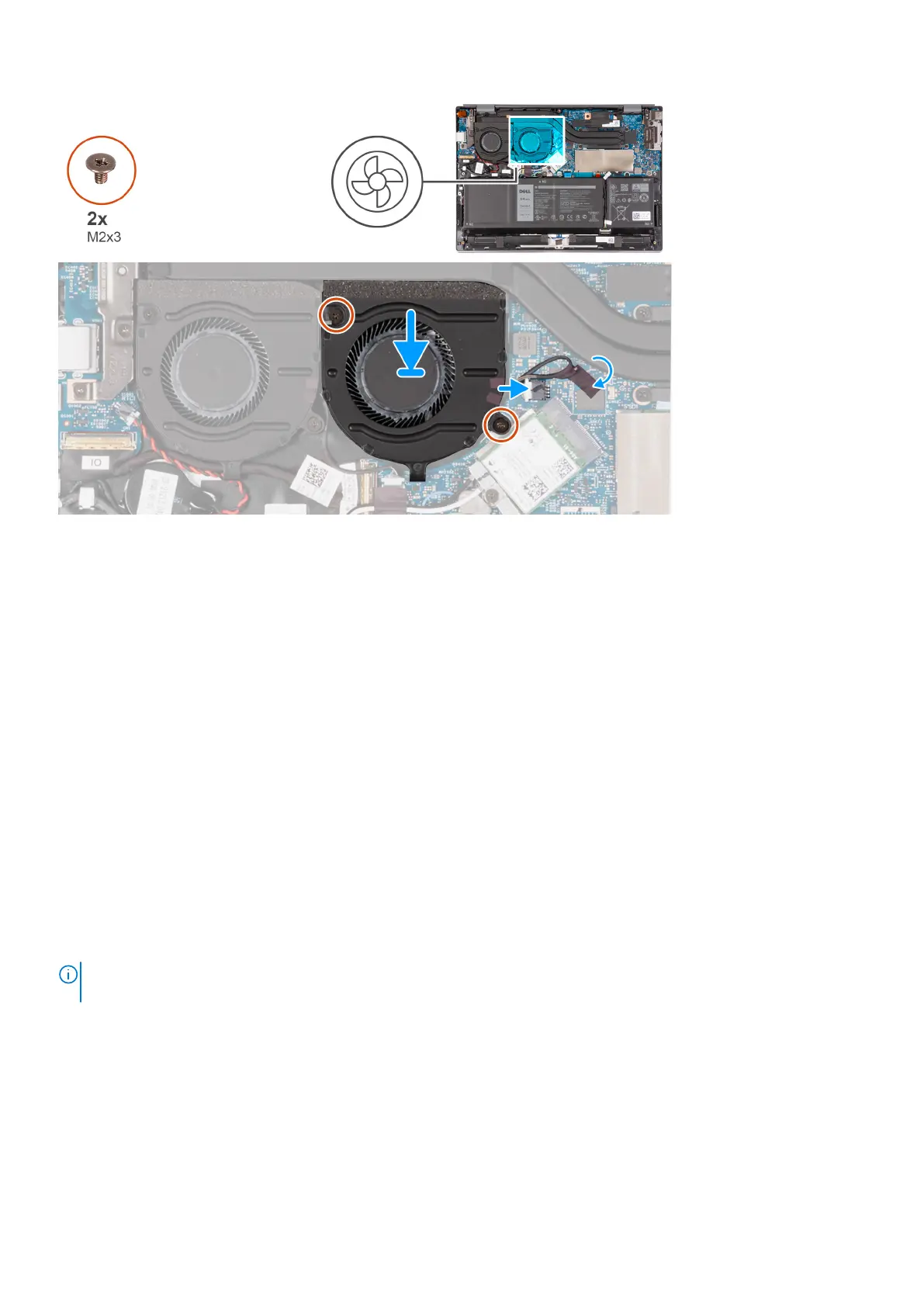

1. Align and place the right fan on the palm-rest and keyboard assembly.
2. Align the screw holes on the right fan with the screw holes on the palm-rest and keyboard assembly.
3. Replace the two screws (M2x3) that secure the right fan to the palm-rest and keyboard assembly.
4. Connect the right-fan cable (FAN1) to the system board.
5. Adhere the tape that secures the right-fan cable (FAN1) to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
NOTE:
Ensure that your computer is in Service Mode. For more information see, step 6 in Before working inside your
computer.
About this task
The following image(s) indicate the location of the speakers and provides a visual representation of the removal procedure.
Removing and installing components
25
