4. Remove the I/O board.
NOTE: Ensure that your computer is in Service Mode. For more information see, step 6 in Before working inside your
computer.
About this task

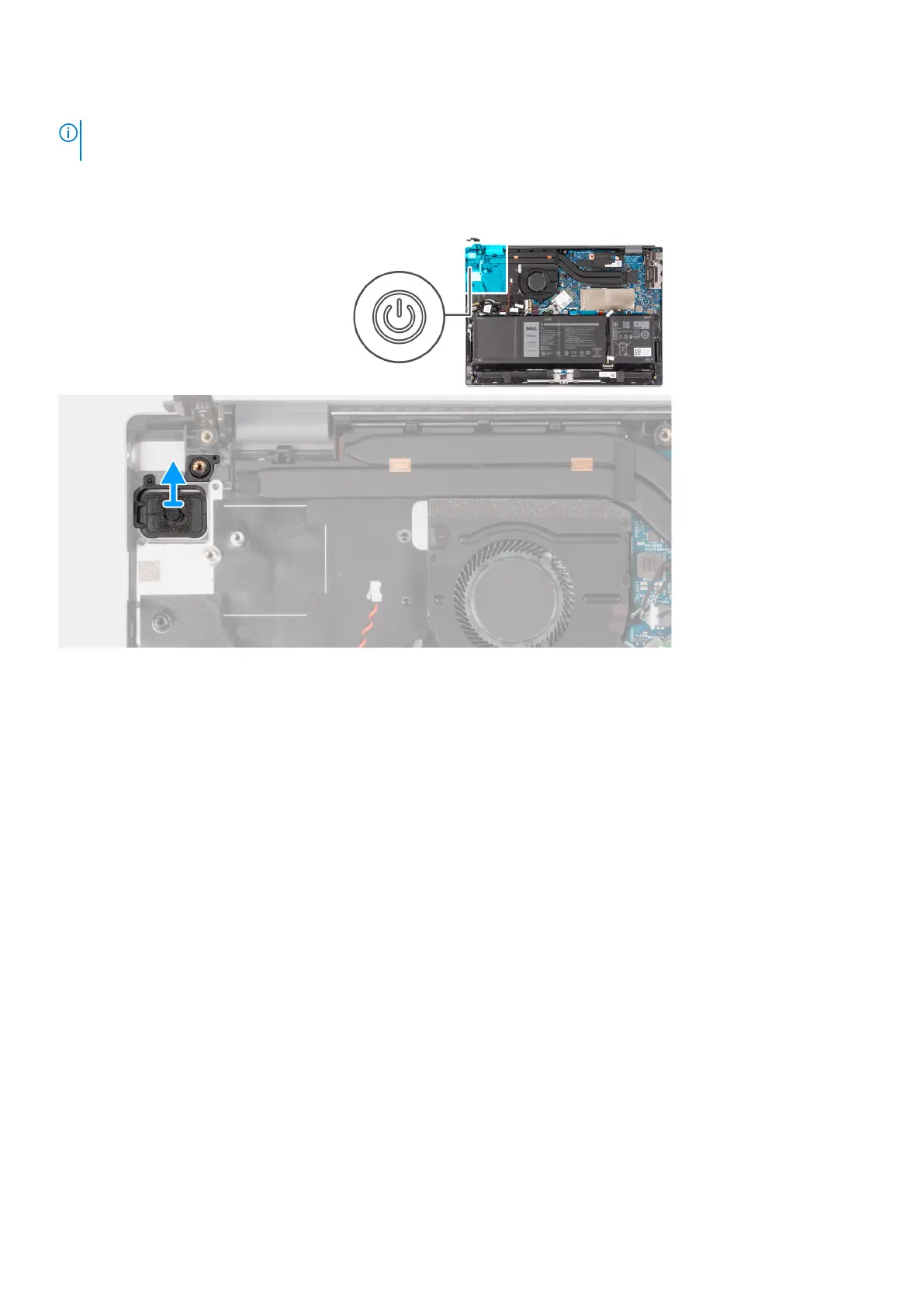

The following image(s) indicate the location of the power button and provides a visual representation of the removal procedure.
Lift the power button off the palm-rest and keyboard assembly.
Installing the power button
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the power button and provides a visual representation of the installation
procedure.
44
Removing and installing components
