Dell Inspiron 3502 User Manual

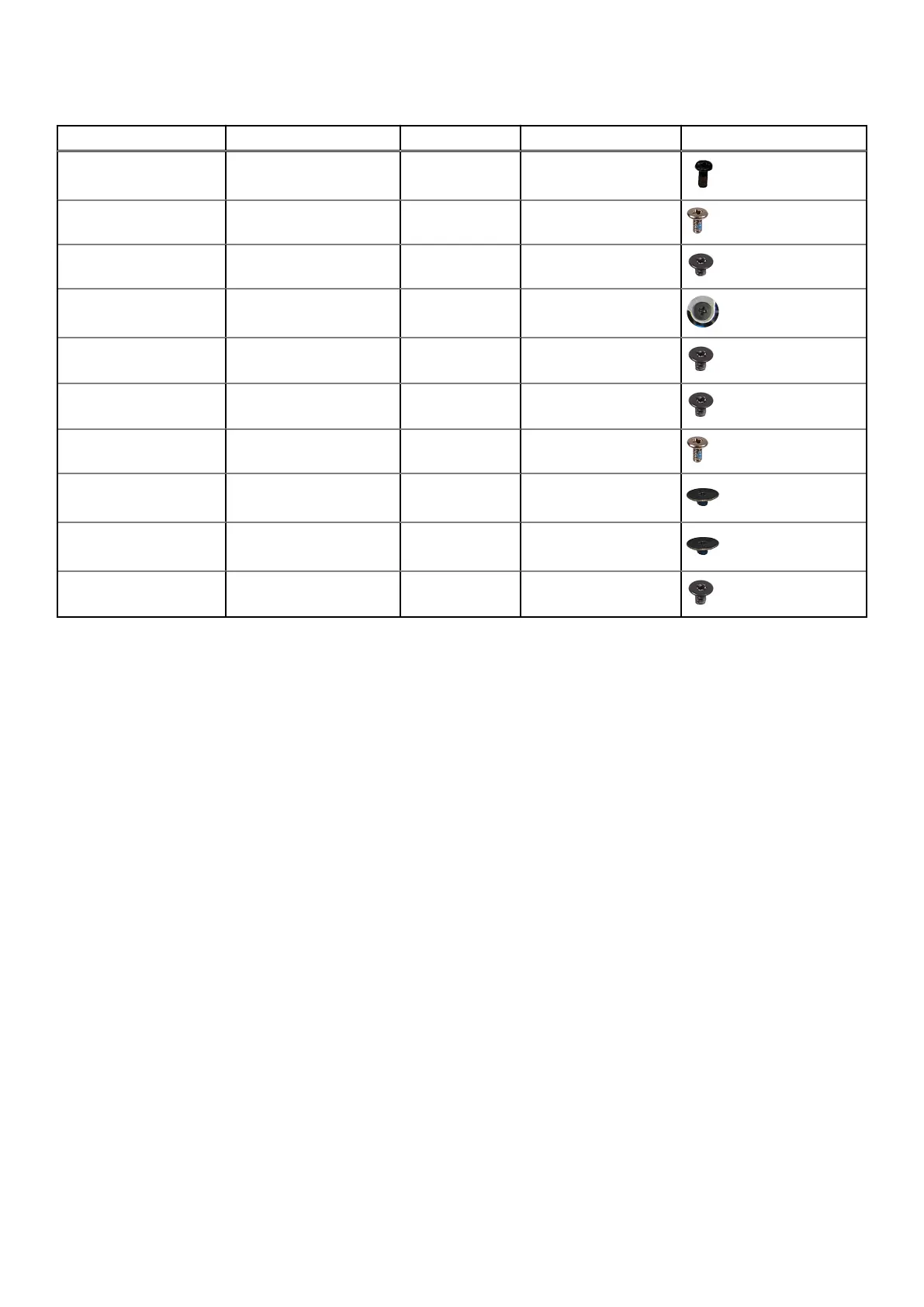

Table 1. Screw list (continued)
Component Secured to Screw type Quantity Screw image
Display hinges Palm-rest and keyboard
assembly
M2.5x6 6
I/O board Palm-rest and keyboard
assembly
M2x4 3
Power button Palm-rest and keyboard
assembly
M2x3 2
M.2 thermal shield Palm-rest and keyboard
assembly
Captive screw 1
M.2 thermal shield Palm-rest and keyboard
assembly
M2x2.2 1
M.2 2230 solid-state
drive
Palm-rest and keyboard
assembly
M2x2 1
System board Palm-rest and keyboard
assembly
M2x4 1
Touchpad Palm-rest and keyboard
assembly
M2x2 2
Touchpad bracket Palm-rest and keyboard
assembly
M2x2 3
Wireless-card bracket System board M2x3 1
Major components of Inspiron 3502
The following image shows the major components of Inspiron 3502.
10
Removing and installing components

Dell Inspiron 3502 Specifications

General

Graphics	Intel UHD Graphics 600
Operating System	Windows 10 Home
Battery	3-cell, 42 WHr
Processor	Intel Celeron N4020
RAM	4GB DDR4
Storage	256GB SSD
Weight	1.83 kg
Ports	1 x USB 2.0, 2 x USB 3.2 Gen 1, 1 x HDMI 1.4, 1 x SD card reader, 1 x headphone/microphone combo
Wireless	802.11ac
Dimensions	364 x 249 x 20 mm (14.33 x 9.80 x 0.79 inches)
Display	15.6-inch HD (1366 x 768) / 15.6-inch FHD (1920 x 1080)
