Dell Inspiron 3502 User Manual

Steps

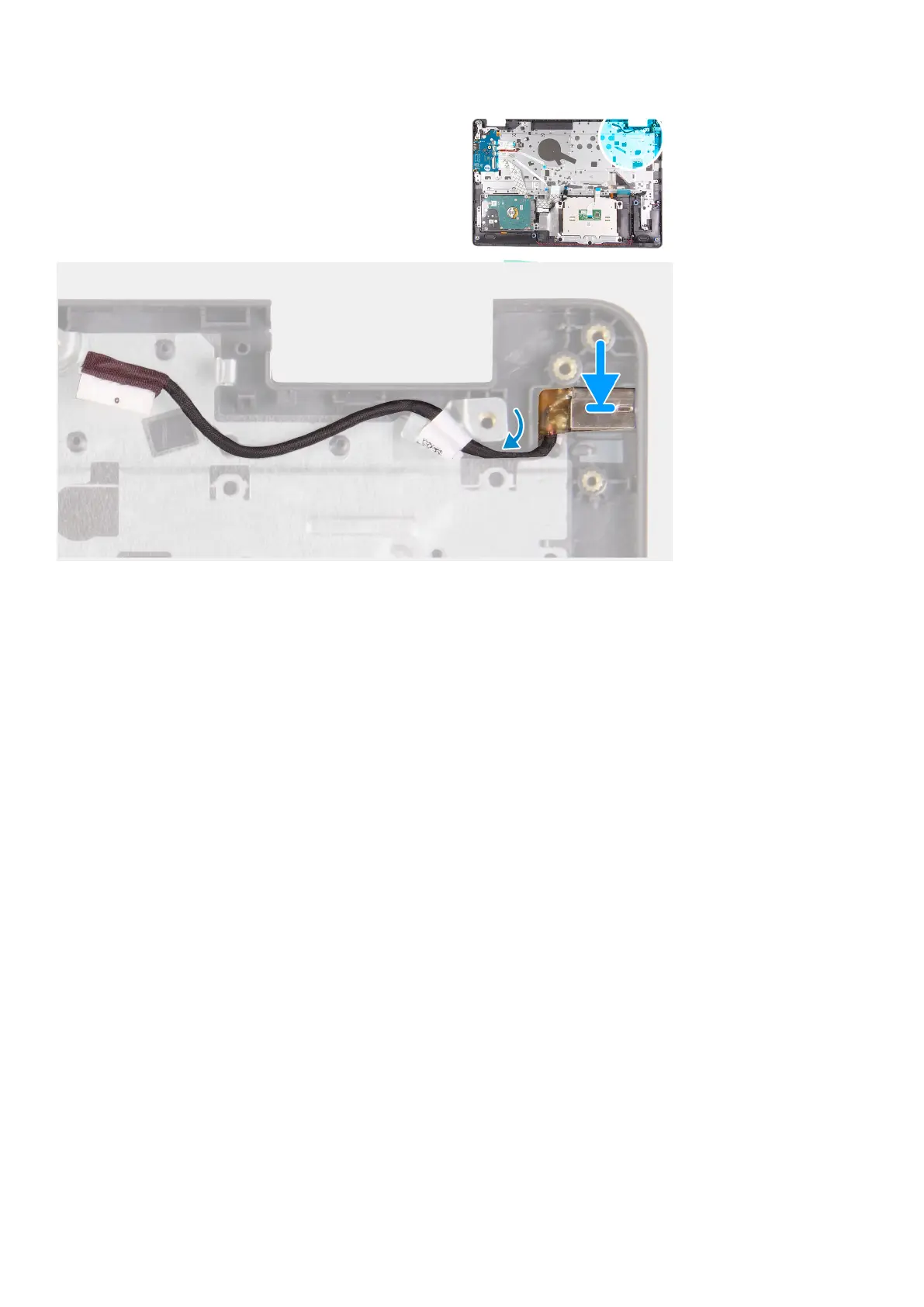

Place the power-adapter port into its slot on the palm-rest and keyboard assembly.
Next steps
1. Install the system board.
2. Install the display assembly.
3. Install the wireless card.
4. Install the M.2 2230 solid-state drive, if applicable.
5. Install the M.2 2280 solid-state drive, if applicable.
6. Install the base cover.
7. Follow the procedure in After working inside your computer.
Palm-rest and keyboard assembly
Removing the palm-rest and keyboard assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the M.2 2230 solid-state drive, if applicable.
4. Remove the M.2 2280 solid-state drive, if applicable.
5. Remove the hard drive.
6. Remove the wireless card.
7. Remove the display assembly.
8. Remove the fingerprint-reader board.
9. Remove the touchpad.
10. Remove the speakers.
11. Remove the I/O board.
60
Removing and installing components

Dell Inspiron 3502 Specifications

General

Graphics	Intel UHD Graphics 600
Operating System	Windows 10 Home
Battery	3-cell, 42 WHr
Processor	Intel Celeron N4020
RAM	4GB DDR4
Storage	256GB SSD
Weight	1.83 kg
Ports	1 x USB 2.0, 2 x USB 3.2 Gen 1, 1 x HDMI 1.4, 1 x SD card reader, 1 x headphone/microphone combo
Wireless	802.11ac
Dimensions	364 x 249 x 20 mm (14.33 x 9.80 x 0.79 inches)
Display	15.6-inch HD (1366 x 768) / 15.6-inch FHD (1920 x 1080)
