Dell Inspiron 3502 User Manual

Steps

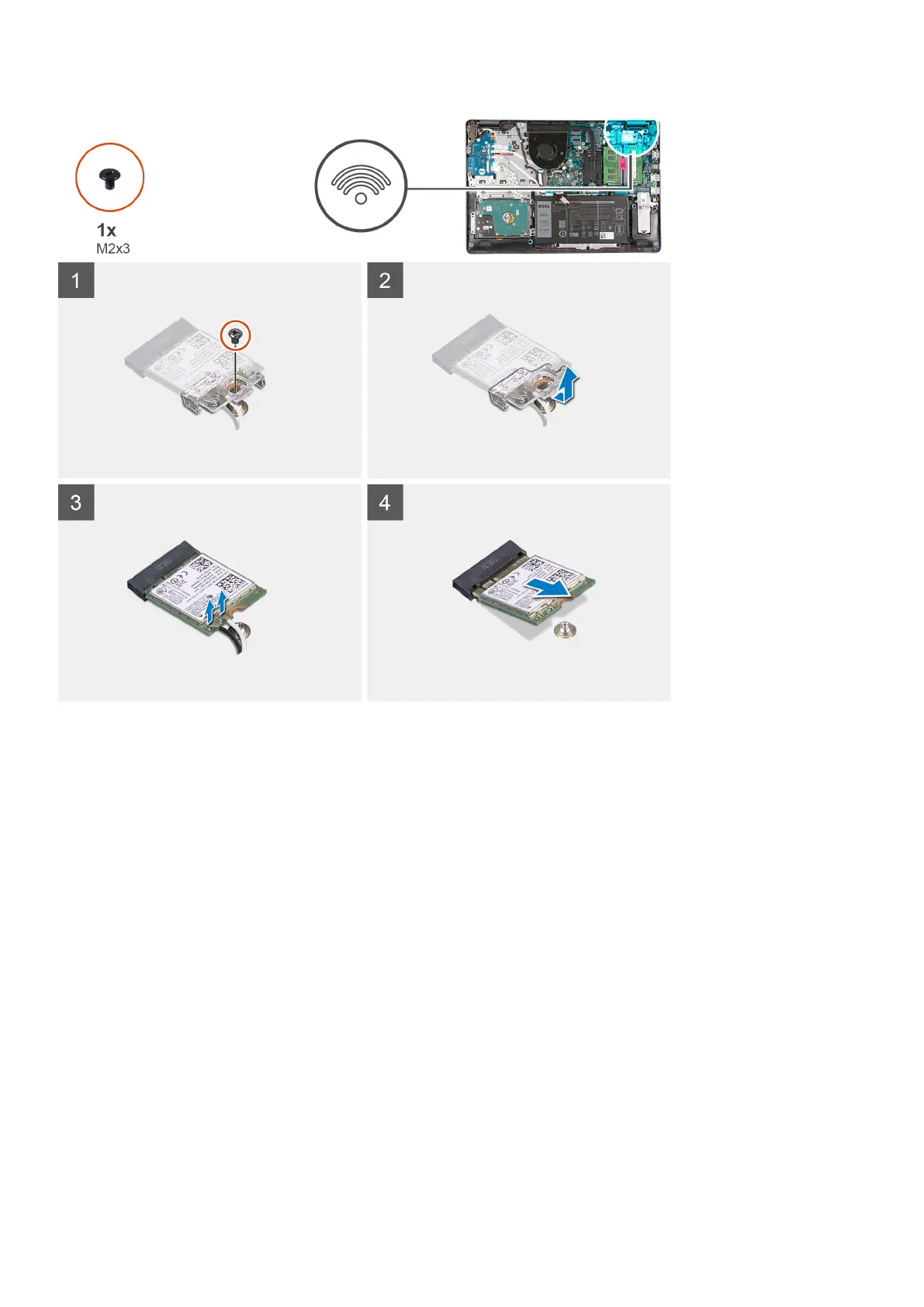

1. Remove the screw (M2x3) that secures the wireless-card bracket to the system board.
2. Lift the wireless-card bracket off the system board.
3. Disconnect the antenna cables from the wireless card.
4. Slide and remove the wireless card from the M.2 card slot on the system board.
Installing the wireless card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the wireless card and provides a visual representation of the installation procedure.
Removing and installing components
23

Dell Inspiron 3502 Specifications

General

Graphics	Intel UHD Graphics 600
Operating System	Windows 10 Home
Battery	3-cell, 42 WHr
Processor	Intel Celeron N4020
RAM	4GB DDR4
Storage	256GB SSD
Weight	1.83 kg
Ports	1 x USB 2.0, 2 x USB 3.2 Gen 1, 1 x HDMI 1.4, 1 x SD card reader, 1 x headphone/microphone combo
Wireless	802.11ac
Dimensions	364 x 249 x 20 mm (14.33 x 9.80 x 0.79 inches)
Display	15.6-inch HD (1366 x 768) / 15.6-inch FHD (1920 x 1080)
