Dell Inspiron 3502 User Manual

Steps

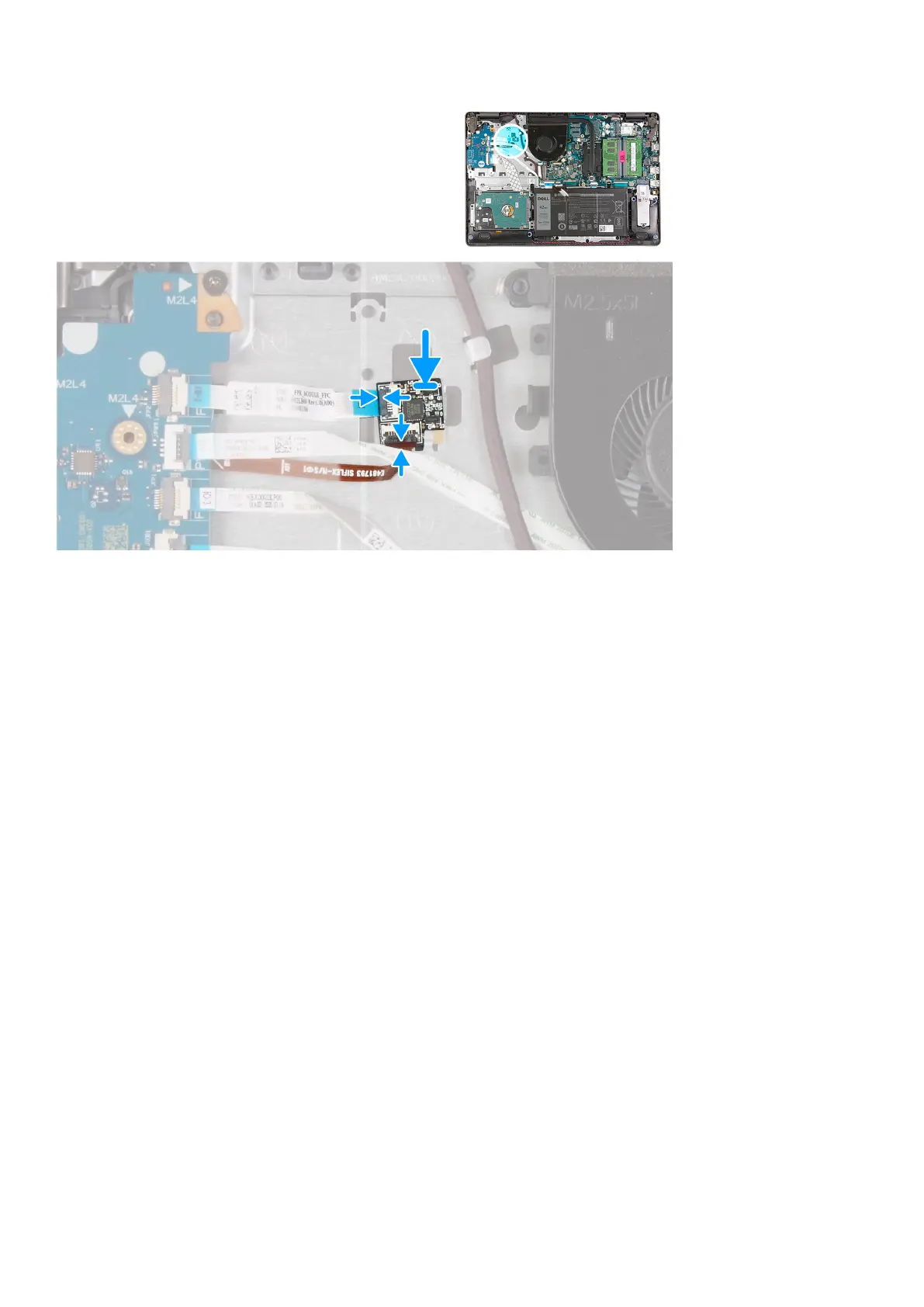

1. Place and slide the fingerprint-reader board under the securing clip on the palm-rest and keyboard assembly.
2. Connect the fingerprint-reader board cable to the fingerprint-reader board and close the latch.
3. Connect the power-button cable to the fingerprint-reader board and close the latch.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the wireless card.
About this task
The following images indicate the location of the display assembly and provides a visual representation of the removal
procedure.
40
Removing and installing components

Dell Inspiron 3502 Specifications

General

Graphics	Intel UHD Graphics 600
Operating System	Windows 10 Home
Battery	3-cell, 42 WHr
Processor	Intel Celeron N4020
RAM	4GB DDR4
Storage	256GB SSD
Weight	1.83 kg
Ports	1 x USB 2.0, 2 x USB 3.2 Gen 1, 1 x HDMI 1.4, 1 x SD card reader, 1 x headphone/microphone combo
Wireless	802.11ac
Dimensions	364 x 249 x 20 mm (14.33 x 9.80 x 0.79 inches)
Display	15.6-inch HD (1366 x 768) / 15.6-inch FHD (1920 x 1080)
