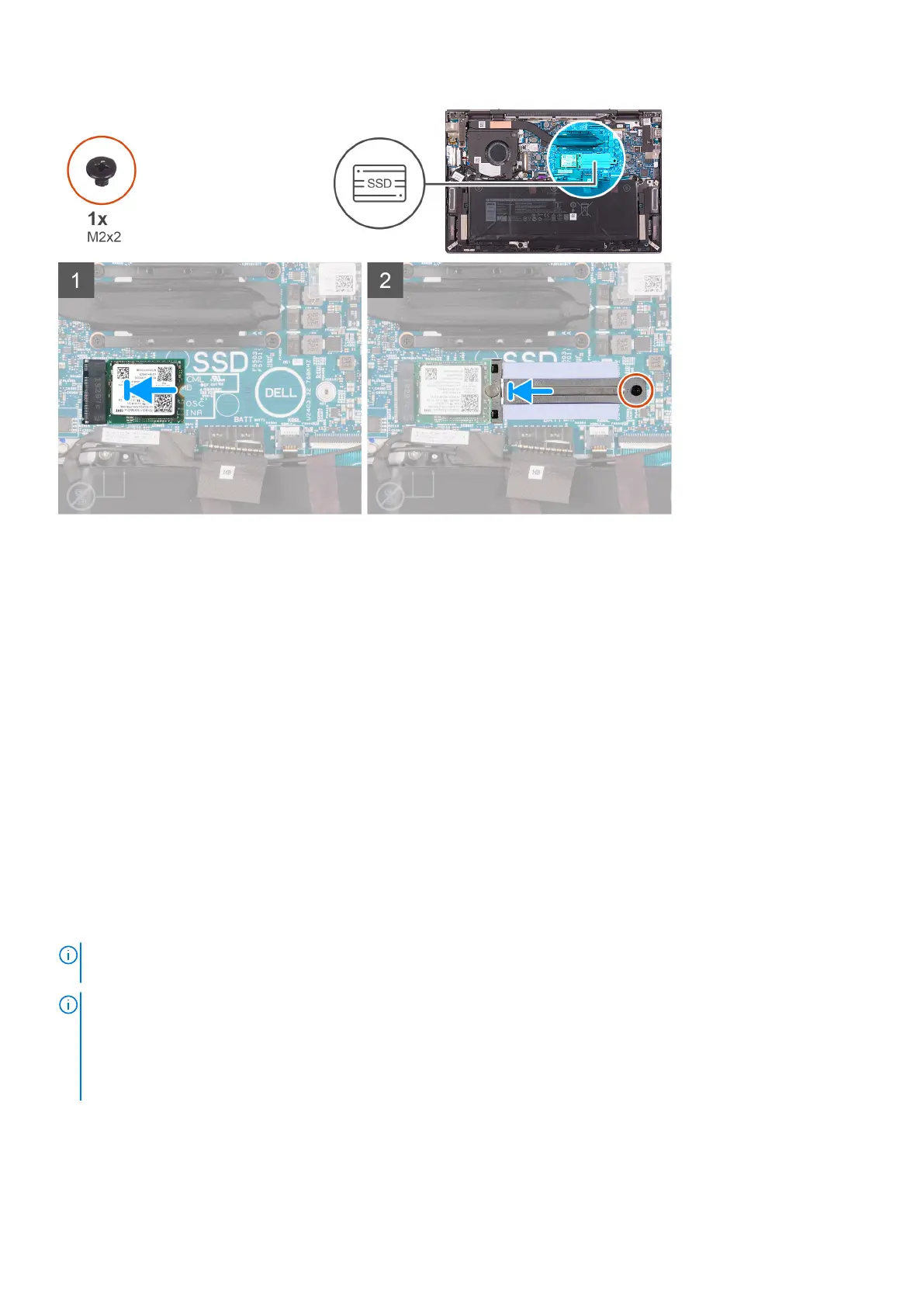

Steps
1. Align the notch on the M.2 2230 solid-state drive with the tab on the M.2 card slot on the system board.
2. Slide the M.2 2230 solid-state drive into the M.2 card slot on the system board.
3. Slide the M.2 2230 mounting bracket into place, aligning the peg on the bracket with the notch on the M.2 2230 solid-state
drive.
4. Align the screw hole on the M.2 2230 mounting bracket to the screw hole on the system board.
5. Replace the screw (M2x2) that secures the M.2 2230 mounting bracket to the system board.
Next steps
1. Follow the procedure in After working inside your computer.
Removing the M.2 2280 solid-state drive/Intel Optane H10
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE:
This procedure applies only to computers shipped with a M.2 2280 solid-state drive or a M.2 2280 Intel Optane H10
installed.
NOTE: The M.2 card installed on your computer will depend on the configuration ordered. Supported card configurations on
the M.2 card slot:
● M.2 2230 solid-state drive + 2230 mounting bracket
● M.2 2280 solid-state drive
● M.2 2280 Intel Optane Memory H10
The following image(s) indicate the location of the M.2 2280 solid-state drive/Intel Optane H10 and provides a visual
representation of the removal procedure.
Removing and installing components
19
