Dell Inspiron 7306 2-in-1 Silver User Manual

Steps

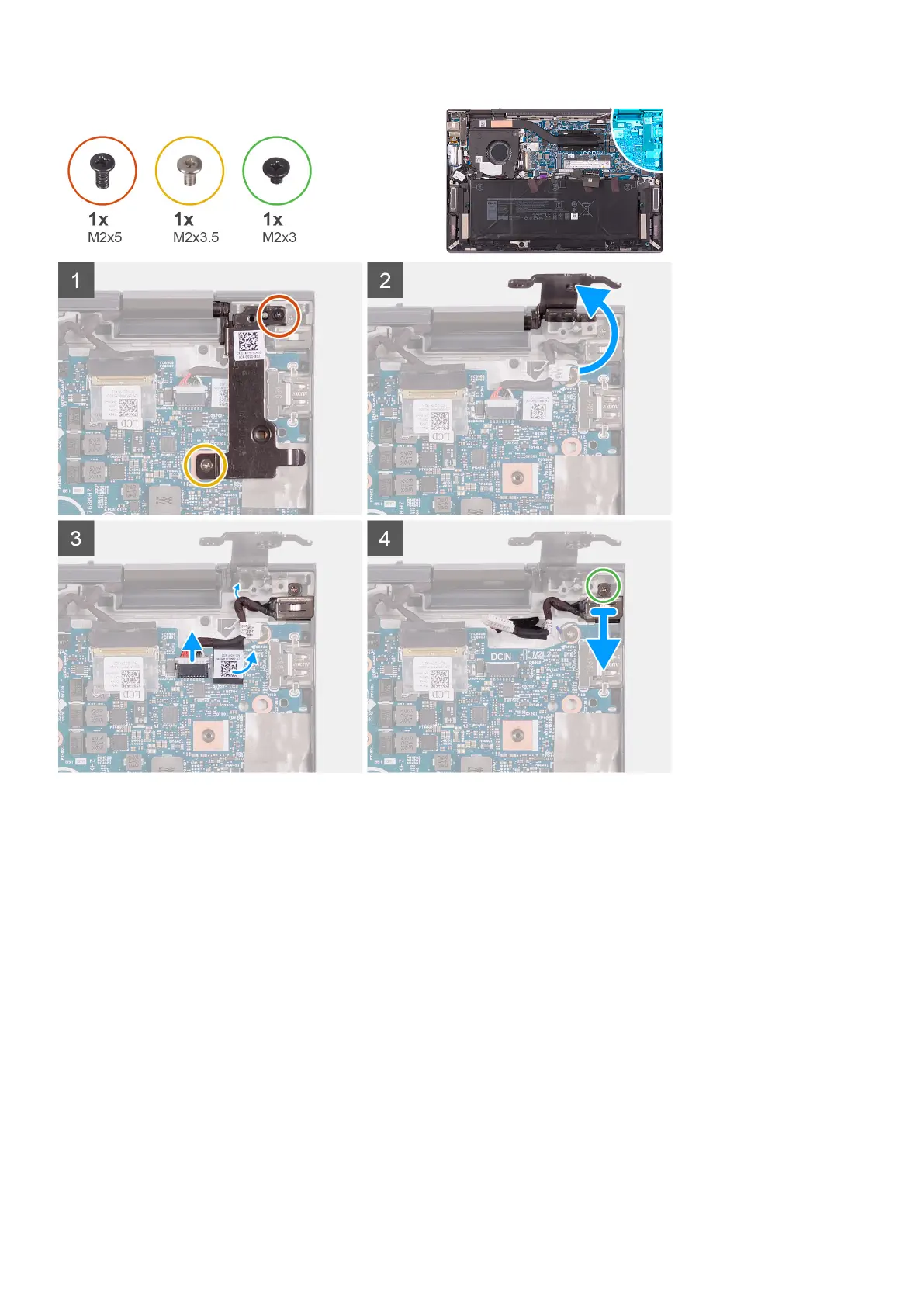

1. Remove the screw (M2x5) that secures the right display-hinge to the palm-rest assembly.
2. Remove the screw (M2x3.5) that secures the right display-hinge to the system board and palm-rest assembly.
3. Pry open the right display-hinge.
4. Peel off the tape the secures the power-adapter port cable to the system board.
5. Disconnect the power-adapter port cable from the system board.
6. Remove the screw (M2x3) that secures the power-adapter port to the palm-rest assembly.
7. Remove the power-adapter port cable from the routing guide on the palm-rest assembly.
8. Lift the power-adapter port along with its cable off the palm-rest assembly.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
28
Removing and installing components

Dell Inspiron 7306 2-in-1 Silver Specifications

General

Graphics	Intel Iris Xe Graphics
Color	Silver
Webcam	720p at 30 fps HD camera
Audio	Stereo speakers with Waves MaxxAudio Pro
Processor	11th Generation Intel Core i7-1165G7
Display	13.3-inch FHD (1920 x 1080)
RAM	16GB LPDDR4x
Storage	512GB M.2 PCIe NVMe SSD
Operating System	Windows 10 Home
Battery	4-Cell, 53 WHr, Integrated battery
Wireless	Wi-Fi 6 (802.11ax), Bluetooth 5.1
Ports	1 x USB 3.2 Gen 1, 1 x HDMI 2.0, 1 x headphone/microphone combo jack
Dimensions	15.7 mm
