11. Connect the display cable to the system board and close the latch.
12. Adhere the tape that secures the display-cable latch to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Fans
Removing the fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task

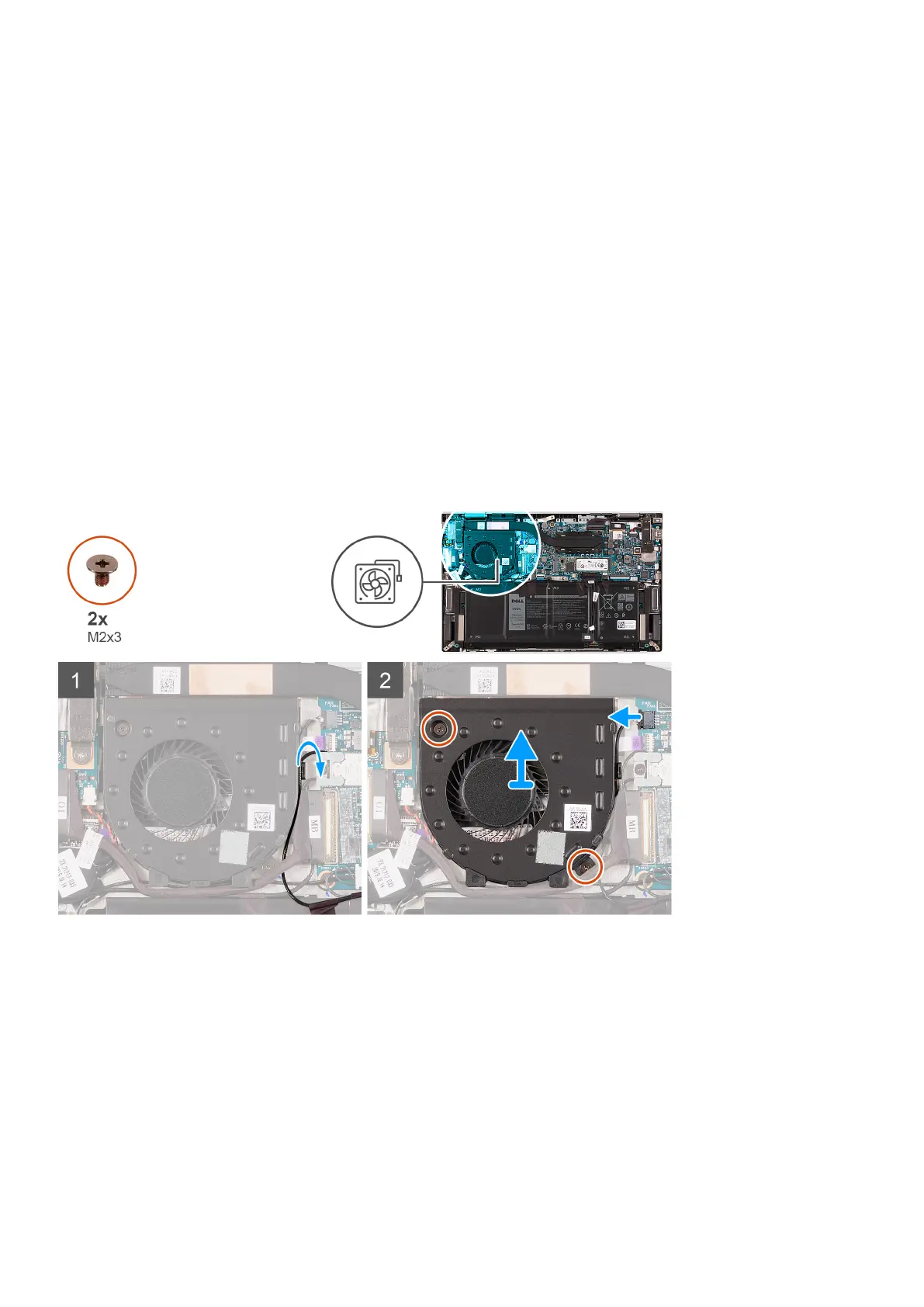

The following image(s) indicate the location of the fan and provides a visual representation of the removal procedure.
Steps
1. Remove the antenna cables from the routing guides on the fan.
2. Disconnect the fan cable from the system board.
3. Remove the two screws (M2x3) that secure the fan to the palm-rest assembly.
4. Lift the fan off the palm-rest assembly.
Installing the fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
26
Removing and installing components

Dell Inspiron 7306 2-in-1 Silver Specifications

General

Graphics	Intel Iris Xe Graphics
Color	Silver
Webcam	720p at 30 fps HD camera
Audio	Stereo speakers with Waves MaxxAudio Pro
Processor	11th Generation Intel Core i7-1165G7
Display	13.3-inch FHD (1920 x 1080)
RAM	16GB LPDDR4x
Storage	512GB M.2 PCIe NVMe SSD
Operating System	Windows 10 Home
Battery	4-Cell, 53 WHr, Integrated battery
Wireless	Wi-Fi 6 (802.11ax), Bluetooth 5.1
Ports	1 x USB 3.2 Gen 1, 1 x HDMI 2.0, 1 x headphone/microphone combo jack
Dimensions	15.7 mm
