Dell Inspiron 7306 2-in-1 Silver User Manual

Steps

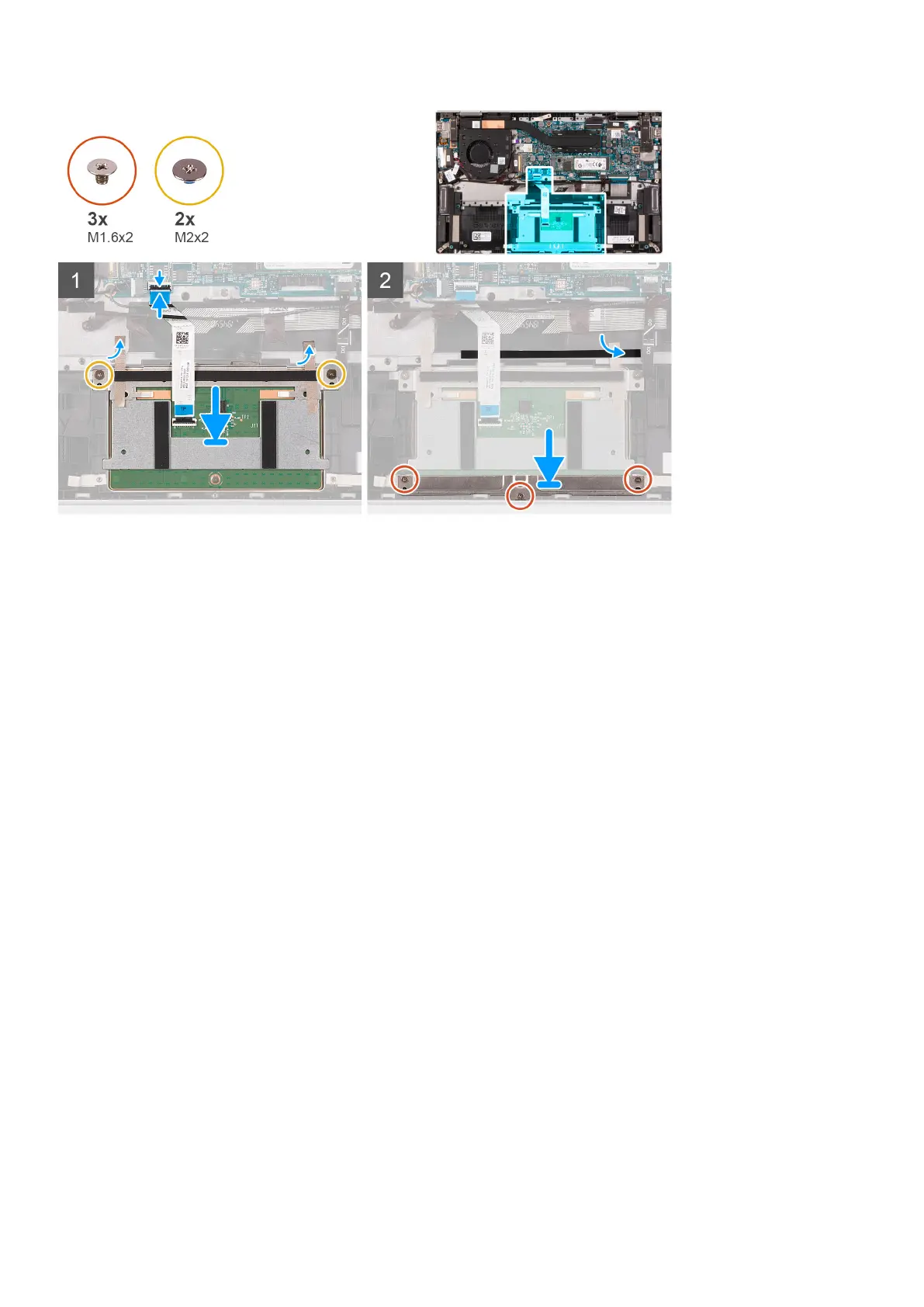

1. Slide the touchpad into the slot on the palm-rest assembly.
2. Replace the two screws (M2x2) that secure the touchpad to the palm-rest assembly.
3. Adhere the tapes that secure the touchpad to the palm-rest assembly.
4. Connect the touchpad cable to the system board and close the latch.
5. Align the screw holes on the touchpad bracket with the screw holes on the palm-rest assembly.
6. Replace the three screws (M1.6x2) that secure the touchpad bracket to the palm-rest assembly.
7. Adhere the mylar that covers the tape that secures the touchpad to the palm-rest assembly.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The following image(s) indicate the location of the speakers and provides a visual representation of the removal procedure.
Removing and installing components
35

Dell Inspiron 7306 2-in-1 Silver Specifications

General

Graphics	Intel Iris Xe Graphics
Color	Silver
Webcam	720p at 30 fps HD camera
Audio	Stereo speakers with Waves MaxxAudio Pro
Processor	11th Generation Intel Core i7-1165G7
Display	13.3-inch FHD (1920 x 1080)
RAM	16GB LPDDR4x
Storage	512GB M.2 PCIe NVMe SSD
Operating System	Windows 10 Home
Battery	4-Cell, 53 WHr, Integrated battery
Wireless	Wi-Fi 6 (802.11ax), Bluetooth 5.1
Ports	1 x USB 3.2 Gen 1, 1 x HDMI 2.0, 1 x headphone/microphone combo jack
Dimensions	15.7 mm
