Dell Latitude 3190 User Manual

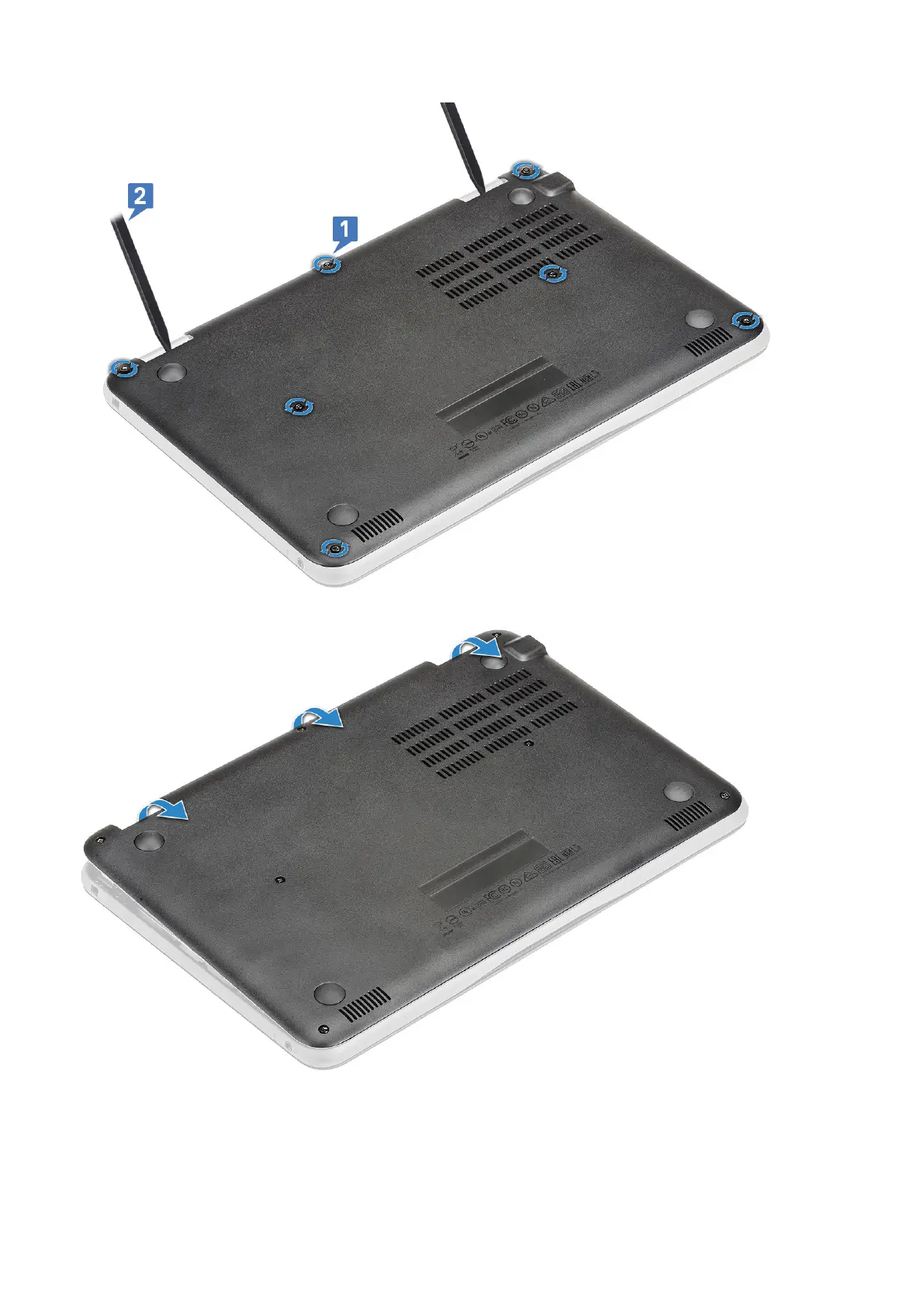

3. Lift the base cover away from the computer.
Installing base cover
1. Place the base cover to align with the screw holders on the system.
2. Press the edges of the cover until it clicks into place.
Disassembly and reassembly
25

Dell Latitude 3190 Specifications

General

Graphics	Intel UHD Graphics 600
Wireless	802.11ac Wi-Fi, Bluetooth 5.0
Processor	Intel Celeron N4100
RAM	4GB DDR4
Storage	64GB eMMC
Display	11.6-inch HD (1366 x 768)
Operating System	Windows 10 Pro
Battery	42 Whr, 3-cell battery
Ports	1x HDMI, 1x microSD Card Reader, 1 x headphone/microphone combo jack
