Dell Latitude 3190 User Manual

b. base cover
5. Follow the procedure in After working inside your computer.
Coin-cell battery
Removing coin cell battery
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery

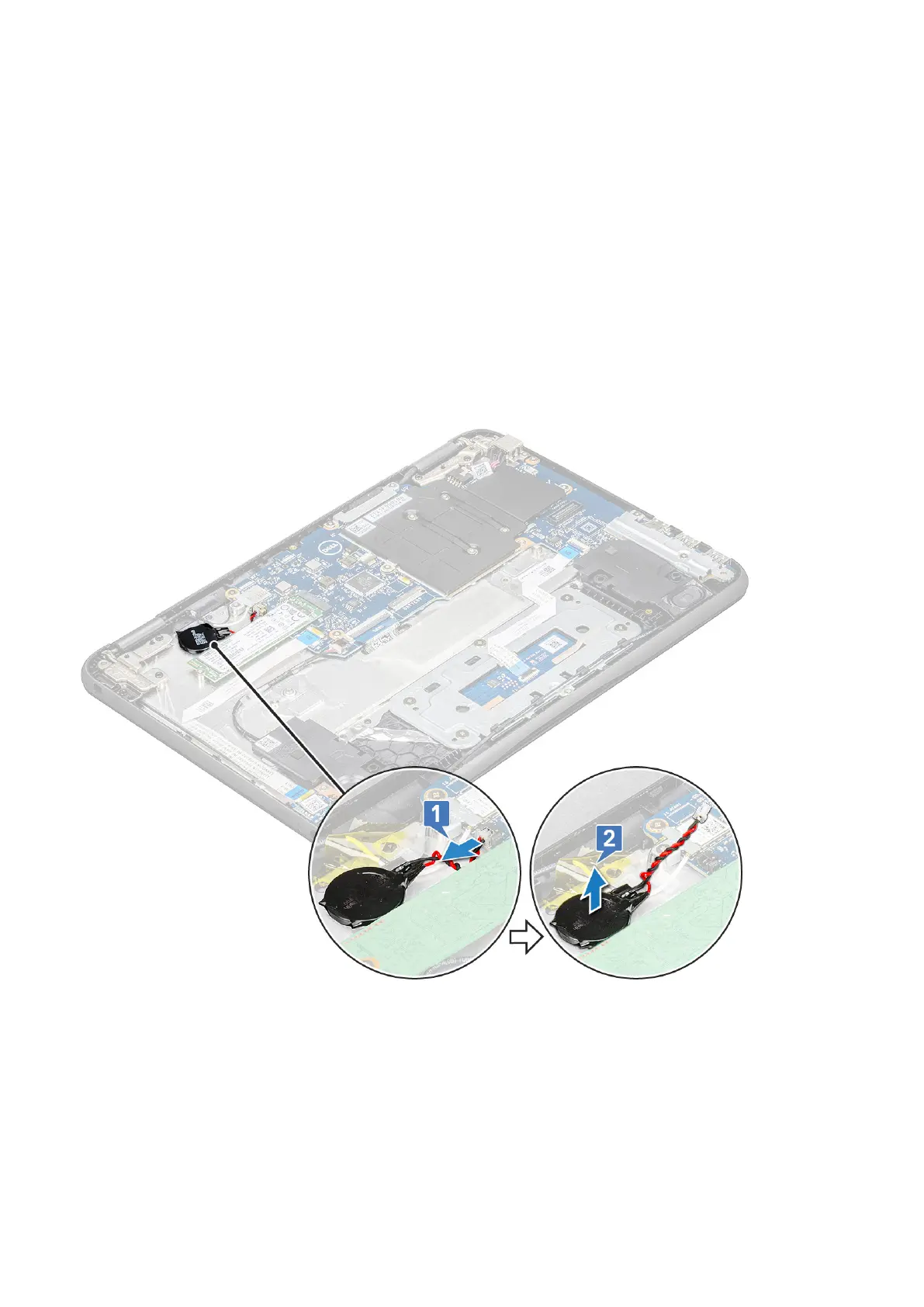

3. To remove the coin cell battery:
a. Disconnect the coin cell battery cable from the connector on the system board [1].
b. Pry the coin cell battery to release it from the adhesive and lift it from the computer [2].
Installing coin cell battery
1. Place the coin cell battery into the slot on the computer.
2. Connect the coin cell battery cable to the connector on the system board.
3. Install the:
a. battery
b. base cover
4. Follow the procedure in After working inside your computer.
Disassembly and reassembly
33

Dell Latitude 3190 Specifications

General

Graphics	Intel UHD Graphics 600
Wireless	802.11ac Wi-Fi, Bluetooth 5.0
Processor	Intel Celeron N4100
RAM	4GB DDR4
Storage	64GB eMMC
Display	11.6-inch HD (1366 x 768)
Operating System	Windows 10 Pro
Battery	42 Whr, 3-cell battery
Ports	1x HDMI, 1x microSD Card Reader, 1 x headphone/microphone combo jack
