Dell Latitude 3190 User Manual

b. base cover
5. Follow the procedure in After working inside your computer.
Power connector port
Removing power connector port
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery

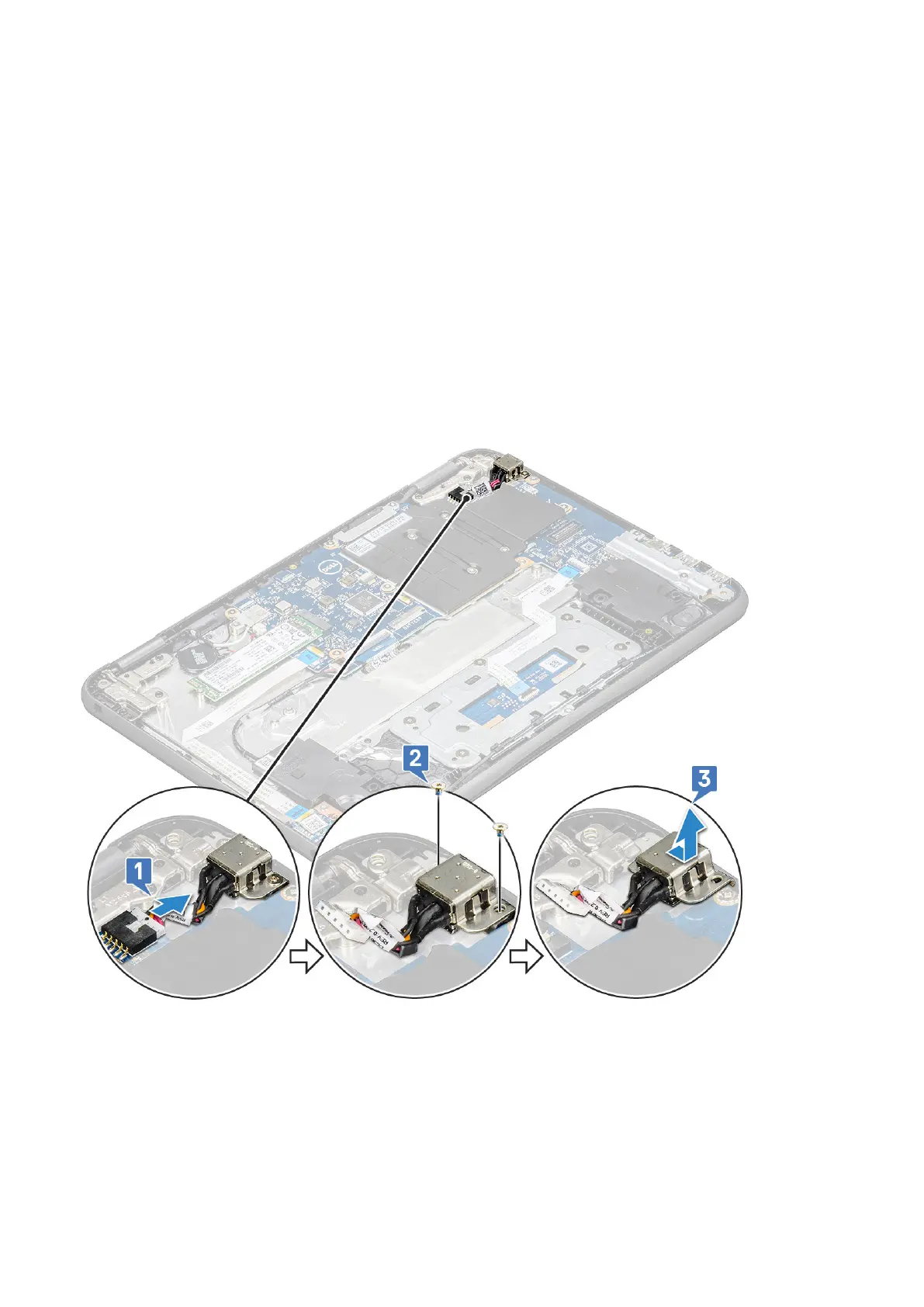

3. To remove the power connector port:
a. Disconnect the power connector cable from the connector on the system board [1].
b. Remove the two M2x3 screws that secure the power connector port on the computer [2].
c. Slide and lift the power connector port from the computer [3].
Installing power connector port
1. Insert the power connector port into the slot on the computer.
2. Replace the two M2x3 screws that secure the power connector port to the computer.
3. Connect the power connector cable to the connector on the system board.
4. Install the:
a. battery
32
Disassembly and reassembly

Dell Latitude 3190 Specifications

General

Graphics	Intel UHD Graphics 600
Wireless	802.11ac Wi-Fi, Bluetooth 5.0
Processor	Intel Celeron N4100
RAM	4GB DDR4
Storage	64GB eMMC
Display	11.6-inch HD (1366 x 768)
Operating System	Windows 10 Pro
Battery	42 Whr, 3-cell battery
Ports	1x HDMI, 1x microSD Card Reader, 1 x headphone/microphone combo jack
