Dell Latitude 3190 User Manual

2. Affix the adhesive tapes to secure the battery to the system.
3. Connect the battery cable to the connector on the battery.
4. Replace the three M2x3 screws to secure the battery to the computer.
5. Install the:
a. base cover
6. Follow the procedure in After working inside your computer.
Solid State Drive
Removing M.2 Solid State Drive
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery

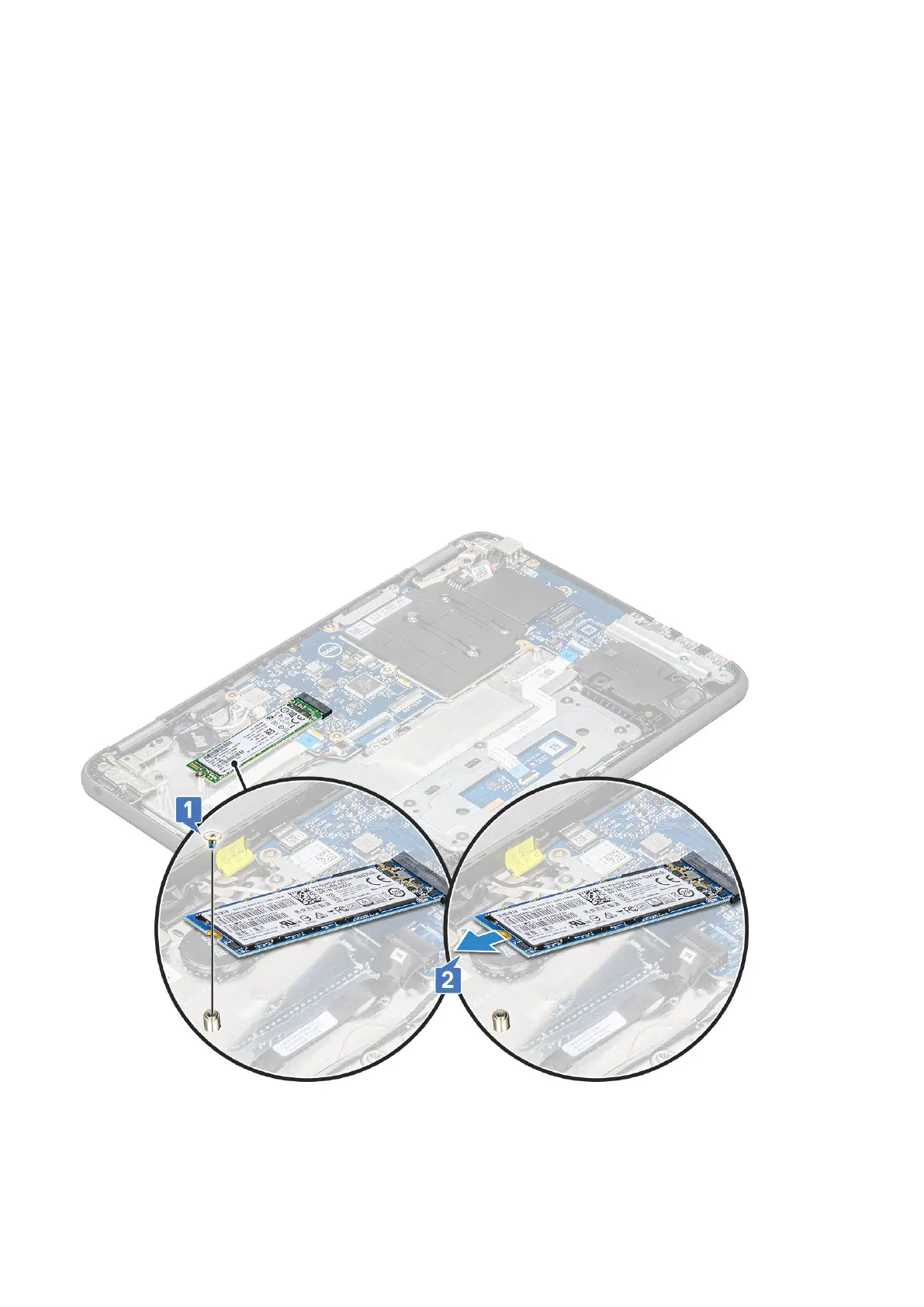

3. To remove the SSD:
a. Remove the M2x3 screw that secures the SSD card [1].
The SSD pops up.
b. Slide and lift the SSD card from the system board [2].
Installing M.2 Solid State Drive
1. Align the notch on the SSD card with the tab on the SSD card connector and slide the card into the slot.
28
Disassembly and reassembly

Dell Latitude 3190 Specifications

General

Graphics	Intel UHD Graphics 600
Wireless	802.11ac Wi-Fi, Bluetooth 5.0
Processor	Intel Celeron N4100
RAM	4GB DDR4
Storage	64GB eMMC
Display	11.6-inch HD (1366 x 768)
Operating System	Windows 10 Pro
Battery	42 Whr, 3-cell battery
Ports	1x HDMI, 1x microSD Card Reader, 1 x headphone/microphone combo jack
