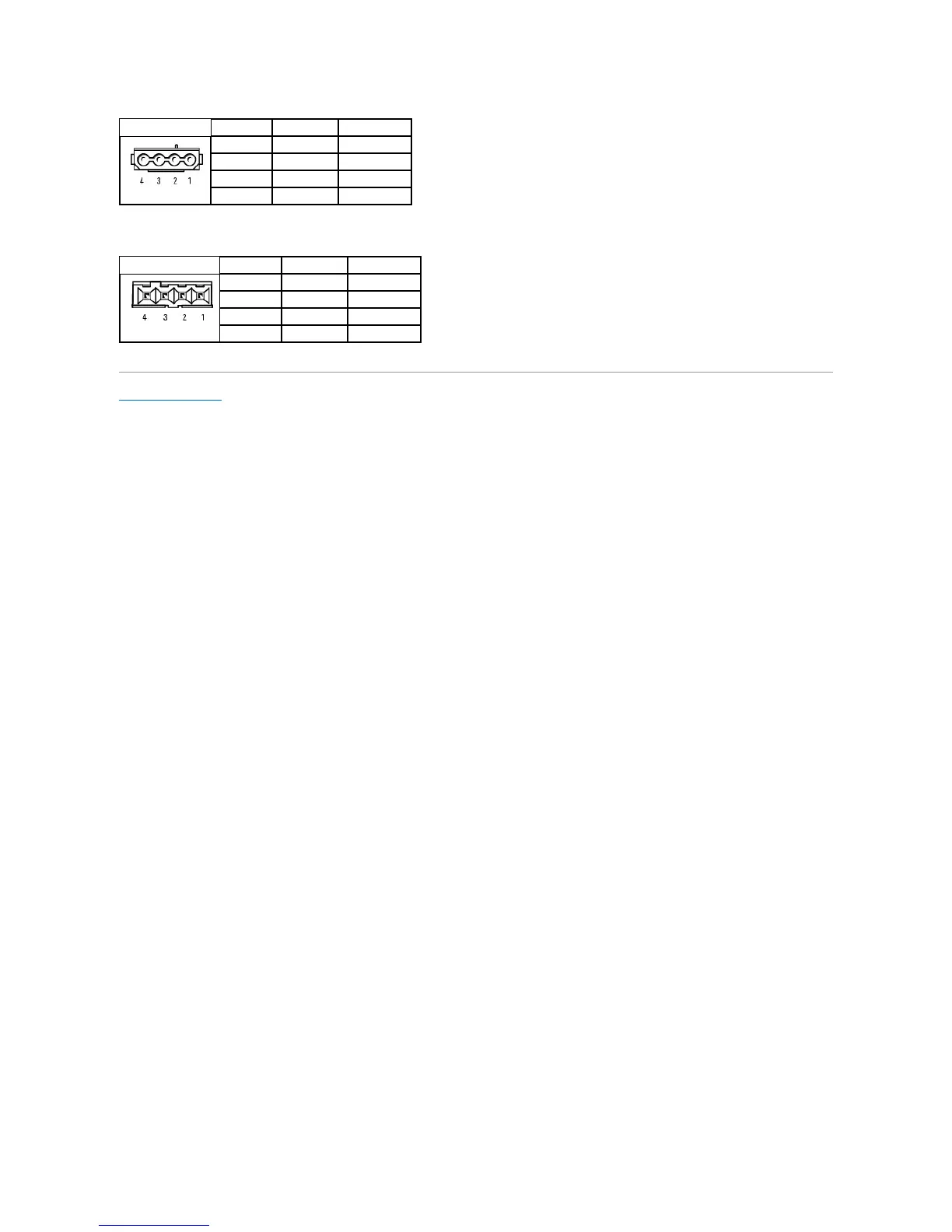

Floppy Drive Power Connector
Back to Contents Page
Pin Number
Signal Name
18-AWG Wire
1
+12 VDC
Yellow
2
COM
Black
3
COM
Black
4
+5 VDC
Red
Pin Number
Signal Name
22-AWG Wire
1
+5 VDC
Red
2
COM
Black
3
COM
Black
4
+12 VDC
Yellow
