Installing the fan duct
Steps
1. Align the slots on the fan duct, with the screws on the heat sink.
2. Insert the fan duct until it clicks into place.
3. Install the cover.
4. Follow the procedure in After Working Inside Your Computer.
Removing the memory module
Steps
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. cover
b. fan duct
c. hard drive assembly
d. optical drive

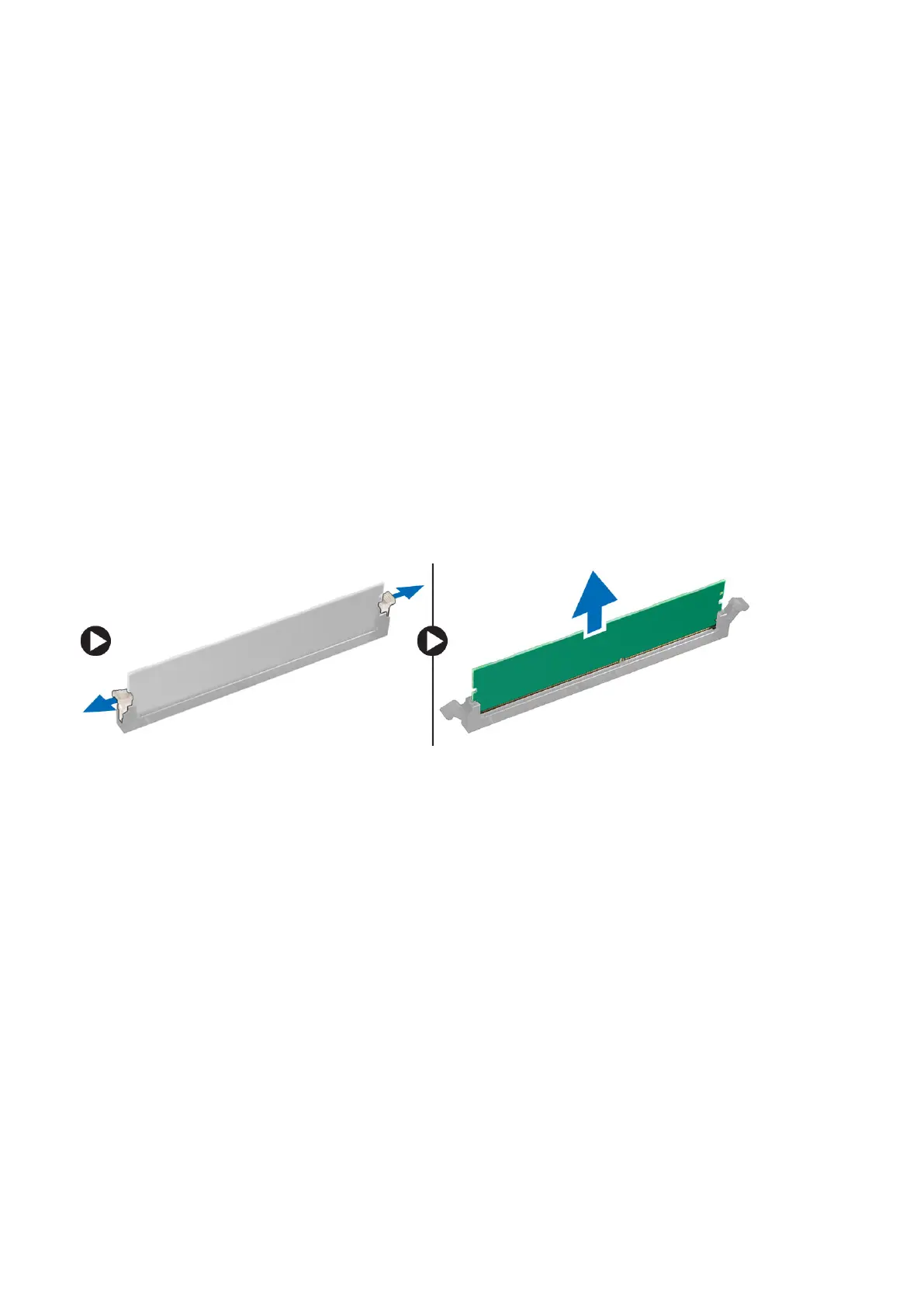

3. To remove the memory module:
a. Press the memory module retention tabs on both sides of the memory module.
b. Lift the memory module from the memory module connector on the system board.
Installing the memory module
Steps
1. Align the notch on the memory module with the tab on the memory module connector.
2. Insert the memory module into the memory module socket.
3. Press the memory module until the memory module retention tabs click into place.
4. Install the:
a. optical drive
b. hard drive assembly
c. fan duct
d. cover
5. Follow the procedure in After Working Inside Your Computer.
Removing the intrusion switch
Steps
1. Follow the procedure in Before Working Inside Your Computer.
Removing and installing components
9
