Steps

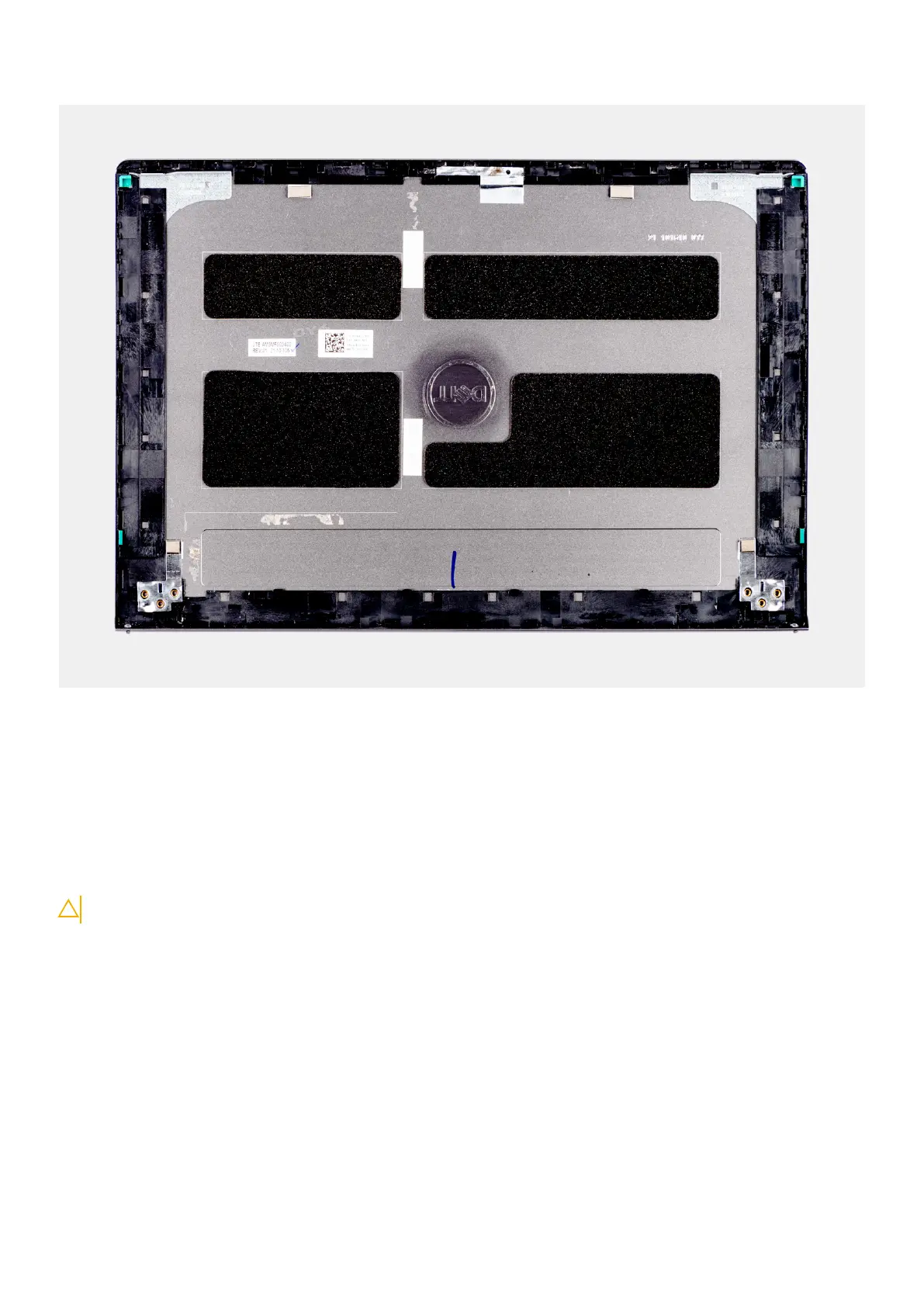

After performing the pre-requisites, you are left with the display cover and antenna assembly.
I/O board
Removing the Input/Output board
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the M.2 2230 solid state drive or M.2 2280 solid state drive (whichever applicable).
5. Remove the fan.
About this task
The following images indicate the location of the Input/Output board and provide a visual representation of the removal
procedure.
