Memory modules
Removing the memory modules
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
About this task

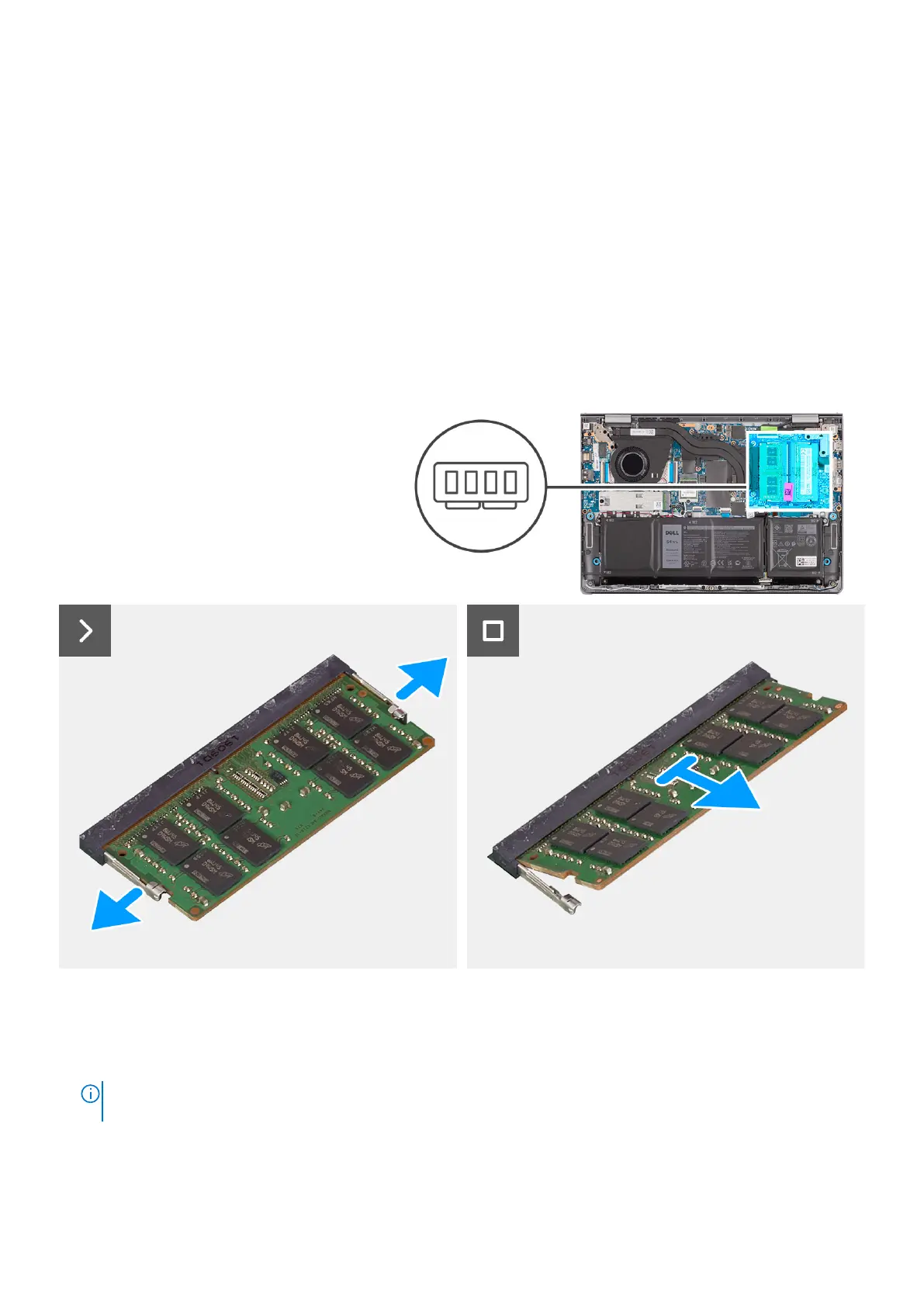

The following images indicate the location of the memory modules and provide a visual representation of the removal procedure.
Steps
1. Using your fingertips, carefully spread apart the securing-clips on each end of the memory-module slot until the memory
module pops-up.
2. Remove the memory module from the memory-module slot on the system board.
NOTE:
Your computer may have up to two memory modules installed. Repeat steps 1 to 2 if there is a second memory.
module installed.
Removing and installing Customer Replaceable Units (CRUs) 45
