Installing the memory modules
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

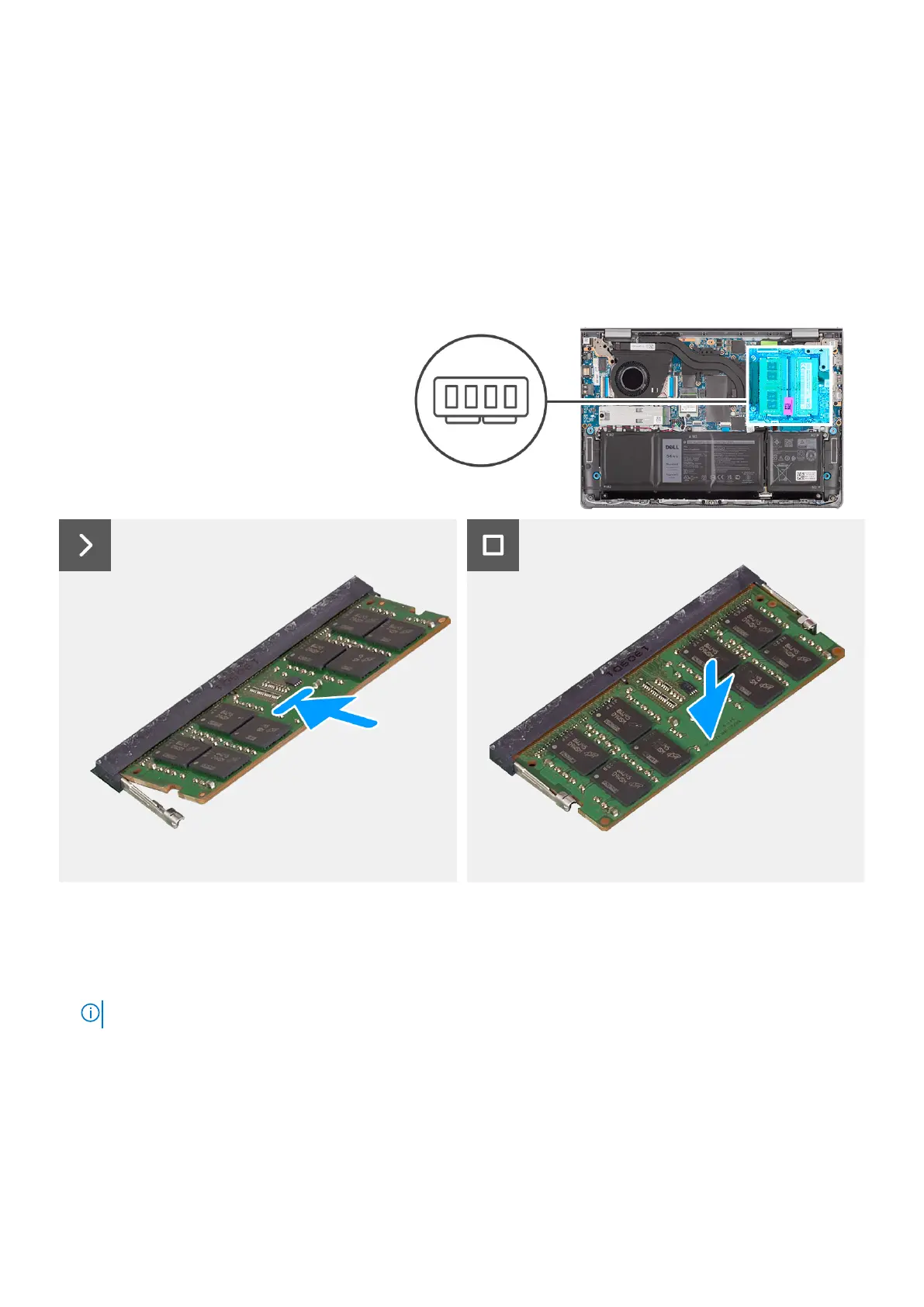

The following images indicate the location of the memory modules and provide a visual representation of the installation
procedure.
Steps
1. Align the notch on the memory module with the tab on the memory-module slot on the system board.
2. Slide the memory module into the memory-module slot on the system board.
3. Press down on the memory module until the securing clips click, locking the memory module in place.
NOTE: Repeat steps 1 to 3 if there is a second memory module to be installed into your computer.
Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in After working inside your computer.
46
Removing and installing Customer Replaceable Units (CRUs)
