Next steps
1. Install the display assembly.
2. Install the battery.
3. Install the base cover.
4. Follow the procedure in after working inside your computer.
Display panel
Removing display panel
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the display assembly.
5. Remove the display bezel
Steps

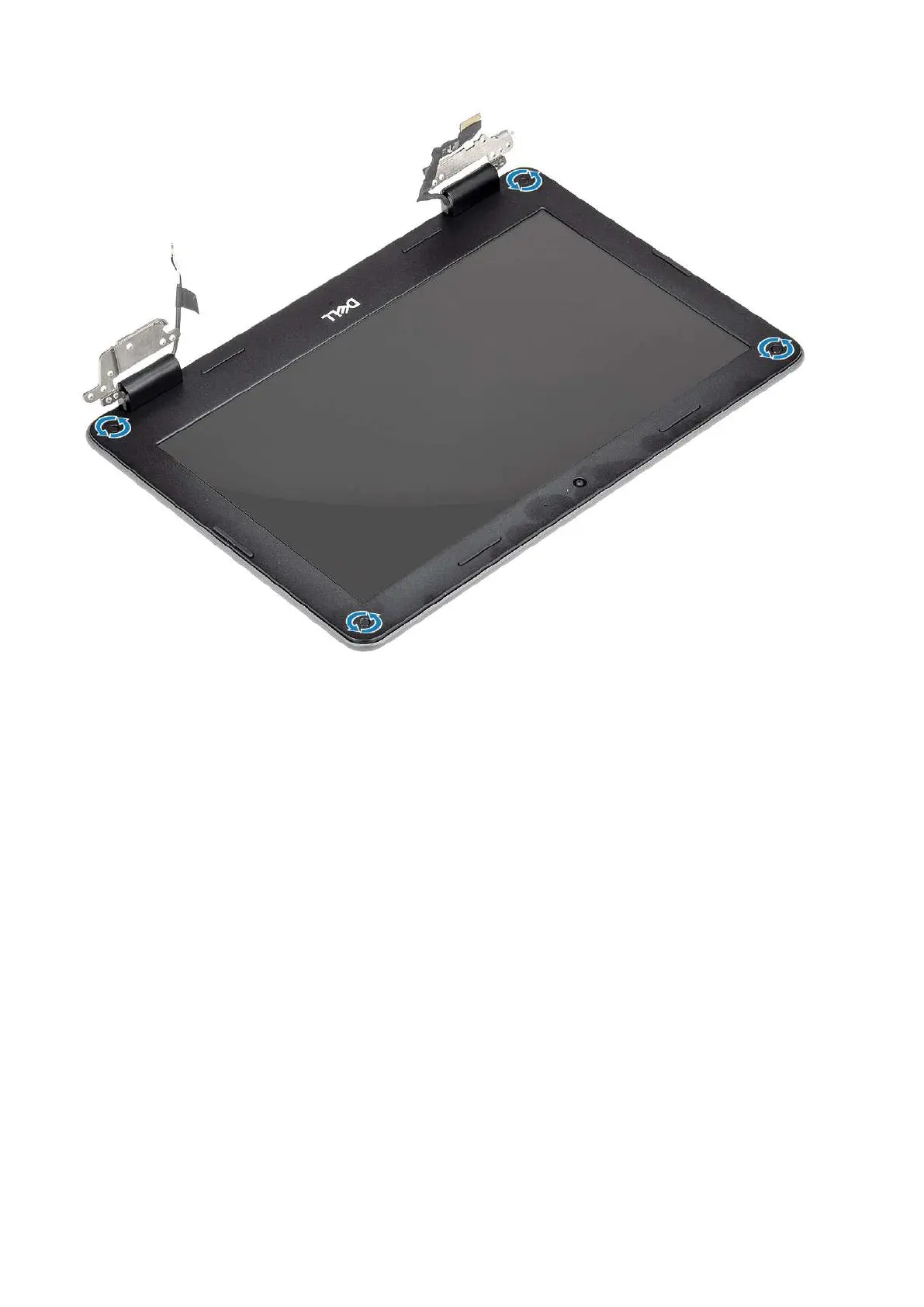

1. Remove the four (M2.0x3.0) screws that secure the display panel to the display assembly [1] and lift to turn the display panel to
access the display cable [2].
60
Removing and Installing
