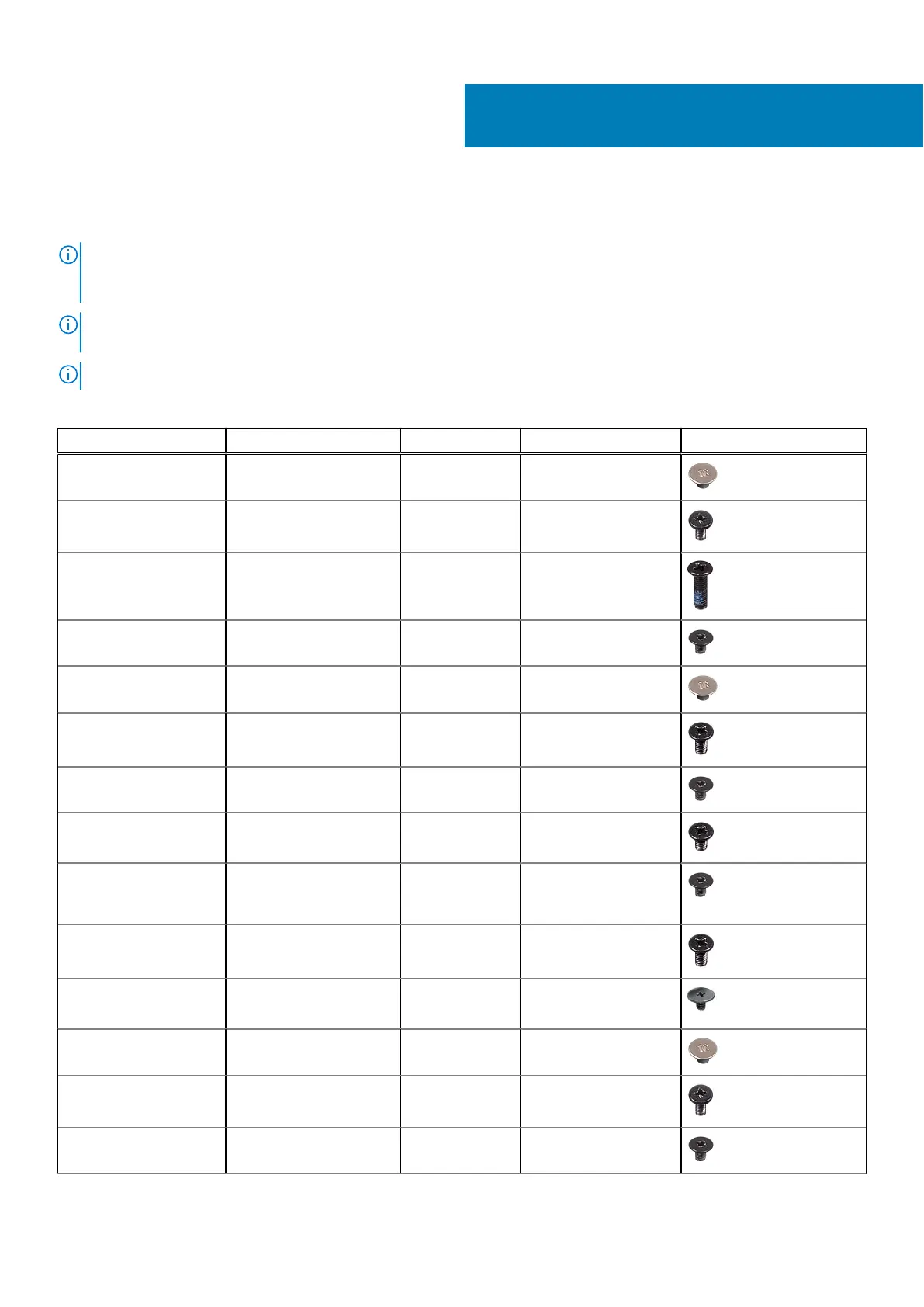

Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surface when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.
Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Base cover Palm rest and keyboard
assembly
M2x2 2
Base cover Palm rest and keyboard
assembly
M2x4 1
Base cover Palm rest and keyboard
assembly
M2.5x7 7
Battery Palm rest and keyboard
assembly
M2x3 4
Display panel Display back-cover and
antenna assembly
M2x2 4
Fan Palm rest and keyboard
assembly
M2.5x5 3
Hard-drive assembly Palm rest and keyboard
assembly
M2x3 4
Hard-drive bracket Hard drive M3x3 4
Heat sink (for computers
shipped with discrete
graphics)
System board M2x3 3
Hinges Palm rest and keyboard
assembly
M2.5x5 5
Hinge brackets Display back-cover and
antenna assembly
M2.5x4 8
Hinge brackets Display back-cover and
antenna assembly
M2x2 2
I/O board Palm rest and keyboard
assembly
M2x4 1
Optical-drive bracket Optical drive M2x3 2
5
Screw list 15
