Dell P74F002 - Page 60

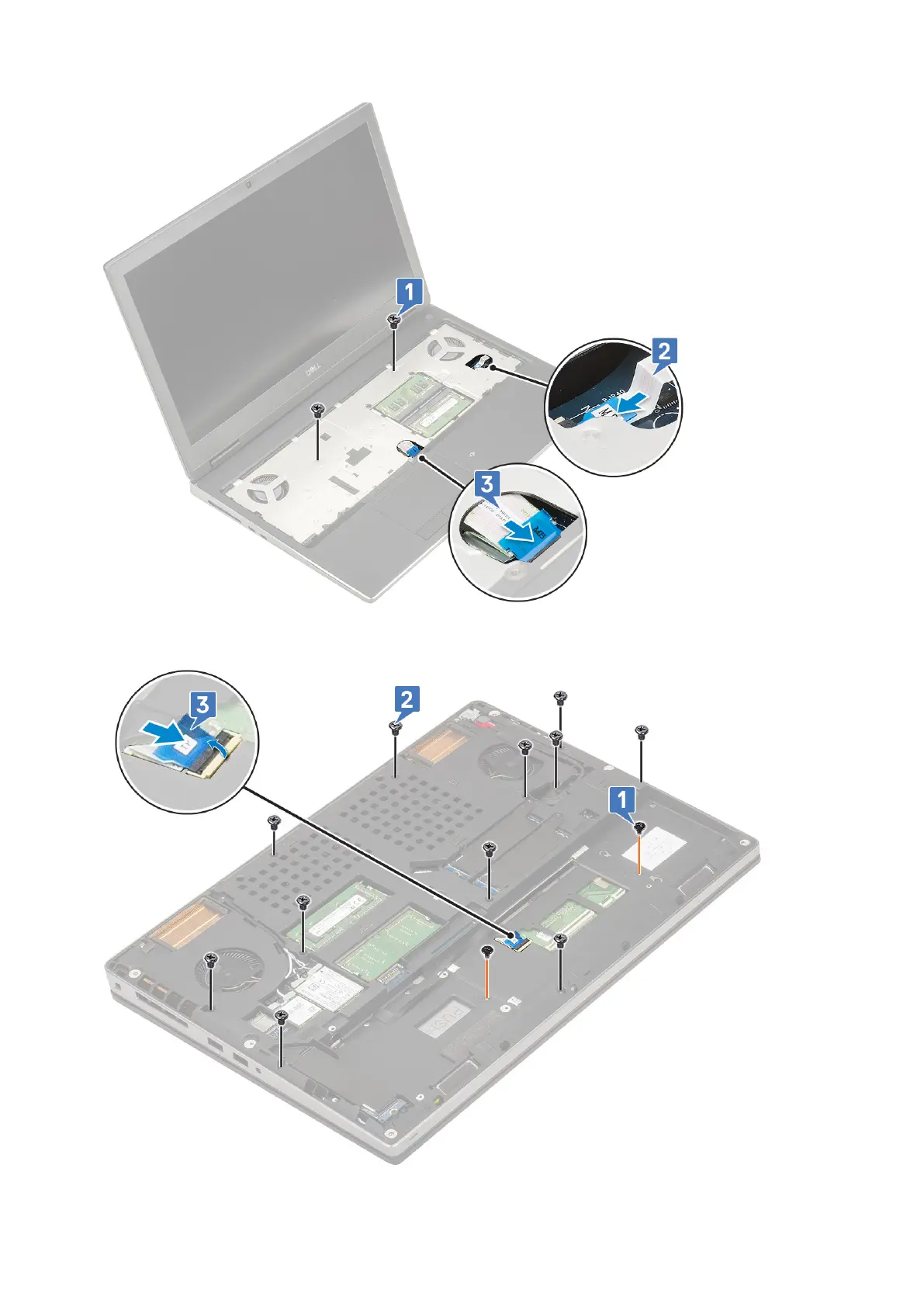

d. Turn the system and replace the 2 (M2.0x3.0) and the 11 (M2.0x5.0) screws to secure the palmrest to the system [1, 2].
e. Connect the touchpad cable to the connector on the system board and lock the latch [3].
60
Removing and installing components
