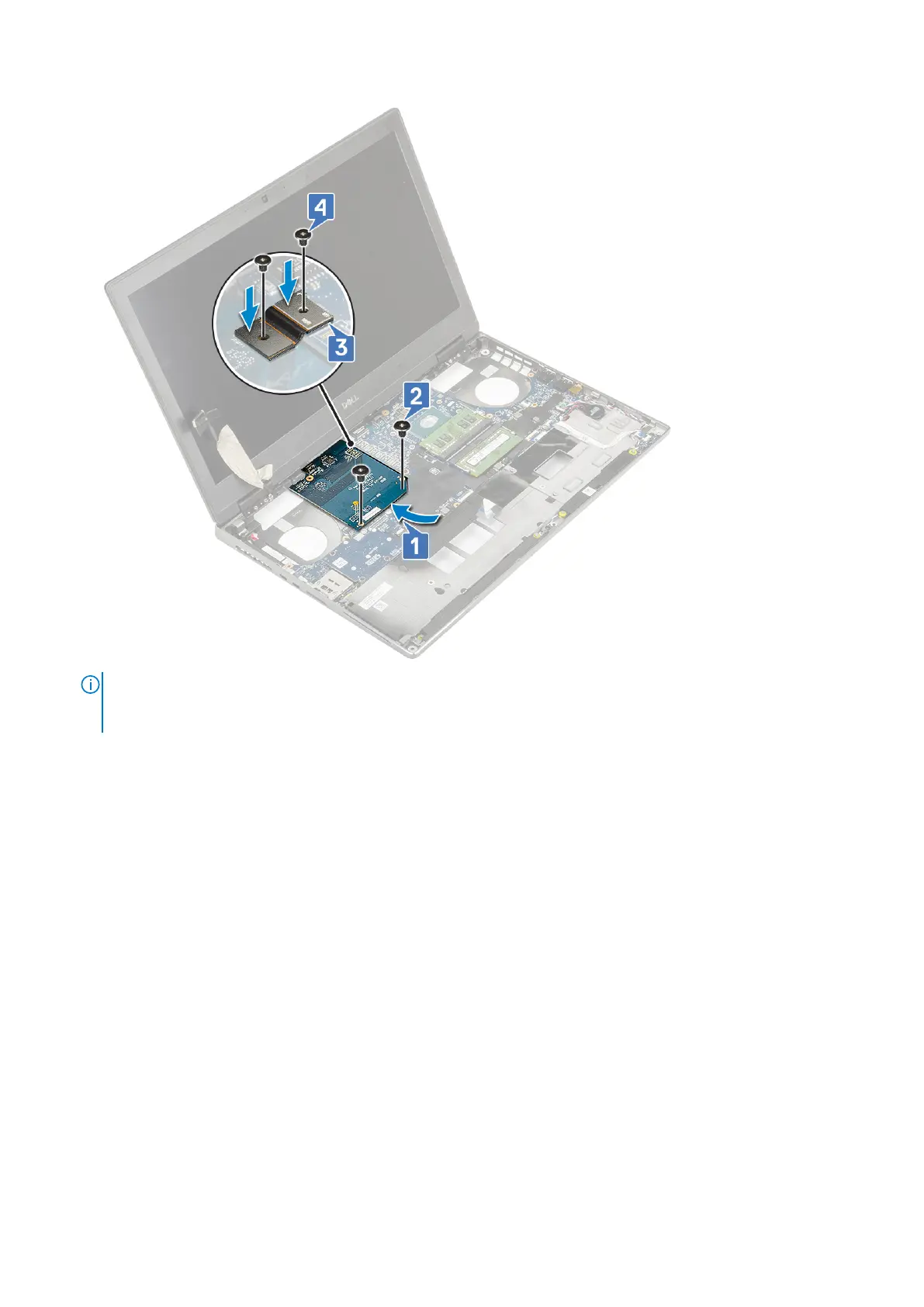

2.
NOTE:
The above procedures are for UMA graphics card. Systems shipped with UMA GPU card do not have GPU
power cable. However, for discrete models shipped with either a 128 MB or 256 MB VRAM GPU card, you need to
connect the GPU power cable after installing the GPU card.
Install the:
a. heat sink assembly
b. palmrest
c. hard drive
d. keyboard
e. battery
f. base cover
g. SD card
3. Follow the procedure in After working inside your computer.
System board
Removing the system board
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. SD card
b. base cover
c. battery
d. hard drive
e. hard drive interposer board
Removing and installing components
75
