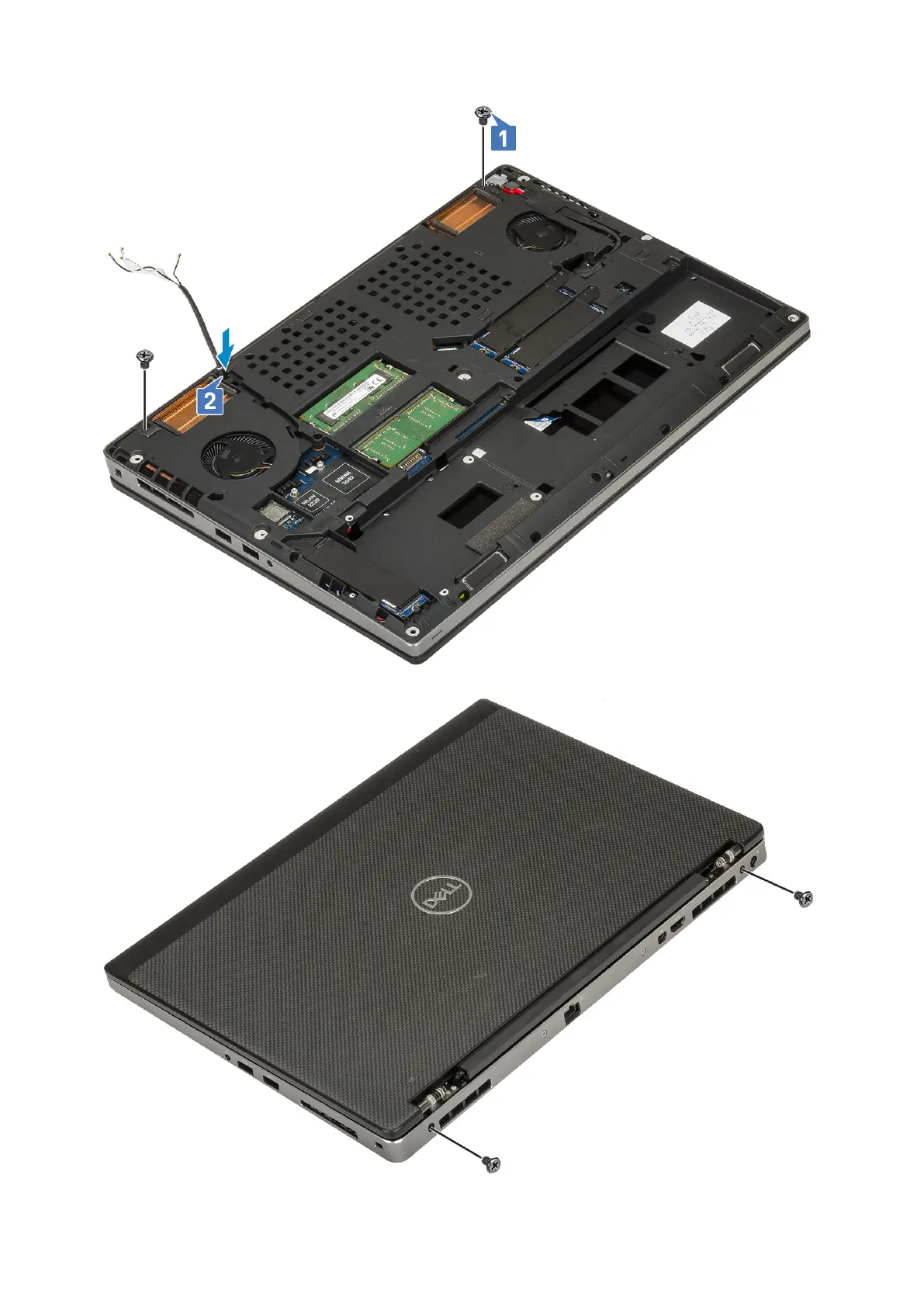

c. Remove the 2 (M2.5x6.0) screws at the rear of the system that secures the display assembly in place.
82
Removing and installing components
