Dell PowerConnect W-AP92 User Manual

Dell Networking W-Series Wireless LAN Mobility Controller Optimizations for Microsoft Lync
10

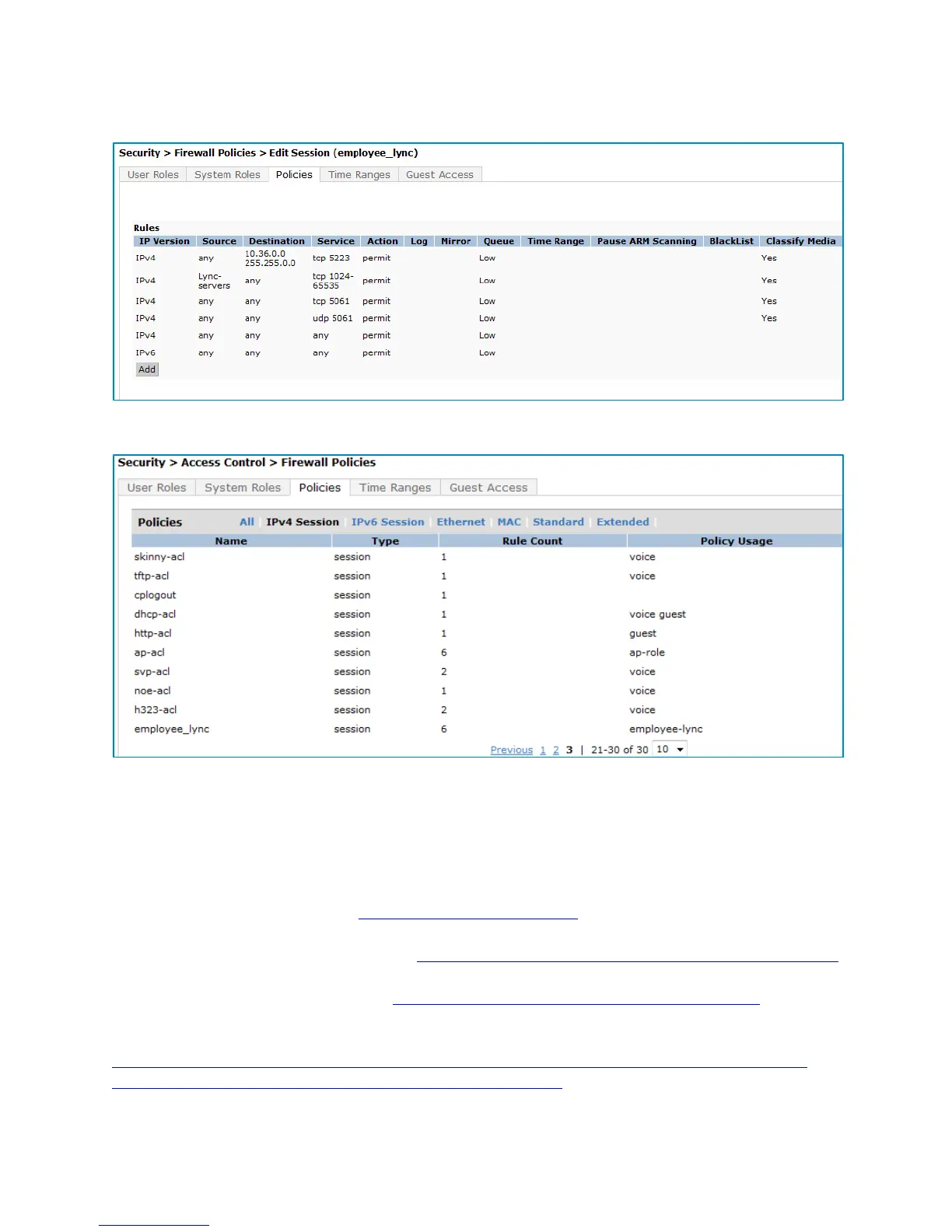

Employee_Lync Policy Rules
Figure 9.
Employee_Lync Policies Figure 10.
The Dell W-Series Mobility controller optimization is complete.
Appendix A
References
Dell Networking W-Series Mobility: http://www.dell.com/Wireless
Dell Networking W-Series Mobility Support: http://support.dell.com/support/edocs/network/PC_Wser/
Microsoft Lync Qualified Infrastructure: http://technet.microsoft.com/en-us/lync/gg131938
Microsoft Lync Server 2010 on Dell Systems:
http://www.dell.com/Learn/us/en/555/business~solutions~engineering-docs~en/Documents~lync-
server-2010-solution-architectures.pdf?c=us&l=en&s=biz&cs=555

Dell PowerConnect W-AP92 Specifications

Wireless Radio Specifications

supported frequency bands	2.400 to 2.4835 GHz, 5.150 to 5.850 GHz
transmit power 2.4 GHz	up to 23 dBm
transmit power 5 GHz	up to 23 dBm

Interfaces

ethernet interface	1 x 10/100/1000BASE-T Ethernet (RJ-45)
serial console interface	1 x RJ-45
power over ethernet	IEEE 802.3af Power over Ethernet (48V DC)

Power

external AC power	12V DC
maximum power consumption	10 watts
power over ethernet	48V DC

Operating Environment

operating temperature	0° to 50° C
operating humidity	5 to 95% non-condensing
storage temperature	-40° to 70° C

Weight and Dimensions

dimensions	120 mm x 130 mm x 35 mm
weight	375 g
antenna gain 2.4 GHz	2.5 dBi
