Dell Networking W-Series Wireless LAN Mobility Controller Optimizations for Microsoft Lync
9
Quality of Service (QoS) Profile
Airtime Fairness

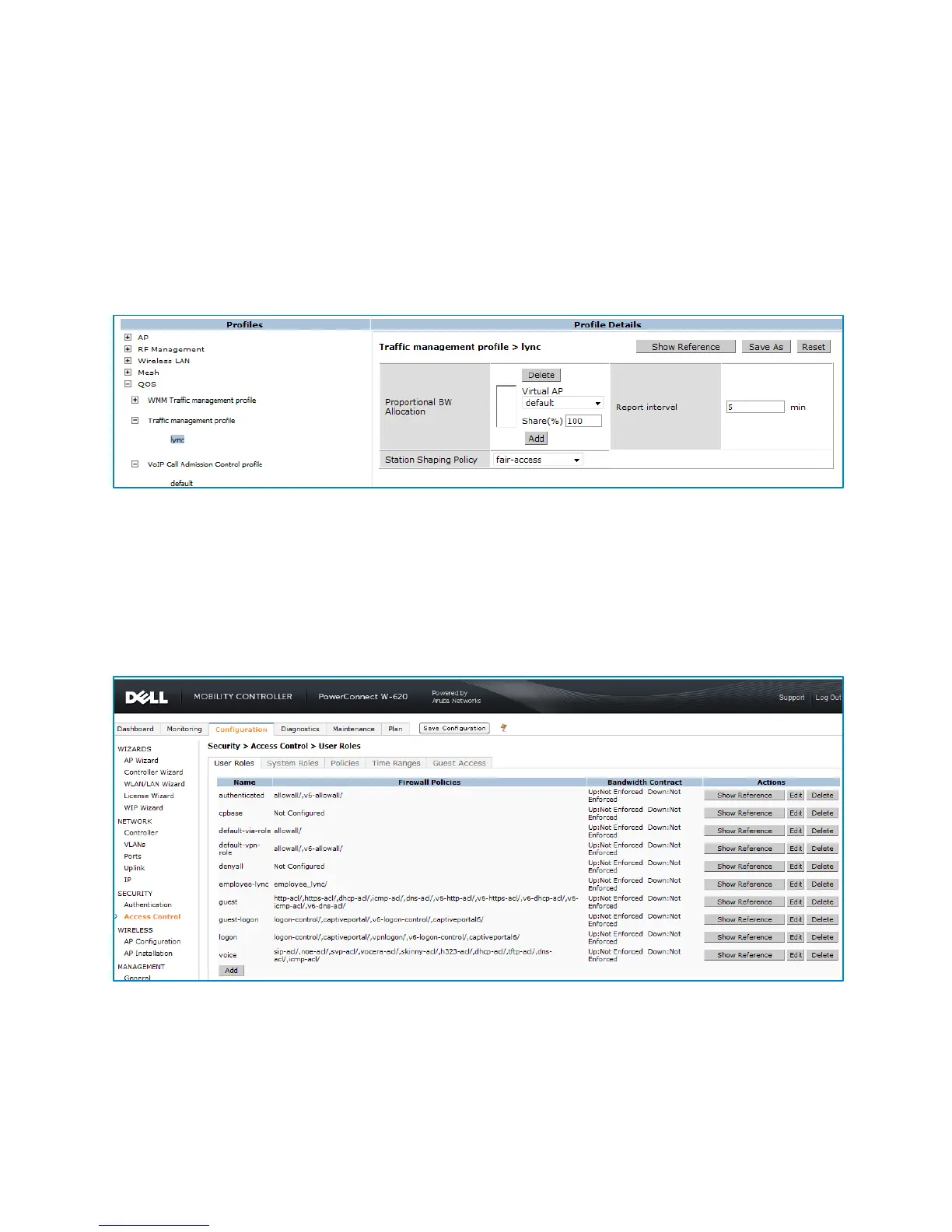

Navigate to Configuration -> All Profiles -> QOS -> Traffic Management Profile -> Profile Details. Add
Lync, then select it. In the Station Shaping Policy field, select fair-access.
This feature allows each wireless client station equal access to the wireless medium.
Traffic Management Profile Figure 7.
Lync Access Control List (ACL) with Classify Media
Employee Lync User Role
See Figure 8. Navigate to Configuration -> Security -> Access Control -> Policies -> Firewall Policies.
Create six new rules. Add an IP access-list session named employee_Lync.
Employee_Lync User Role Figure 8.

Dell PowerConnect W-AP92 Specifications

Wireless Radio Specifications

supported frequency bands	2.400 to 2.4835 GHz, 5.150 to 5.850 GHz
transmit power 2.4 GHz	up to 23 dBm
transmit power 5 GHz	up to 23 dBm

Interfaces

ethernet interface	1 x 10/100/1000BASE-T Ethernet (RJ-45)
serial console interface	1 x RJ-45
power over ethernet	IEEE 802.3af Power over Ethernet (48V DC)

Power

external AC power	12V DC
maximum power consumption	10 watts
power over ethernet	48V DC

Operating Environment

operating temperature	0° to 50° C
operating humidity	5 to 95% non-condensing
storage temperature	-40° to 70° C

Weight and Dimensions

dimensions	120 mm x 130 mm x 35 mm
weight	375 g
antenna gain 2.4 GHz	2.5 dBi
