Dell Networking W-Series Wireless LAN Mobility Controller Optimizations for Microsoft Lync
7
Differential Services Code Point (DSCP)
See Figure 4. Set DSCP mapping for WMM voice AC field to value of 46.
(See RFC 3246 section 2.7 Recommended Code Point for Expedited Forwarding:
http://datatracker.ietf.org/doc/rfc3246/)

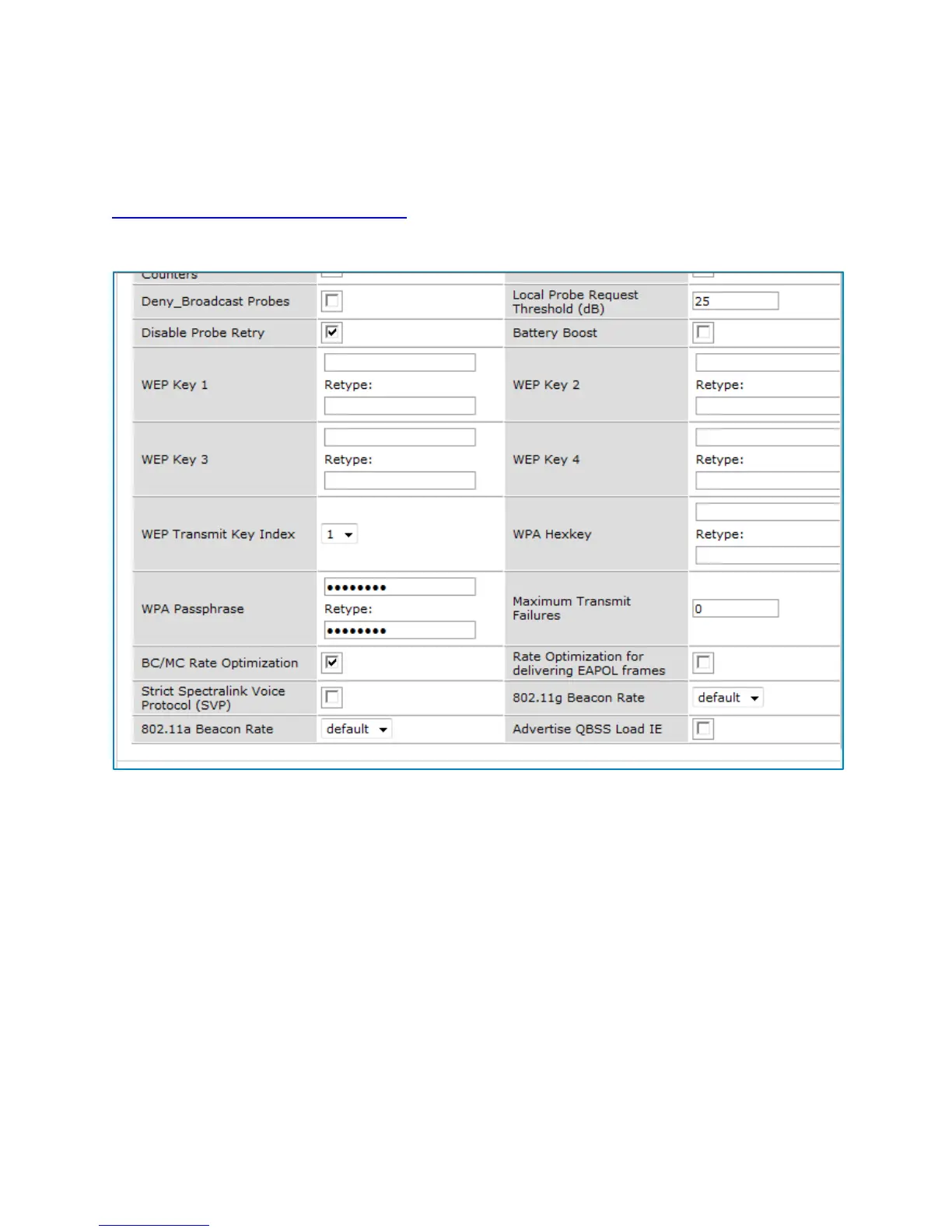

Local Probe Request Threshold Figure 5.
Local Probe Request Threshold (dB)
See Figure 5. Set the Local Probe Request Threshold (dB) field to value of 25.
Broadcast/Multicast Rate Optimization (BC/MC)
See Figure 5. Select the BC/MC Rate Optimization checkbox to enable the feature.
This feature suppresses broadcast and multicast traffic on both wired and wireless networks.

Dell PowerConnect W-AP92 Specifications

Wireless Radio Specifications

supported frequency bands	2.400 to 2.4835 GHz, 5.150 to 5.850 GHz
transmit power 2.4 GHz	up to 23 dBm
transmit power 5 GHz	up to 23 dBm

Interfaces

ethernet interface	1 x 10/100/1000BASE-T Ethernet (RJ-45)
serial console interface	1 x RJ-45
power over ethernet	IEEE 802.3af Power over Ethernet (48V DC)

Power

external AC power	12V DC
maximum power consumption	10 watts
power over ethernet	48V DC

Operating Environment

operating temperature	0° to 50° C
operating humidity	5 to 95% non-condensing
storage temperature	-40° to 70° C

Weight and Dimensions

dimensions	120 mm x 130 mm x 35 mm
weight	375 g
antenna gain 2.4 GHz	2.5 dBi
