11 PowerEdge R320 Technical Guide
3 Chassis views and features
The Dell PowerEdge R320 is a 1U, 1-socket rack server. For additional system views and features, see
the
Dell PowerEdge R320 Systems Owner’s Manual
on Dell.com/Support/Manuals.
Chassis views

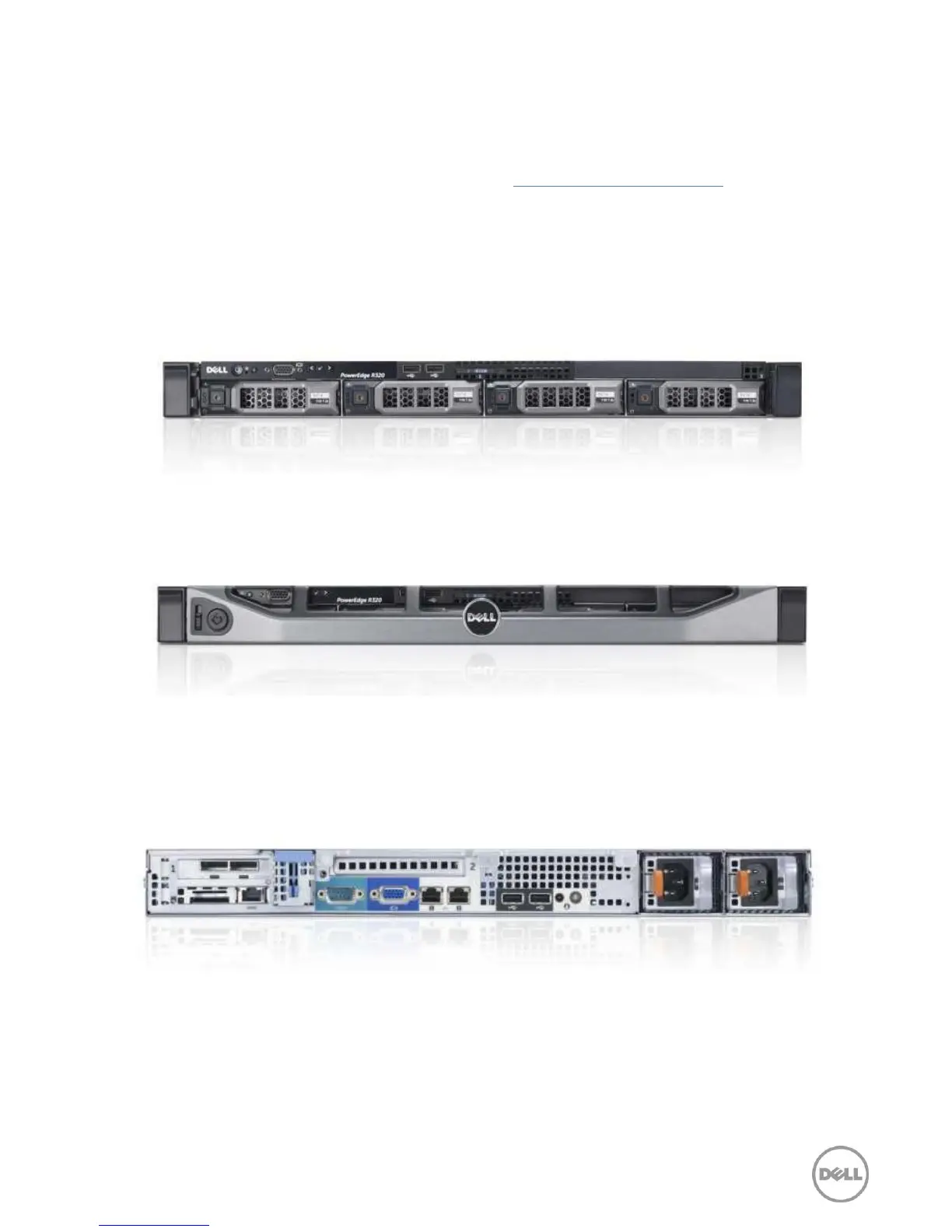

Figure 1 shows the features on the front of the R320 chassis including four 3.5-inch hard drives,
control panel, USB connectors and many other components and features described in this guide.
Figure 1. Front view without bezel
Figure 2 shows the optional locking bezel on the front of the R320 chassis.
Figure 2. Front view with bezel
Figure 3 shows the features on the back panel of the R320 including USB connectors, Ethernet
connectors, serial connector, video connector, PCIe slots, power supplies and many other
components and features described in this guide.
Figure 3. Back view
The chassis design of the R320 is optimized for easy access to components and for airflow for
effective and efficient cooling. The R320 supports up to six DIMMs, one processor, hot-plug
redundant power supplies, and many other components and features described in this guide.
