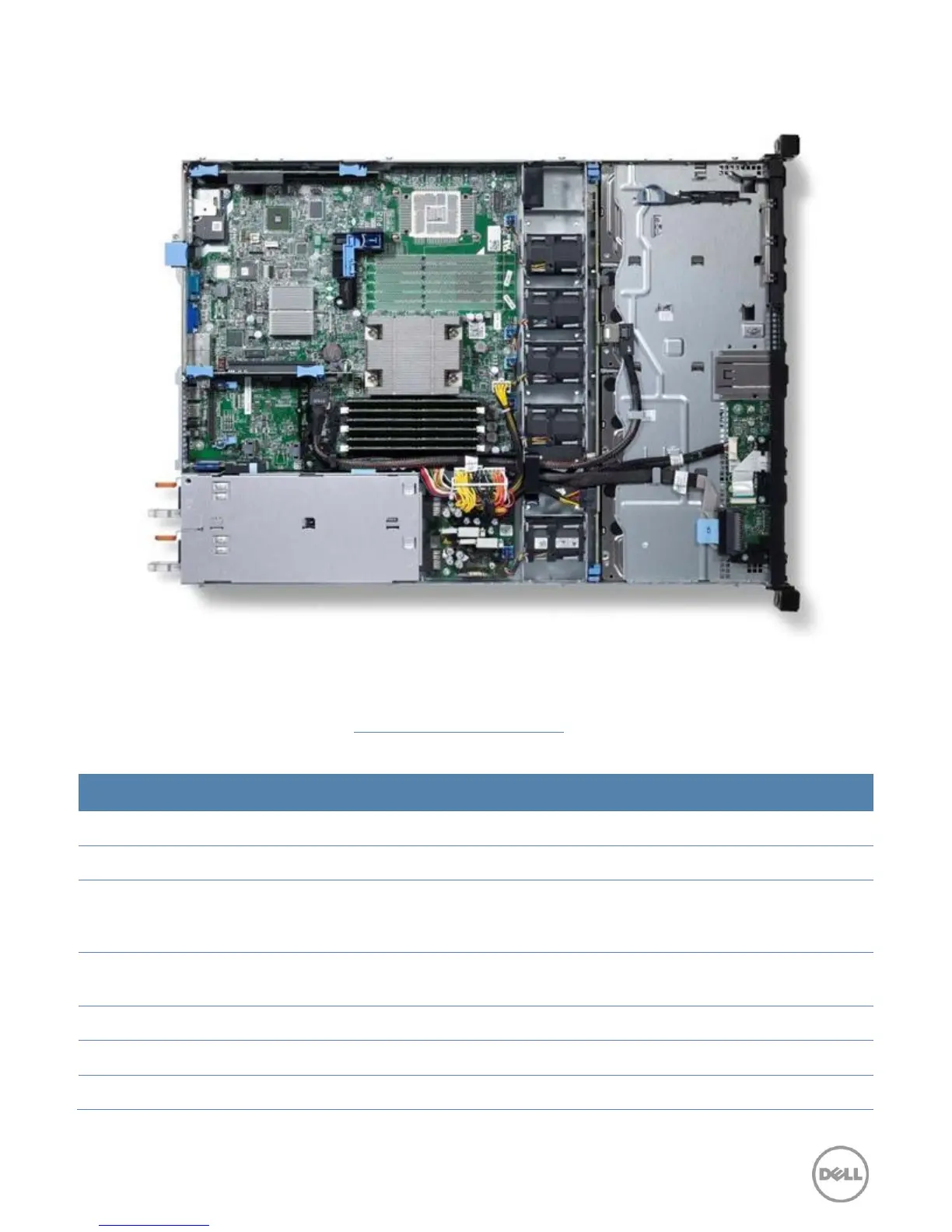

Figure 4. Internal view
Chassis features
Table 4 lists the features on the R320 chassis. For additional information, see the Dell PowerEdge
R320 Systems Owner’s Manual on Dell.com/Support/Manuals.
Table 4. Chassis features
Feature
Description
Power button
ACPI-compliant power button with an integrated green power LED
Front bezel
Covers the system’s front-loading hard drives and locks for security
NMI button
Used to troubleshoot software and device driver errors; use only if directed
to do so by qualified support personnel or by the operating system's
documentation
System identification button
Buttons on the back and front of a system to help identify the unit in a data
center environment
Hard drives
Up to eight 2.5-inch drives
USB connectors
Connects USB devices to the server
Information tag
Slide-out label panel for recording system information

Dell PowerEdge R320 Specifications

General

Bus type	QPI
Stepping	M1
FSB Parity	No
Scalability	2S
Processor code	SR0LS
Processor cache	10 MB
Processor cores	4
Processor model	E5-2403
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2400
Processor socket	LGA 1356 (Socket B2)
Processor codename	Sandy Bridge EN
Motherboard chipset	Intel C600
Processor frequency	1.8 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	45 x 42.5 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	AVX
Thermal Design Power (TDP)	80 W
Number of processors installed	1
Maximum number of PCI Express lanes	24
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25 GB/s
Maximum internal memory supported by processor	375 GB
HDD size	3.5 \
HDD speed	7200 RPM
HDD capacity	1000 GB
HDD interface	Serial ATA
Optical drive type	DVD-RW
Total storage capacity	2000 GB
Maximum storage capacity	16 TB
Number of HDDs installed	2
Memory slots	6x DIMM
Internal memory	4 GB
Memory clock speed	1333 MHz
Maximum internal memory	96 GB
Cabling technology	10/100/1000Base-T(X)
PS/2 ports quantity	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
PCI Express slots version	3.0
Power supply	350 W
Compatible operating systems	Microsoft Windows Server 2012 \\r Microsoft Windows Server 2012 Essentials\\r Microsoft Windows Server 2008 R2 \\r Novell SUSE Linux Enterprise Server\\r Red Hat Enterprise Linux
Sustainability certificates	ENERGY STAR
Chassis type	Rack (1U)
Processor ARK ID	64615
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Width	- mm
