Dell PowerEdge R320 Technical Guide

28 PowerEdge R320 Technical Guide

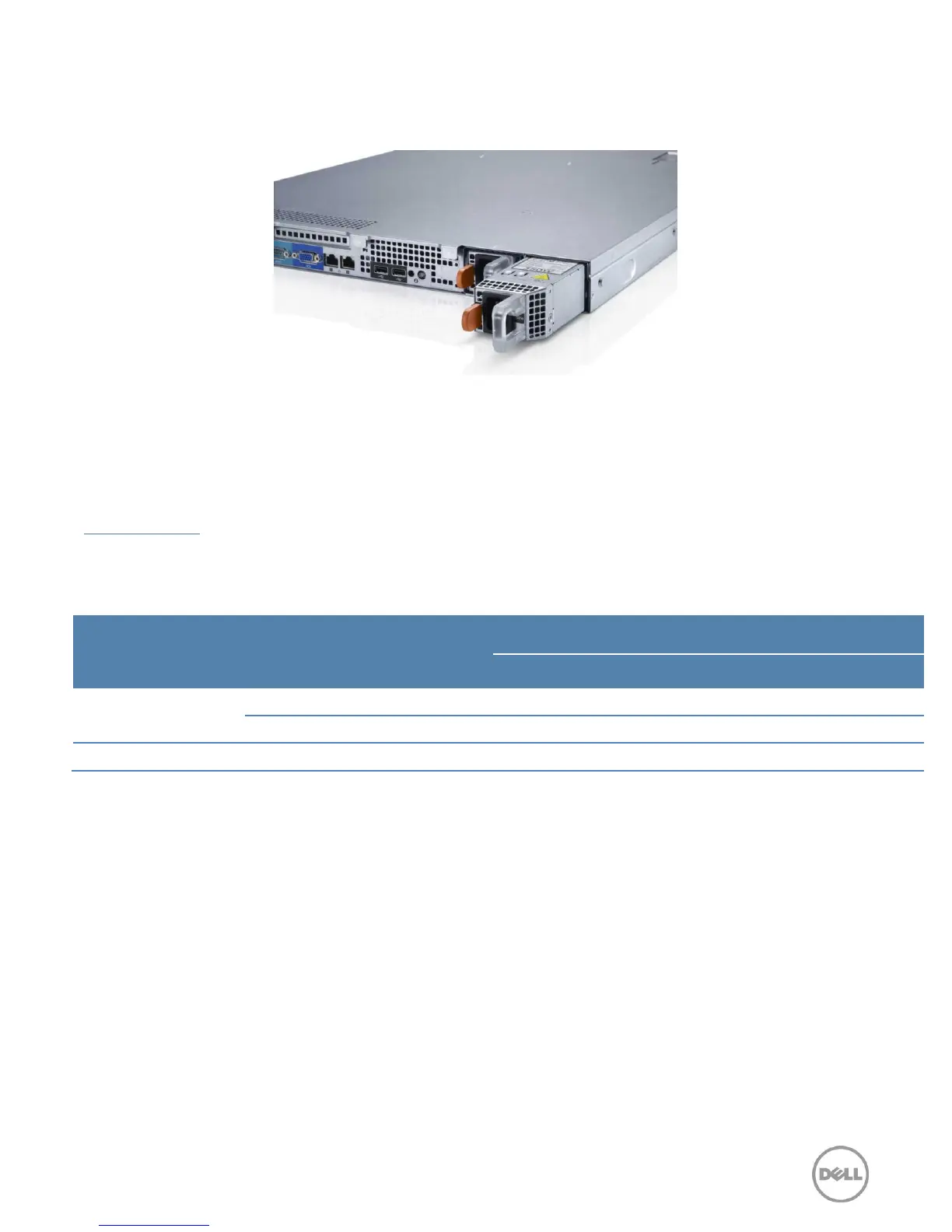

Figure 7 shows a 350W power supply unit extended from the R320 chassis.
Figure 7. 350W power supply unit
The PowerEdge R320 supports up to two AC with 1+1 redundancy, auto-sensing and
auto-switching capability.
To support Intel turbo boost feature (default enabled in BIOS), system with 95W processors (8-core
or 6-core) and 350W cabled PSU may not be sufficient to support feature rich configurations. For
feature rich configurations, using a 350W or 550W hot-plug PSU is recommended in addition to
verifying energy efficiency configurations using the Dell Energy Smart Solution Advisor at
Dell.com/ESSA.
Dell PSUs have achieved Platinum efficiency levels as shown in Table 17.
Table 17. Power supply efficiency
Form factor
Output
Class
Efficiency targets by load
10%
20%
50%
100%
Redundant
350W AC
Platinum
82.0%
90.0%
94.0%
91.0%
550W AC
Platinum
82.0%
90.0%
94.0%
91.0%
Non-redundant
350W AC
Bronze
N/A
85.0%
85.0%
85.0%
Find power supply and additional environmental specifications for the R320 in Appendix A.
Thermal and acoustics
Optimized thermal management makes the PowerEdge R320 cool and quiet. Benefiting from smart
cooling fan speed control, the R320 can keep both high performance and good acoustics across a
wide range of ambient temperatures from 10°C to 35°C (50°F to 95°F) and to extended ambient
temperature ranges (see Table 26). Operating environments for the R320 can vary from the data
center to general-use spaces. In a typical configuration, the R320 is suitable for an open office
environment.
Thermal design
The thermal design of the PowerEdge R320 reflects the following:
 Multiple sensors are monitored for thermal feedback control: The PowerEdge R320
dynamically controls system cooling fan speed based on responses from component
temperature sensors, including processors, HDDs, DIMMs, storage cards and the inlet ambient

Dell PowerEdge R320 Specifications

General

Bus type	QPI
Stepping	M1
FSB Parity	No
Scalability	2S
Processor code	SR0LS
Processor cache	10 MB
Processor cores	4
Processor model	E5-2403
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2400
Processor socket	LGA 1356 (Socket B2)
Processor codename	Sandy Bridge EN
Motherboard chipset	Intel C600
Processor frequency	1.8 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	45 x 42.5 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	AVX
Thermal Design Power (TDP)	80 W
Number of processors installed	1
Maximum number of PCI Express lanes	24
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25 GB/s
Maximum internal memory supported by processor	375 GB
HDD size	3.5 \
HDD speed	7200 RPM
HDD capacity	1000 GB
HDD interface	Serial ATA
Optical drive type	DVD-RW
Total storage capacity	2000 GB
Maximum storage capacity	16 TB
Number of HDDs installed	2
Memory slots	6x DIMM
Internal memory	4 GB
Memory clock speed	1333 MHz
Maximum internal memory	96 GB
Cabling technology	10/100/1000Base-T(X)
PS/2 ports quantity	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
PCI Express slots version	3.0
Power supply	350 W
Compatible operating systems	Microsoft Windows Server 2012 \\r Microsoft Windows Server 2012 Essentials\\r Microsoft Windows Server 2008 R2 \\r Novell SUSE Linux Enterprise Server\\r Red Hat Enterprise Linux
Sustainability certificates	ENERGY STAR
Chassis type	Rack (1U)
Processor ARK ID	64615
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Width	- mm
