Dell Precision 7550 User Manual

Power-adapter port
Removing the power-adapter port
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the heat-sink assembly.
About this task

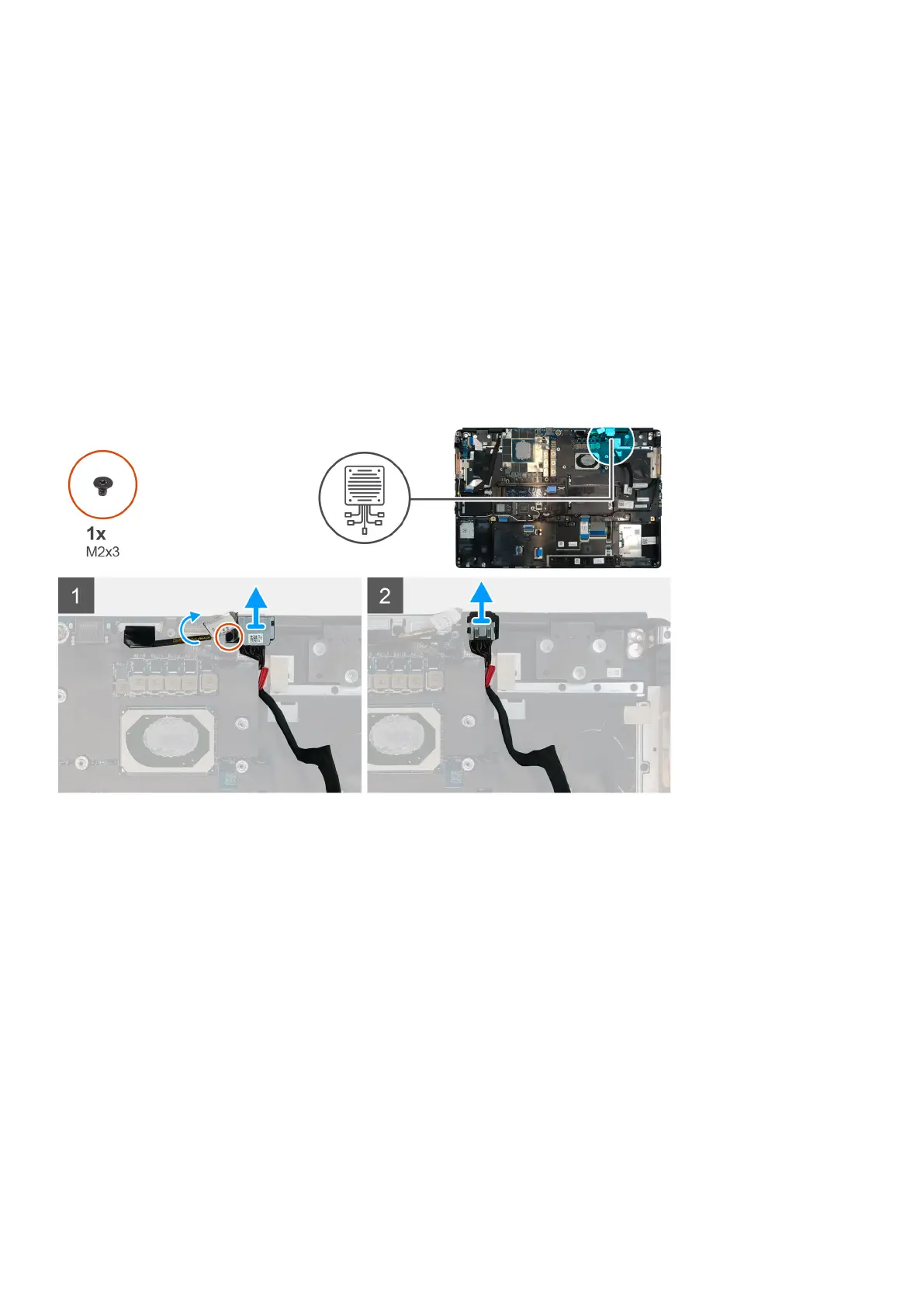

The figure indicates the location of the power-adapter port and provides a visual representation of the removal procedure.
Steps
1. Remove the (M2x3) screw that secures power-adapter cable bracket.
2. Remove the power-adapter cable bracket from the computer.
3. Lift the power-adapter port from its slot on the palmrest.
4. Slide the power-adapter cable towards the rear side of the computer to remove the cable from the computer.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the power-adapter port and provides a visual representation of the installation procedure.
Disassembly and reassembly
45

Dell Precision 7550 Specifications

General

Wireless	Intel Wi-Fi 6 AX201, Bluetooth 5.1
Processor Options	Up to Intel Xeon W-10885M, 8 Core, 16MB Cache, 2.40 GHz up to 5.30 GHz Turbo, 45W, vPro Up to Intel Core i9-10885H, 8 Core, 16MB Cache, 2.40 GHz up to 5.30 GHz Turbo, 45W, vPro
Graphics	NVIDIA Quadro RTX 5000, RTX 4000, RTX 3000
Display	15.6-inch, FHD (1920 x 1080) up to UHD (3840 x 2160), IPS
Memory	Up to 128GB DDR4
Storage	Up to 4TB PCIe SSD
Operating System	Windows 10 Pro, Ubuntu Linux
Ports	2x Thunderbolt 3 (USB Type-C), HDMI 2.0, SD card reader
Battery	6-cell 95Whr
