Dell PowerEdge R210 II Technical Guide 17
4.5 Power Button LED
All Dell PowerEdge servers have a green LED integrated in the power button which indicates the
system’s power state.

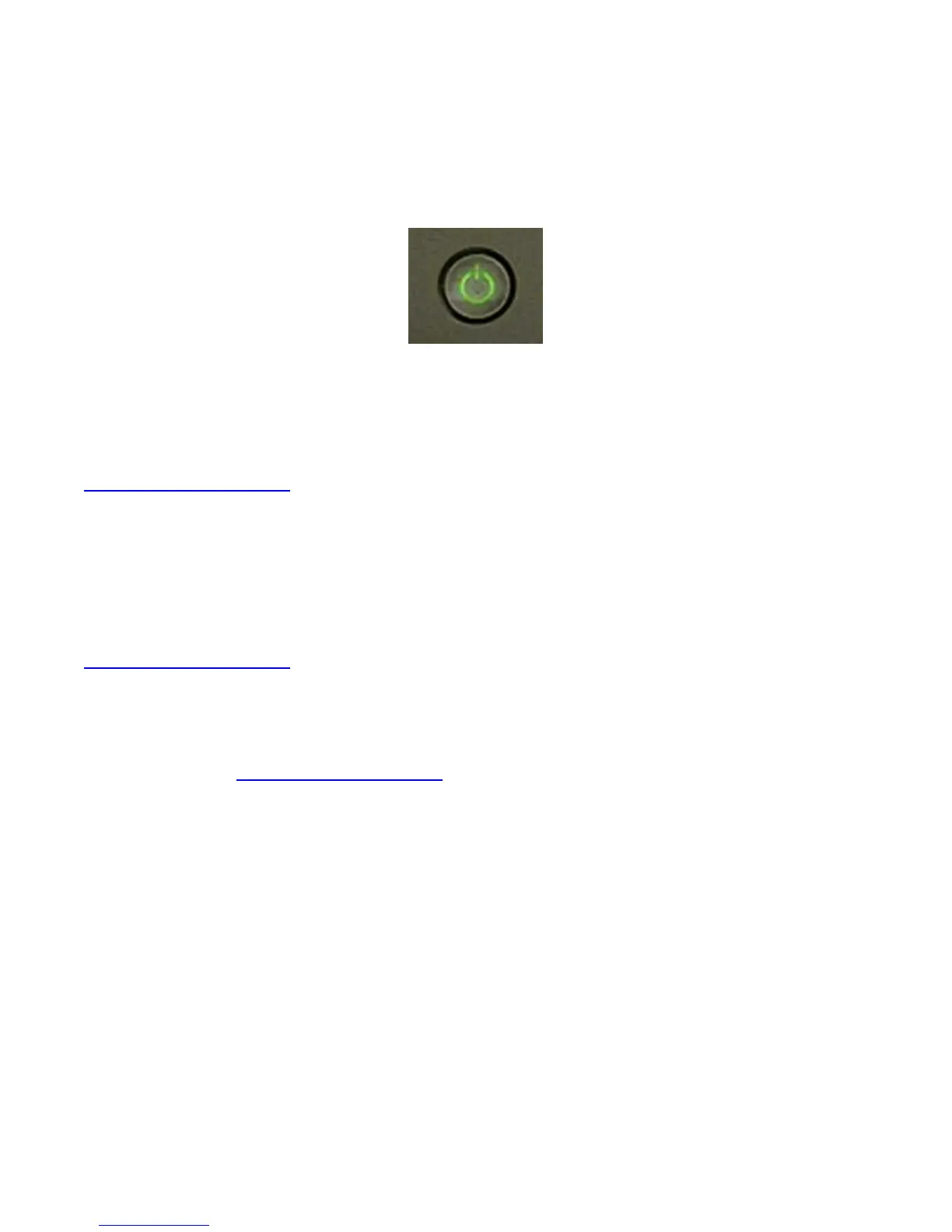

Figure 5. Power Button
See the About Your System chapter of the PowerEdge R210 II Owner’s Manual on
Dell.com/Support/Manuals for more information.
4.6 System Status ID
The System Status ID indicators are two LEDs—one on the front panel of the system and one on the
back panel. These LEDs indicates the system state.
See the About Your System chapter of the PowerEdge R210 II Owner’s Manual on
Dell.com/Support/Manuals for more information.
4.7 NIC Indicators
See the NIC Indicator Codes section in the About Your System chapter of the PowerEdge R210 II
Owner’s Manual on Dell.com/Support/Manuals for more information.
4.8 Internal Chassis Views
Figure 6 shows the internal view of the PowerEdge R210 II server.
