3. Follow the steps to remove the bezel:
a. Pry the front panel retention clips away from the chassis.
b. Release the hooks on the opposite edge of the bezel from the chassis.
c. Remove the bezel from the computer.

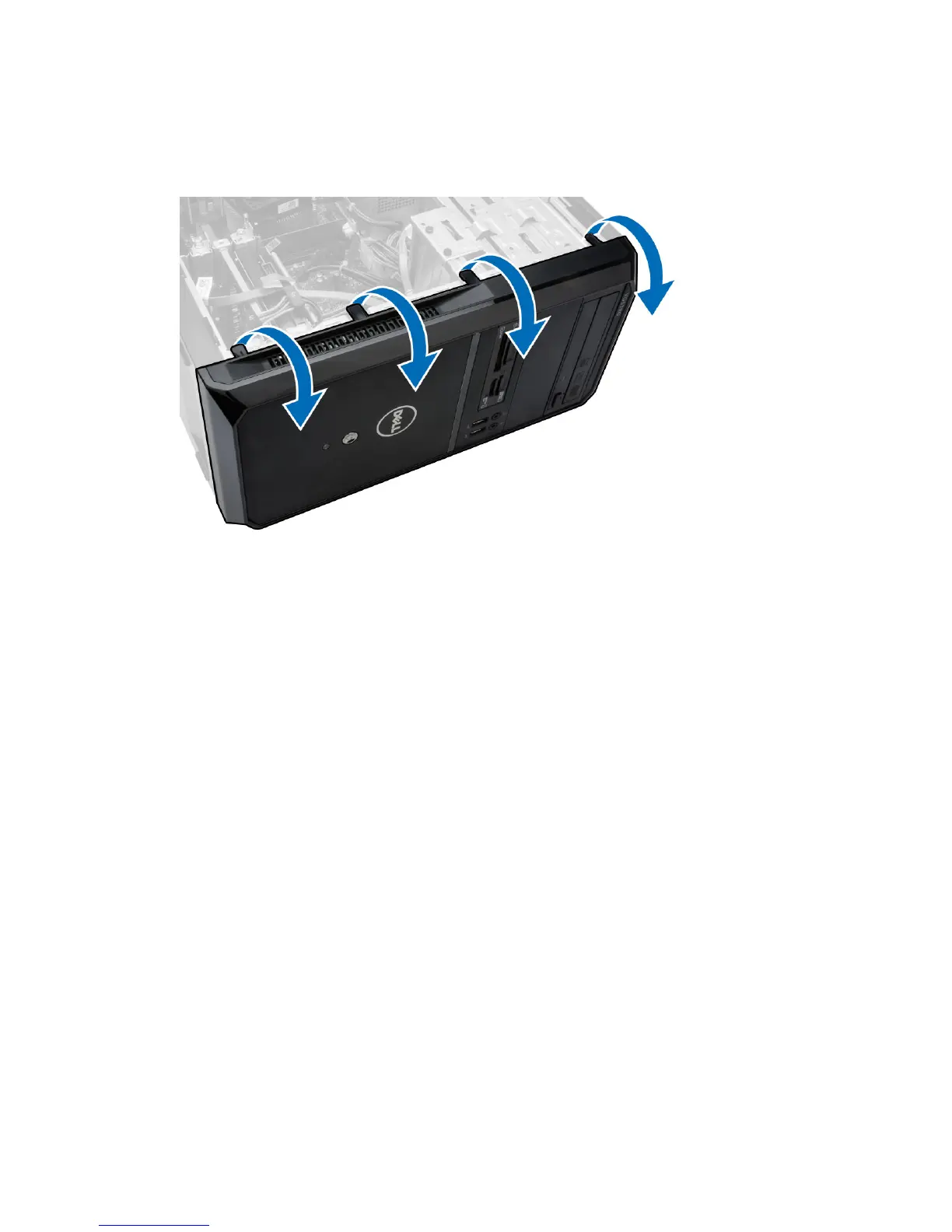

Installing the Bezel
1. Place the hooks on the notches in the computer.
2. Rotate the front bezel towards the computer.
3. Press the front bezel until the tabs snap in to place.
4. Install the cover.
5. Follow the procedures in After Working Inside Your Computer.
Removing the Hard Drive
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
• cover
• bezel
10
