6. Install the:
• bezel
• cover
7. Follow the procedures in After Working Inside Your Computer.
Removing the Optical Drive
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
• cover
• bezel

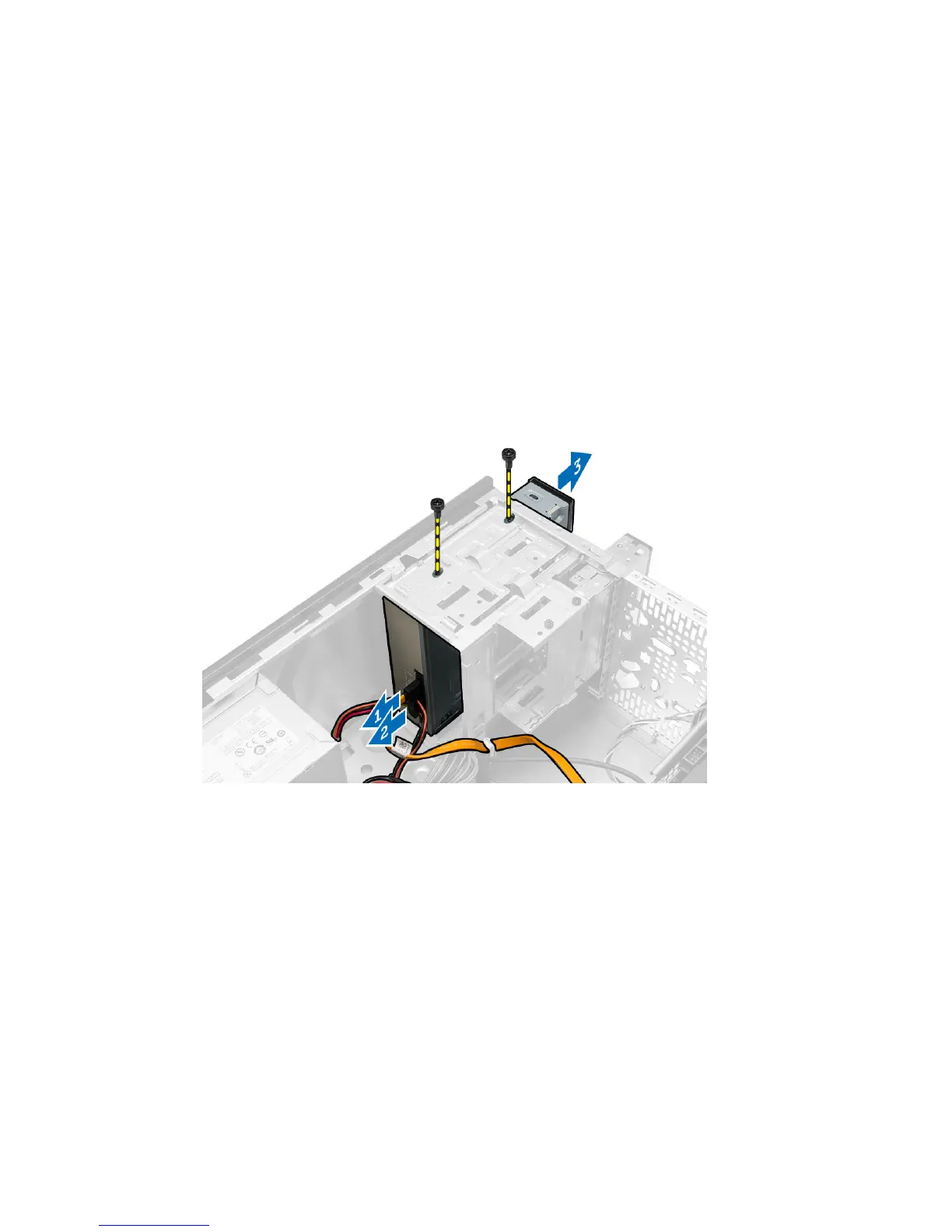

3. Follow the steps to remove the optical drive:
a. Disconnect the data cable [1] and power cable [2] from the optical drive.
b. Remove the screws that secure the optical drive and then push the optical drive towards the front
of the computer.
c. Remove the optical drive from the computer [3].
Installing the Optical Drive
1. Push the optical drive into the computer until it snaps into place.
2. Install the screws that secure the optical drive.
3. Connect the data cable and power cable to the optical drive.
4. Install the:
• bezel
• cover
5. Follow the procedures in After Working Inside Your Computer.
12
