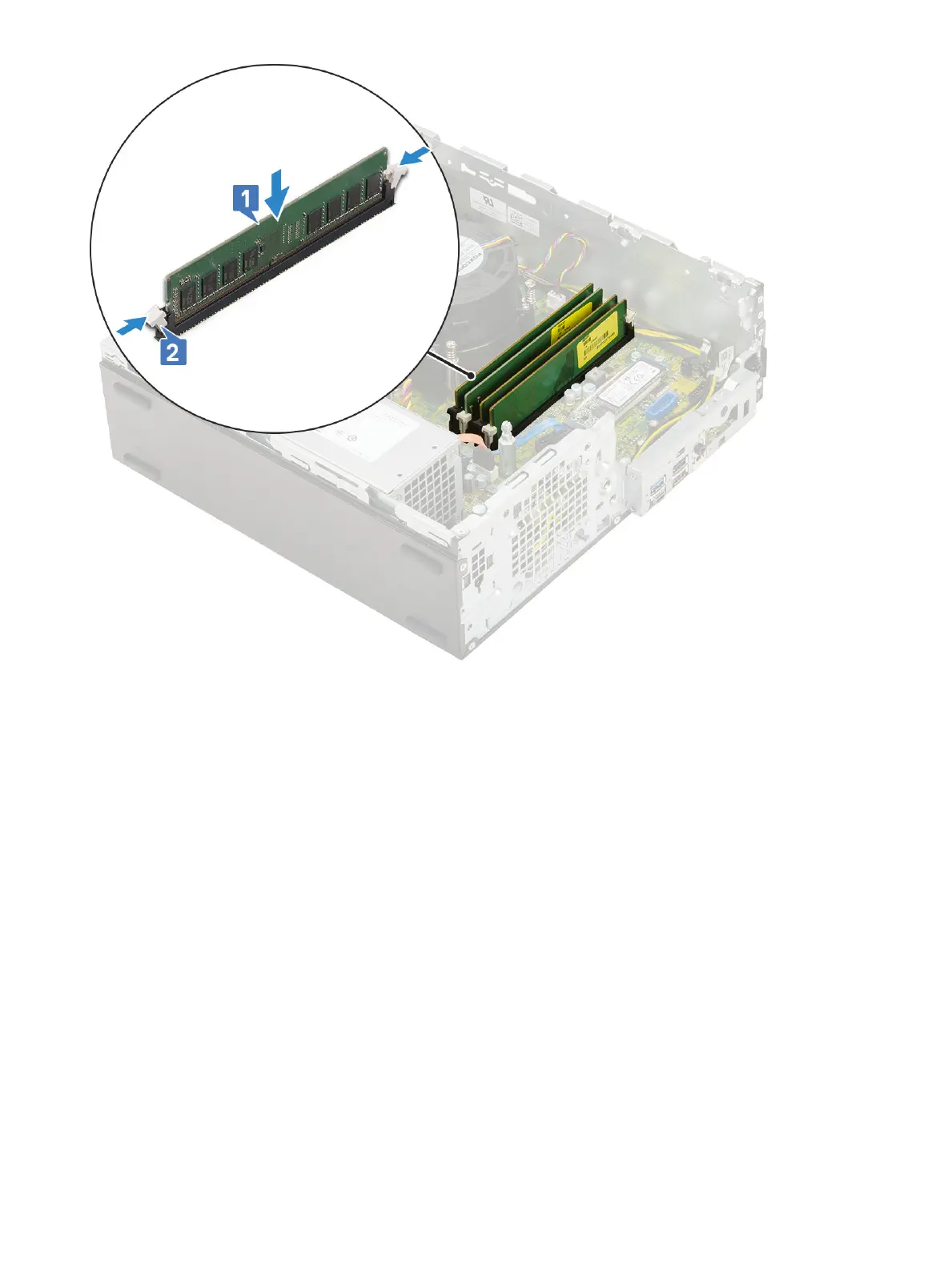

4 Install the:
a Hard drive and optical drive module
b HDD assembly
c Front bezel
d Side cover
5 Follow the procedure in After working inside your computer.
Heatsink fan
Removing heat sink fan
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Side cover
b Front bezel
c HDD assembly
d Hard drive and optical drive module
3 To remove the heat sink fan:
a Disconnect the heat sink fan cable from the connector on the system board [1].
b Remove the 3 screws that secure the heat sink fan to the heat sink [2].
c Lift the heat sink fan away from the system [3].
