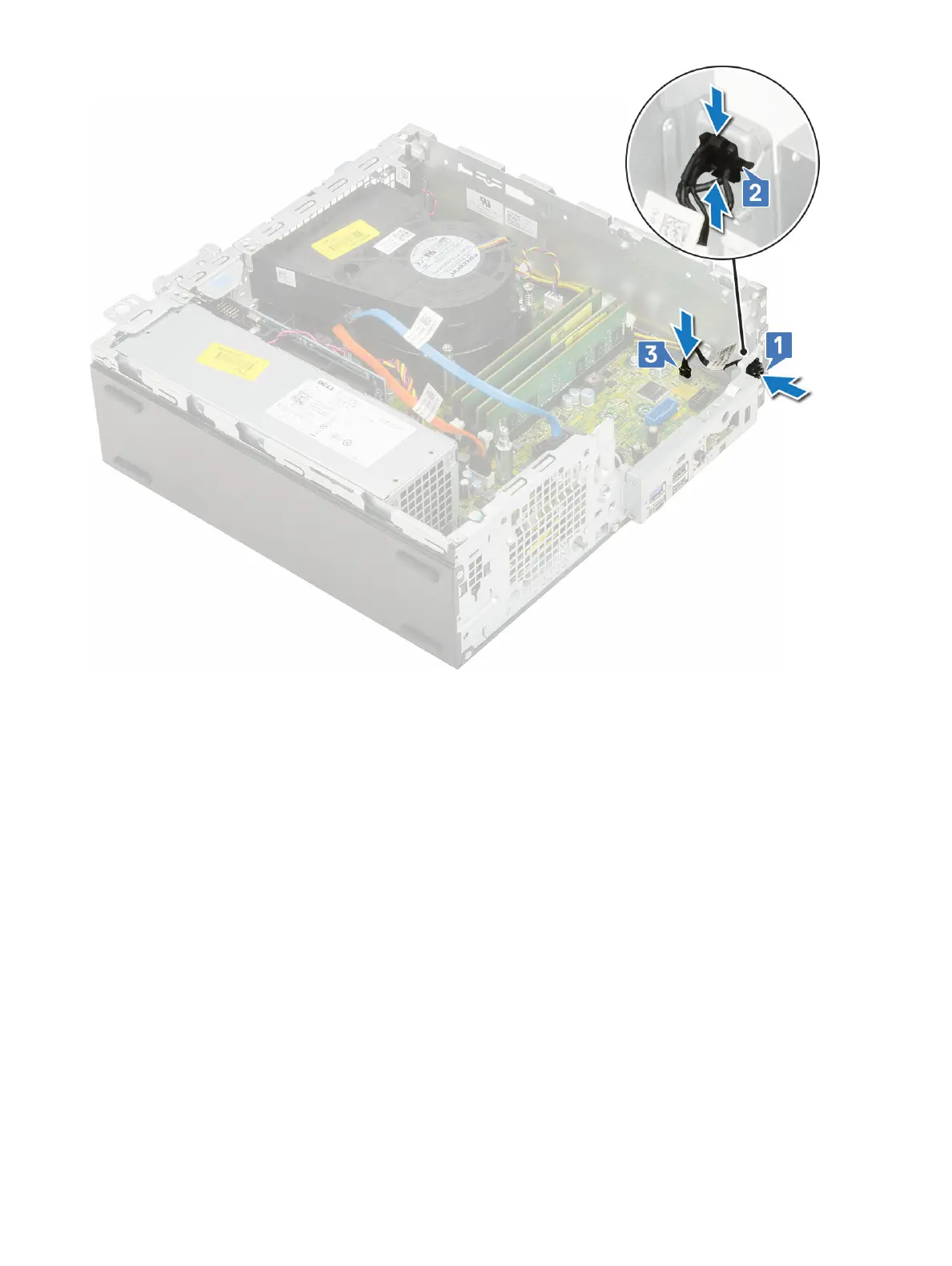

3 Install the:
a Hard drive and optical drive module
b HDD assembly
c Front bezel
d Side cover
4 Follow the procedure in After working inside your computer.
Processor
Removing processor
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Side cover
b Front bezel
c HDD assembly
d Hard drive and optical drive module
e Heat sink fan
f Heat sink
3 To remove the processor:
a Release the socket lever by pushing the lever down and out from under the tab on the processor shield [1].
52
Removing and installing components
