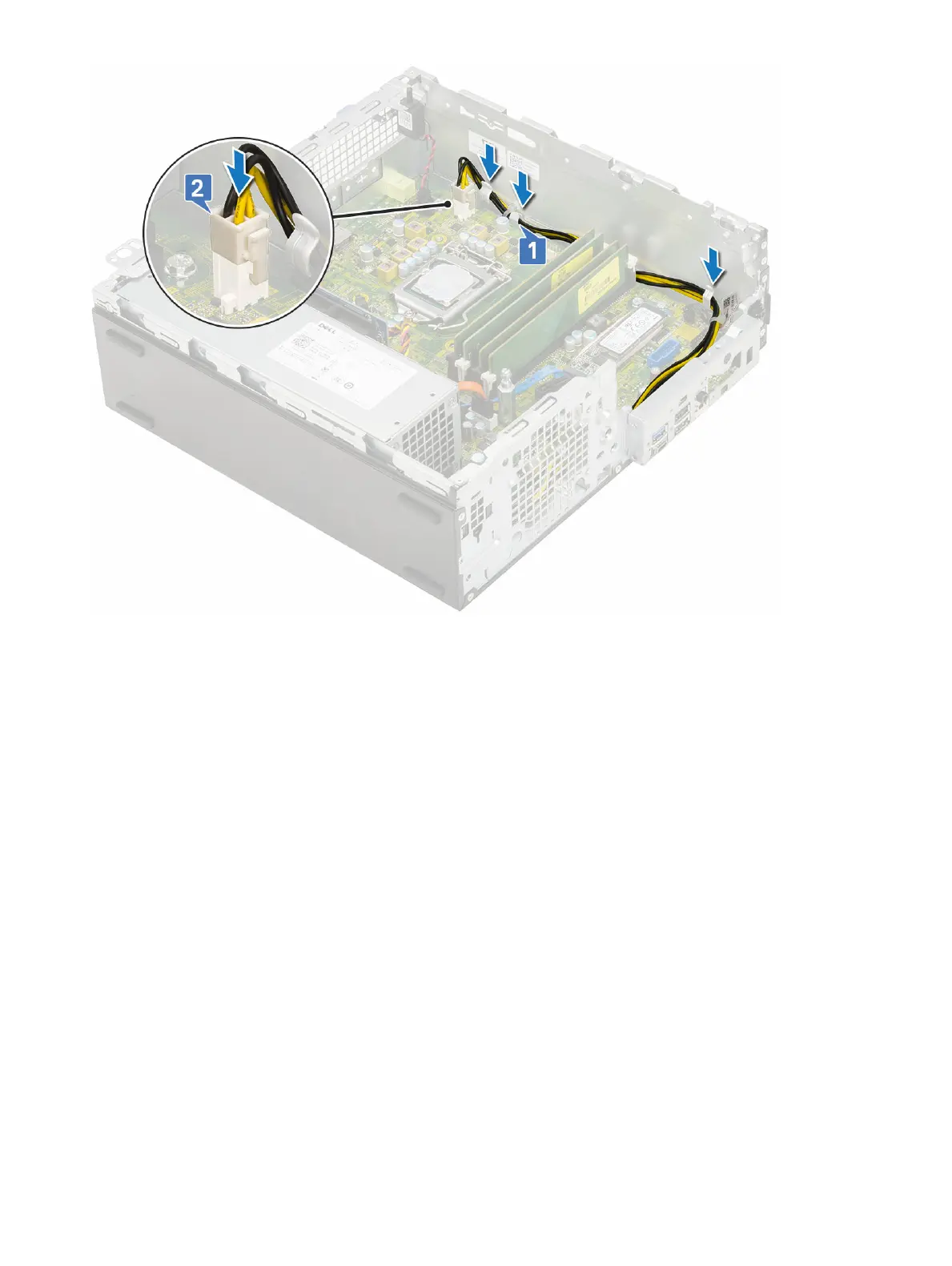

7 Install the:
a Heat sink
b Heat sink fan
c Hard drive and optical drive module
d HDD assembly
e Front bezel
f Side cover
8 Follow the procedure in After working inside your computer.
Speaker
Removing speaker
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Side cover
b Front bezel
c HDD assembly
d Hard drive and optical drive module
e Heat sink fan
f Heat sink
g PSU
3 To remove the speaker:
a Disconnect the speaker cable from the connector on the system board [1].
60
Removing and installing components
